High Efficiency Fire Tube Steam Boiler Generating For Food Making
High Efficiency Fire Tube Steam Boiler Generating For Food Making
Specifications
Brand Name :
Yuanda
Model Number :
WNS
Certification :
ISO9001-2008
Place of Origin :
Henan, China
MOQ :
1 set
Price :
Depend on boiler model
Payment Terms :
L/C, D/A, D/P, Western Union, T/T, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
20 working days after payment
Packaging Details :

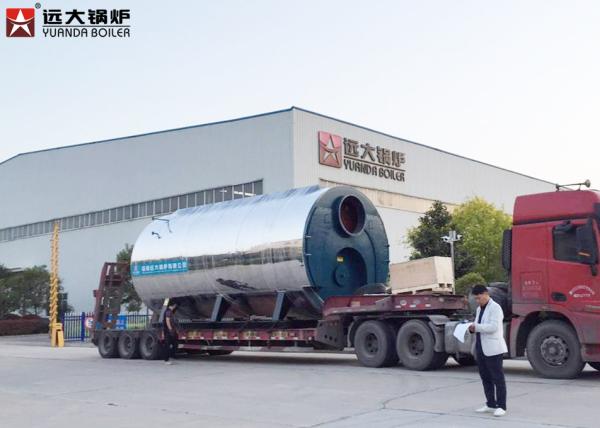

Our company has cooperated with professional transportation team for the handing the land loading transport
Product name :
High Quality Oil Steam Boiler Steam Generating For Food Making
Style :
Horizontal
Dimension :
Depends on capacity
Operation type :
Automatic
Delivery mode :
Packaged
After-sales Service :
available to service overseas
Boiler capacity :
0.5ton - 30ton
Boiler pressure :
1.25MPa,1.5MPa,2.0MPa
Description

High Quality Oil Steam Boiler Steam Generating For Food Making

This series boiler is three return fire tube steam boiler.It equipped with good performance burner and advanced techniques.The burning control,water feed,programs run,etc,is full automatic.This fantasy boiler is safe and reliable,and also has the advantage of compact structure,simple operation,easy installation,high efficiency,less pollution and noise,etc.

Features

1. Yuanda patented technology: 100% completely butt welding, mini stress and reliable quality.
2. Large diameter corrugated furnace: Combustion chamber is composed by largediameter full corrugation furnace, big combustion space.
3. High steam quality: Large steam space volume and enough height of the net distance between steam water interface and steam outlet.
4. Advanced automatic control: Boiler controller use Siemens/Delixi electrical element.
5. Multifunction safety explosion proof equipment: Boiler rear panel is equipped with explosion proof equipment which connected with furnace.

Technical Parameter

Boiler model Rated capacity Rated pressure Rated Feed temp. Rated Steam temp. Fuel consumption Thermal efficiency Dimensions
Light oil Heavy oil
t/h Mpa ℃ ℃ kg/h kg/h % mm
WNS1-1.0-Y(Q) 1 1 20 184 65.5 67.3 91 3561×1690×1910
WNS 2-1.25- Y(Q) 2 1.25 20 194 129.6 132.2 92 4111×1950×2199
WNS3-1.25-Y(Q) 3 1.25 20 194 192 195 92.1 4330×2248×2564
WNS4-1.25- Y(Q) 4 1.25 20 194 256 261.9 93 4732×2150×2448
WNS5-1.25- Y(Q) 5 1.25 20 194 318 322 93 5970×2360×2796
WNS6-1.25- Y(Q) 6 1.25 20 194 380 390.6 93.2 5500×2600×2990
WNS8-1.25- Y(Q) 8 1.25 105 194 503 517 93.5 6450×2800×3200
WNS10-1.25- Y(Q) 10 1.25 105 194 628 643 93.5 6800×2900×3394
WNS15-1.25- Y(Q) 15 1.25 105 194 940 965 93.5 7150×3200×3540
WNS20-1.25- Y(Q) 20 1.25 105 194 1250 1301 93.5 8200×3400×3826

This is just part of the product parameters,if you want to know more detailed parameters,please contact us.

Boiler advantages

1. Beautiful outlook and convenient size.

2. High steam quality and sufficient steam output.

3. Long using life, more than 25 years.

4. Running safe and reliable.
