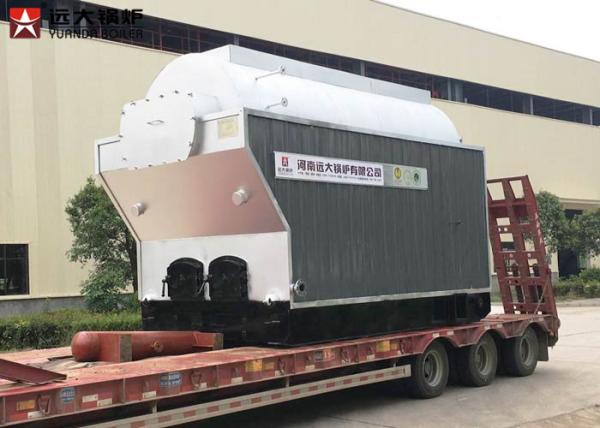

Travelling Chain Grate Steam Tube Boiler 4 Ton Wood Chips Boiler Steam Output
Travelling Chain Grate Steam Tube Boiler 4 Ton Wood Chips Boiler Steam Output
Specifications
Brand Name :
Yuanda
Model Number :
DZH
Certification :
CE,ISO9001,BV
Place of Origin :
Henan, China
MOQ :
1set
Price :
Depends on boiler capacity
Payment Terms :
D/P, T/T, L/C, D/A, Western Union, MoneyGram
Supply Ability :
200sets per month
Delivery Time :
15 working days or less
Packaging Details :
Professional and safe transport packaging and wooden box for boiler accessories.
Product name :
4Ton Wood Chips Boiler Steam Output With Travelling Chain Grate Steam Boiler
Boiler work :
Automatic feeding chain grate
Boiler capacity :
4000kg,4ton
Material :
Q345r
Boiler type :
Horizontal single drum boiler
Structure :
Water-fire tube
Landing time :
15 working days or less
Available fuel :
Ricehusk.wood pellet,sawdust,woodchips
Description

Wood Chips Boiler Steam Output With Travelling Chain Grate Steam Boiler

The DZL new design water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.

Boiler advantages

1. Sufficient and Steady Capacity
With efficient diabatic spirally corrugated tube, it is designed by using heat transfer and flow resistance technologies of Harbin Institute of Technology. The boiler’s actual capacity is 10-15% higher than name plate capacity: As the physical dimension and smoke speed of the spirally corrugated tube are rational, and the spirally corrugated tube doesn’t form soot or wear when the boiler normally operates, the boiler’s capacity and heat efficiency don’t reduce with the extension of operating time;
2. Rapid Warming and High Heat Efficiency
The main heating surface is installed in the shell, so it doesn’t leak cold air to the smoke side, and nearly a half of shell surface is heated. The boiler’s heating up time is one third shorter than other furnaces, and heat efficiency is the highest in various furnaces;
3. Low Original Dust Discharge Concentration, Environmental Protection and Energy Conservation
It uses new arch and hearth with large volume, the rear of the hearth has a dust separation reversing chamber, and the unburned dust particles fall to the hearth for secondary combustion, corresponding to primary dedusting in the furnace. Therefore, it ensures that the original dust discharge concentration is lower than national permissible value, reducing fuel consumption, and protecting the environment;
4. High Steam Quality
The optimally designed feeding apparatus reduces overhigh water level in shell high temperature zone due to overheat; the optimally designed steam separator facilitates vapour gravity separation, and makes the steam humidity lower than 1%, obviously lower than national standard of 4%;
5. Strong Water Quality Adaptability
By adopting the advanced water circulation technology, it improves water circulation speed of high temperature zone, increases the flow of bottom water, and avoids sundries deposition and scaling, with stronger water quality adaptability, reducing fuel consumption, and improving operating time;

Boiler technical parameter sheet

Boiler Model Capacity Pressure Feed water temp. Steam temp. Active grate area Design efficiency Delivery Mode
t/h MPa ℃ ℃ ㎡ %
DZL1-1.0-AII 1 1 20 184 1.85 80 Package
DZL2-1.25-AII 2 1.25 20 194 3.4 80 Package
DZL4-1.25-AII 4 1.25 60 194 5.18 80 Package
DZL6-1.25-AII 6 1.25 60 194 7.55 80 Package
DZL10-1.25-AII 10 1.25 105 194 12 80 Assembled
DZL15-1.25-AII 15 1.25 105 194 18 81 Assembled
DZL20-1.25-AII 20 1.25 105 194 22.9 81 Assembled and Semi-Assembled
DZL30-1.25-AII 30 1.25 105 194 27.5 81 Semi-Assembled
DZL40-1.25-AII 40 1.25 105 194 34.5 81 Semi-Assembled

Part of boiler details, know more please contact shirley@yuanda-boiler.com

Boiler application fields

Beverage factory, Food processing industry, Textile factory, Printing and dyeing factory, Garment factory, Paper mill, Plywood factory, Poultry feed mill, Refinery, Rice mill, Noodle factory, Sugar mill, Wood processing industry, Carton factory, Cardboard factory, Dyeing mill, Leather factory, Packaging industry, Central heating, Greenhouse, Hospital, Rubber factory, Slaughterhouse, Soap factory, Bitumen plant, etc.

Export countries for reference

export to Honduras DZL4-1.25-T DZL model boiler is a coal/biomass fired steam boiler, high quality steam output for usage, single drum with water-fired tube structure, Our Hoduras customer need the 8 ton/hour steam boiler into using. This model boiler is one with chain grate, automatic fuel feeding and running, working life can reach 25 years, sufficient steam supply.
export to Vietnam SZL6-1.25-T SZL4-1.25-T Biomass is the renewable energy, it's a excellent fuel to fire as for some area where has rich biomass resource. SZL model boiler, two drums with water tube , there is large furnace for fuel burning, improve thermal efficiency. Biomass fuel can be wood chips, bagasse, ricehusk, peanut shell, corncob,etc. SZL model boiler is available to 1ton-40ton steam output per hour.
export to Côte d'Ivoire SZL4-1.25-T Our Côte d'Ivoire customer bought one set 8ton biomass fired steam boiler, work for their Textile factory.
export to Mongolia DZL4-1.25-AII DZL coal fired steam boiler will be deliveried to Mongolia, our customer has a animal food making factory, need this boiler work for purposed process.
export to Senegal DZL4-1.25-T DZL 4ton biomass fired export to Senegal
export to South Africa DZL4-1.25-T DZL 4ton biomass fired will be deliveried to South Africa, they came to visit our factory before.
