Oil Fired Steam Boiler Diesel Boiler 200 Kg 500Kg Hr Using In Food Industry

1. General introduction

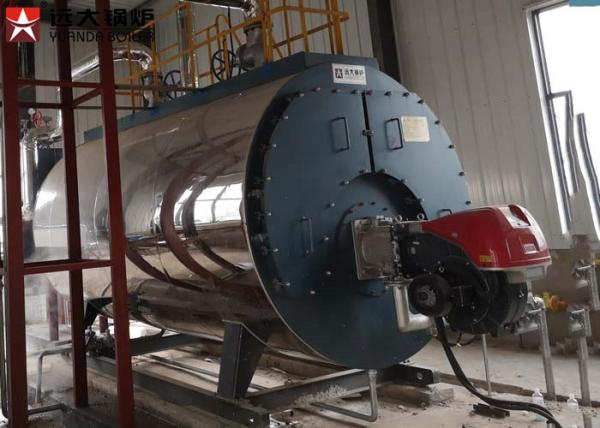

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.

1. Automatic fuel (oil) steam boiler using a horizontal wet back combustion full, efficient threaded pipe with sound insulation outsourcing design, thermal efficiency up to 95%, the product design, rational structure, good process performance, so that the products with extraordinary excellent quality.

2. Adopting the latest technology, it is designed with a combustion chamber with large volume. It is equipped with a world-known burner, making the combustion more sufficient and ensuring higher efficiency and lower failure rate.
3. It adopts advanced corrugated furnace pipe structure, increasing the heat surface area, and satisfying free expansion of the furnace pipe after heating.
4. It uses a spirally corrugated tube, strengthening heat transfer and eliminating welding stress.
5. It adopts wet back structure with high reliability and low maintenance cost.
6. It has protective functions of overtemperature, overpressure, water shortage, leakage detection and flameout, ensuring safe and reliable operation.

2. Boiler technique parameter

3. Advantages of boiler running

​1. Patent design, strong output, long service life
2. Stable operation, low maintenance rate
3. Large furnace space, strong load adaptability
4. Simple structure, easy to install and maintain
5. Low water quality requirement, big water volume
6. Multiple protection device, safe and reliable operation
7. Large combustion chamber, Automatic and stable operation

4. Boiler projects

5. Project Pictures

6. Application of steam boiler

1. Food industry: steam can be used for food disinfection, cooking; Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;
