Automatic Running Oil Fired Hot Water Boiler 11 Bar Working Pressure Fit Greenhouse
Automatic Running Oil Fired Hot Water Boiler 11 Bar Working Pressure Fit Greenhouse
Specifications
Brand Name :
Yuanda Boiler
Model Number :
WNS
Certification :
ISO9001,CE,SGS
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Be negotiated
Payment Terms :
D/P, L/C, T/T, D/A, Western Union
Supply Ability :
1000 sets per year
Delivery Time :
20-30 working days
Packaging Details :
Plywood case professional packaging transportation
Product name :
Oil Fired Hot Water Boiler 5Ton 11Bar Diesel Boilers For Green House
Design fuel :
light oil,diesel, heavy oil
Capacity :
5ton,3500kw
Operation :
Automatic running
Quality :
Strict quality system
Using life :
More than 20 years
Working pressure :
11bar
Safety device :
interlock alarm
Description

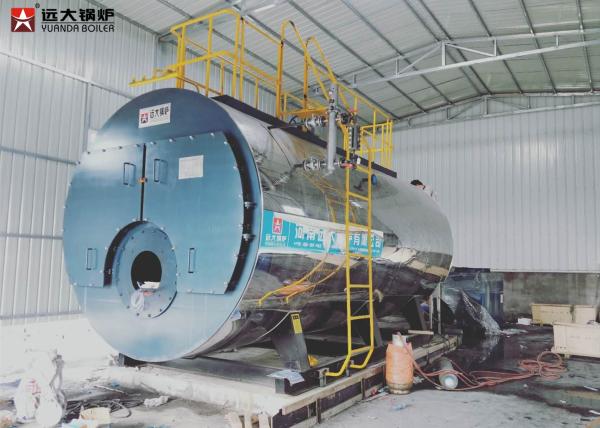

Oil Fired Hot Water Boiler 5Ton 11Bar Diesel Boilers For Greenhouse

General introduction of oil fired hot water boiler

1. WNS series oil Gas fired steam boiler realize high efficient heat transfer, sufficient burning with brand burner, environment protection
2. Adopted international latest technology for big volume combustion room design, and use brand burner machine
3. Corrugated furnace design make large heat transfer area and protect furnace
4. Using spirally corrugated tube , 1-2 faster heat transfer efficiency and remove hidden danger of welding cracks
5. Adopted wet-back structure that can reduce faults rate and maintenance cost
6. Equipped with protection devices for overheating, overpressure, lacking water, leak detection, flameout etc

Advantages of hot water boiler running


1. WNS series oil Gas fired steam boiler realize high efficient heat transfer, sufficient burning with brand burner, environment protection
2. Adopted international latest technology for big volume combustion room design, and use brand burner machine
3. Corrugated furnace design make large heat transfer area and protect furnace
4. Adopted wet-back structure that can reduce faults rate and maintenance cost
5. Equipped with protection devices for overheating, overpressure, lacking water, leak detection, flameout

6. Climate compensation, on-demand heating technology
Considering to the outside temperature and users’ heat demand,boilers could control the water temperature in the support of heat source efficiency automatically so that we achieve the goal of on-demand heating and energy-saving heating.

Supply code of automatic oil fired hot water boiler for laundry

Product name Quantity (set)
1. Boiler main part 1
2. Imported gas/oil burner 1
3. Electric control box 1
4. Valve & Gauge used on boiler main part 1
5. Feeding water Pump 2
6. Smoke chimney 1
7. Water treatment equipment 1
8. Steam distributor 1
The above is standard, other accessories needed contact us for details

Technical parameter of WNS fire tube boiler

Boiler model Capacity Pressure Outlet temp. Steam temp. Fuel consump. Thermal efficiency
Light oil Heavy oil
MW MPa ℃ ℃ kg/h kg/h %
WNS0.7-0.7/95/70-Y(Q) 0.7 0.7 95 70 65.5 67.3 91
WNS1.4-0.7/95/70-Y(Q) 1.4 0.7 95 70 129.6 132.2 92
WNS2.8-0.7/95/70-Y(Q) 2.8 0.7 95 70 256 261.9 93
WNS4.2-0.7/95/70-Y(Q) 4.2 0.7 95 70 380 390.6 93.2
WNS5.6-1.0/95/70-Y(Q) 5.6 1 95 70 503 517 93.5
WNS7-1.0/95/70-Y(Q) 7 1 95 70 628 643 93.5
WNS10.5-1.0/95/70-Y(Q) 10.5 1 95 70 940 965 93.5
WNS14-1.0/95/70-Y(Q) 14 1 95 70 1250 1301 93.5

Automatic Running Oil Fired Hot Water Boiler 11 Bar Working Pressure Fit Greenhouse
