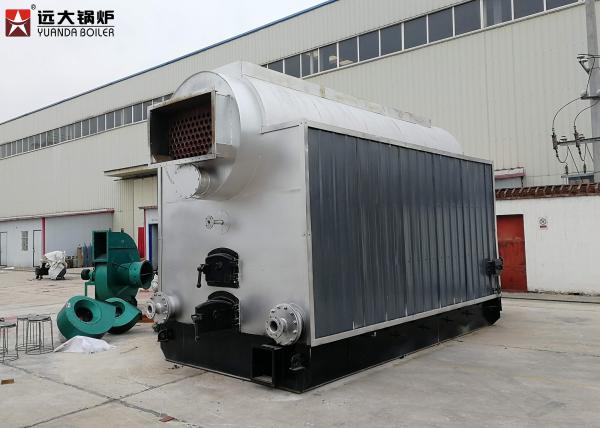

DZL / DZH Industrial Steam Boiler / Water Fire Tube Coal Boiler
DZL / DZH Industrial Steam Boiler / Water Fire Tube Coal Boiler
Specifications
Brand Name :
Yuanda Boiler
Model Number :
DZL/DZH
Certification :
ASME,CE,ISO9001
Place of Origin :
Henan,China
MOQ :
1
Payment Terms :
T/T, D/A, L/C, D/P
Supply Ability :
150 sets per month
Delivery Time :
25 working days after payment
Packaging Details :
Nude package for boiler body,wooden box for boiler accessories.
Price :
Price is negotiable.
Product name :
High Quality Industrial Steam Boiler Water Fire Tube Coal Boiler
Capacity :
1ton to 20ton
Pressure :
1.0MPa,1.25MPa,1.5MPa,etc
Fuel :
Coal,Wood,Charcoal
Operation :
Automatic feeding coal with chain grate
Color :
Red, Silver gray, Customization
Material :
Q345R
Company :
boiler factory established in 1956
Description

High Quality Industrial Steam Boiler Water Fire Tube Coal Boiler

General introduction

There are two types coal boiler.

The DZL/DZH new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.

1. Boiler model:DZL/DZH

2. Boiler capacity:1-20ton/h

3. Pressure: 10bar, 13bar, 16bar, 25bar

4. Steam temperature:184 °c,194°c, 204°c,226°c

5. Fuel:coal,wood, biomass

6. Structure:horizontal water-fire tube, single drum

7. Type:There are two types.One is DZL chain grate stoker automatic feeding fuel and removing dregs type. Another is DZH hand operated moving grate type which needs labour to feed fuel and remove the dregs.

Technical datasheet of coal fired steam boiler

Boiler Model Rated capacity Rated pressure Feed water temperature Steam temperature Exhaust gas temp. Design efficiency Main part weight Delivery Mode
t/h MPa ℃ ℃ ℃ % Ton
DZL1-1.0-AII 1 1 20 184 157 80 14.2 Package
DZL2-1.25-AII 2 1.25 20 194 163 80 23.2 Package
DZL4-1.25-AII 4 1.25 60 194 180 80 28 Package
DZL6-1.25-AII 6 1.25 60 194 166 80 47.6 Package
DZL10-1.25-AII 10 1.25 105 194 151 80 56 Assembled
DZL15-1.25-AII 15 1.25 105 194 161 81 18.8 Assembled
DZL20-1.25-AII 20 1.25 105 194 150 81 19.1 Assembled and Semi-Assembled
DZL30-1.25-AII 30 1.25 105 194 157.6 81 25.6 Semi-Assembled
DZL40-1.25-AII 40 1.25 105 194 162.2 81 19.68 Semi-Assembled

This is just part of the product parameters, if you want to know more detailed parameters of the boiler, please feel free to contact us.

Boiler Accessories of DZL coal fired boiler

Boiler accessories
1. Induced fan 1set
2. Forced fan 1set
3. Electrical control cabinet 1set
4. Valves&Instruments 1set
5. Fire grate reducer 1set
Boiler room equipment
6. Water pump 2sets
7. Steam header 1set
8. Chimney 1set
9. Gas duct 1set
10.Economizer 1set
11.Coal feeder 1set
12.Slag remover 1set
13.Dust catcher 1set
14.Water soften equipment 1set
We can also provide the air preheater,wet scrubber ,transformer according to the customer's requirements.

DZL / DZH Industrial Steam Boiler / Water Fire Tube Coal Boiler
