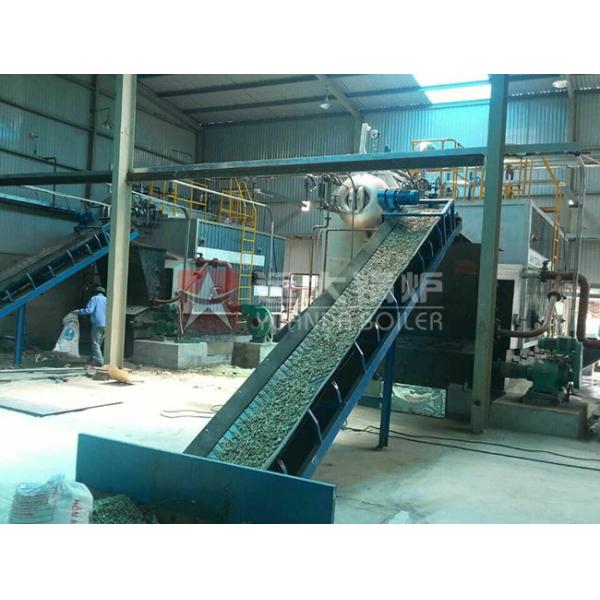

Industrial Water Tube 4 Ton Fuel Rice Husk Steam Boiler For Rice Mill

Brief Introduction:

SZL series boiler is water tube chain grate double-drum boiler. It has has big furnace which has great apply for various type biomass fuel, like wood pellet, rice husk, bagasse, sawdust, etc. This boiler is environmental protection and energy conservation.

Quick Details:
1. Boiler Applied fuel: biomass pellet, wood pellet, wood chip, rice husk,straw, sawdust, paddy, peanut and all other kinds of solid fuel.
2. Boiler Rated capacity: packaged 1 to 8 t/h, assembled 10-20 t/h
3. Boiler Model: SZL
4. Boiler Structure: automatic chain grate, water tube, 3-pass boiler, double drum
5. Boiler efficiency: 83-86%
6. Boiler Output: steam
7. Boiler Rated steam pressure: 1.0Mpa(10bar), 1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar).
8. Boiler Rated steam temperature: 184°C, 194°C,204°C,225°C

SZL Rice Husk Boiler features:

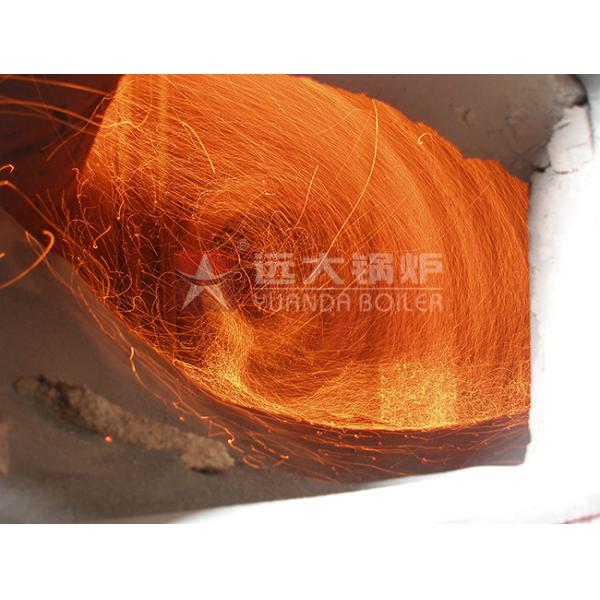

1. The hearth is designed with a cyclone re-burning chamber, and high temperature fume achieves the effects of primary dedusting energy conservation and environmental protection through high speed revolution, mixed combustion and dust separation

2. With a hearth with large volume and strong coal adaptability, it can use various biomass as the fuel.

3. It has large heating surface, rapid boost, sufficient capacity, rapid warming and low energy consumption.

Technique parameter

Application

1. Food industry: steam can be used for food disinfection, cooking; Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;

After-sale service:

1. provide full range of original spare parts.

2. We will send engineers to your local project site to guide the installation and commissioning.

3. Our engineers will held a training for boiler workers to ensure the safe operation.

4. Free maintenance and repair for one year and lifelong service.
