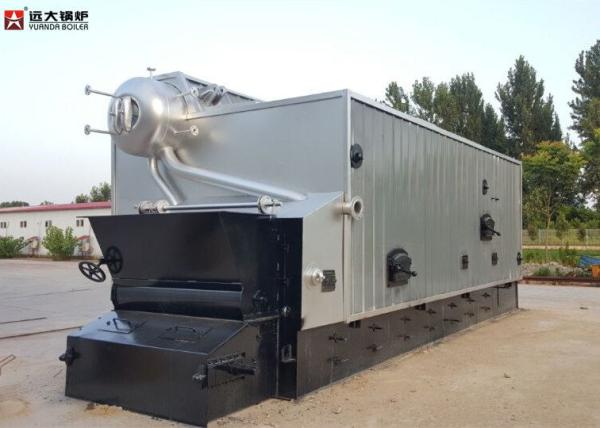

2 Ton Bagasse Fired Steam Boiler / Water Tube Boiler In Paper Mill
2 Ton Bagasse Fired Steam Boiler / Water Tube Boiler In Paper Mill
Specifications
Brand Name :
Yuanda
Model Number :
SZL
Certification :
ISO9001:2008
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Discussed.
Payment Terms :
D/A, D/P, T/T, L/C, Western Union
Supply Ability :
120 sets per month
Delivery Time :
15-25 days after payment
Packaging Details :
Nude packaging for boiler main part and wood box packaging for boiler accessories.
Product name :
2 Ton Bagasse Fired Steam Boiler Water Tube Boiler In Papre Mill
Capacity :
2T,2000KG
Rated steam pressure :
1.25MPa,1.5MPa,2.0MPa
Weight :
2-50ton weight
Work efficiency :
83%
Boiler using life :
about 20 years
Steam temperature :
below 216°C
Material :
Carbon steel plate
Description

2 Ton Bagasse Fired Steam Boiler Water Tube Boiler In Papre Mill

The 2 ton biomass boiler is design structure two drums and D layout. It has larger burning space for the biomass fuel,so there will be a larger efficiency to work.

2 Ton Bagasse Fired Steam Boiler / Water Tube Boiler In Paper Mill

Features of biomass boiler

1. Membrane water walls in two sides of the furnace and chamber efficiently reduce the heat loss.
2. The special designed water-cooling arch keeps the gas in the furnace for longer time and ensures higher combustion efficiency.
3. Longer distance between the front and back shaft of the grate stoker extends more sufficient combustion of the fuel.

Accessories equipments of biomass boiler

Product name Quantity (set)
Boiler Main Part 1
Draft Fan 1
Forced Fan 1
Electric Controller 1
Valve 1
Pressure Gauge 1
Water Pump 2
Smoke Chimney 1
Smoke Ducting 1
Economizer 1
Ceramic-Cyclone 1
Water Treatment Equipment 1

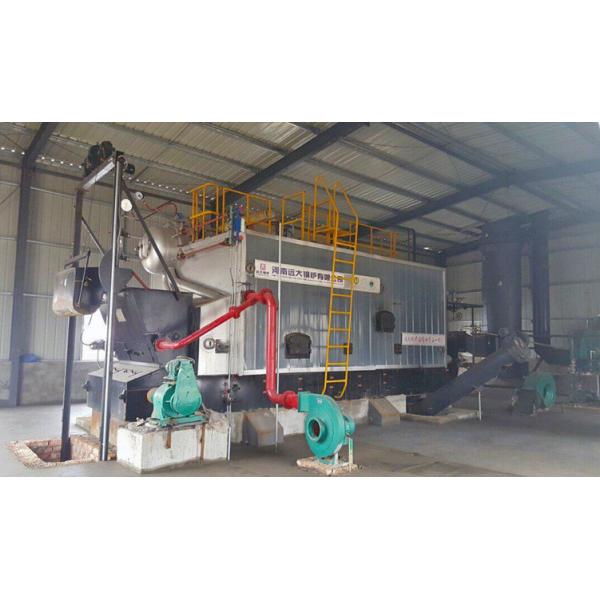

Installation site

We have exported to Bangladesh the 8 ton biomass boiler SZL D type, it is a low cost and convenient operating eco-friendly boiler.The installation image show as follows,

2 Ton Bagasse Fired Steam Boiler / Water Tube Boiler In Paper Mill

Our service

Service before sale:
Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.


Service after sale:
1. Help customer for installation and traing.
2. Regarding to the installation and training, the buyer should take all the correlative charges (accommodation and food , round -trip tickets).
3. Maintenance and repair for one year.
4. Yuanda should provide boiler technical service and operation guidance for whole life long.

2 Ton Bagasse Fired Steam Boiler / Water Tube Boiler In Paper Mill
