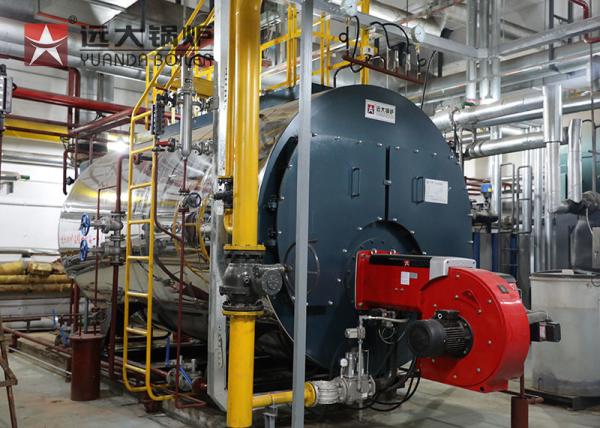

Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing
Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing
Specifications
Brand Name :
Yuanda Boiler
Model Number :
WNS
Certification :
CE,GB,BV
Place of Origin :
Henan China
MOQ :
1set
Price :
Contact for price by email
Payment Terms :
D/A, D/P, T/T, L/C, Western Union
Supply Ability :
200sets per month
Delivery Time :
15 working days after payment
Packaging Details :
Nude packaging for boiler main part and wood box packaging for boiler accessories.
Product Name :
Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing
Cpaicty :
200kg-30 000kg
Working pressure :
0bar-25bar
Steam Temp. :
0-250°C
Structure :
fire tube boiler
Material :
Q235R,Q345R
Model :
Automatic running
Heat efficiency :
98%
Description

Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing

1. Gas Steam Boiler introduction

Gas Steam Boiler is horizontal three pass fire tube wet back full automatic steam boiler. Gas Steam Boiler normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1. Model: WNS
2. Capacity: 200kg/h-20ton/h
3. Design pressure: 1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)
4. Stem temperature:below 224 degree
5. Design fuel: natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil
6. Structure: three pass fire tube wet back

Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing

2. Gas Steam Boiler Technical parameter

Boiler model Capacity Pressure Feed temp. Steam temp. Fuel consump. Thermal efficiency
Light oil Heavy oil City gas
t/h Mpa ℃ ℃ kg/h kg/h m3/h %
WNS1-1.0-Y(Q) 1 1 20 184 65.5 67.3 176 91
WNS 2-1.25- Y(Q) 2 1.25 20 194 129.6 132.2 346 92
WNS3-1.25-Y(Q) 3 1.25 20 194 192 195 510 92.1
WNS4-1.25- Y(Q) 4 1.25 20 194 256 261.9 682 93
WNS5-1.25- Y(Q) 5 1.25 20 194 318 322 87 93
WNS6-1.25- Y(Q) 6 1.25 20 194 380 390.6 1020 93.2
WNS8-1.25- Y(Q) 8 1.25 105 194 503 517 1321 93.5
WNS10-1.25- Y(Q) 10 1.25 105 194 628 643 1654 93.5
WNS15-1.25- Y(Q) 15 1.25 105 194 940 965 2417 93.5
WNS20-1.25- Y(Q) 20 1.25 105 194 1250 1301 3299 93.5

The listed technical parameters are for reference only and can be designed according to different requirements of users.

Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing

3. Advantages of Gas Steam Boiler

(1) High effiency(exceed 92%) and energy saving(save gas 3-5m3/h;save oil 3-5kg/h).
(2) Enough steam output and high quality steam.
(3) Safe and reliable.
(4) Long life span(More than 20 years ).
(5) Intelligent and fully automatic.
(6) Easy inspection and maintenance.

Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing

4. Gas Steam Boiler application fields

1. Food industry: steam can be used for food disinfection, cooking; Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;

Fire Tube Three Pass Gas Steam Boiler 4 ton/hour for Food Processing

5. Gas Steam Boiler projects all over the world

export to Chile WNS2-1.0-Y(Q)

2ton gas/oil fired steam boiler export to Chile
export to Pakistan WNS5-1.6-Y(Q)

5ton diesel fired steam boiler export to Pakistan
export to Egypt WNS10-1.5-Y

7MW /10ton Natural gas fired steam boiler export to Egypt
export to Ghana WNS1.5-1.0-Y

500kg natural gas fired steam boiler will work for customer's soap factory
export to Cambodia WNS15-1.25-Y(Q)

Gas oil fired steam boiler is very popular, Vietnam customer uses it for the clothes factory, Ethiopia customers uses it for food processing factory, Bangladesh customer uses it for the milk processing factory, African customer use it for the wood processing factory, etc.
export to Tanzanian WNS10-1.25-Y(Q)
export to Saudi Arabia WNS8-1.25-Y(Q)
export to New Zealand WNS0.5-1.0-Q

Natural gas fired steam boiler will work for honey making factory, our New Zealand customer bought one 500kg steam boiler for food making industry.
export to Bangladesh

WNS4-1.25-Y(Q)

WNS1-1.0-Y(Q)

Fire tube steam boiler, fuel can be natural gas,lpg,cng,light oil, heavy oil. This model boiler can be used for textile factory,very convenient and easy-operation. Our boiler can ensure 100% running safety and no-problem working. Some of of customer use it for food making, like rice mill, wine factory, sauce making factory,etc. There are many production technology process, need steam boiler to carry out.
export to Thailand LHS0.5-0.7-Y(Q)

LHS vertical steam boiler is a small steam output machine, the steam generation is 0.5t per hour, fuel is natural gas, steam pressure is 0.7Mpa, steam temperature can be reached to 184°C, and pressure can be customized. This model boiler generally apply to little produce process, such as a small food processing store.
