5000Kg / Hr Gas Fired Boiler Wet Back Type WNS Series , Fuel Steam Boiler
5000Kg / Hr Gas Fired Boiler Wet Back Type WNS Series , Fuel Steam Boiler
Specifications
Brand Name :
Yuanda
Model Number :
WNS
Certification :
ISO 9001
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Depend on boiler model
Payment Terms :
D/P, D/A, L/C, T/T, Western Union
Supply Ability :
150 sets monthly
Delivery Time :
about 20 working days after payment
Packaging Details :
Professional transport cooperate company.
Boiler type :
steam boilers
Boiler color :
customized
Rated working pressure :
1.0MPa,1.5MPa
Design fuel :
naturaL gas,lpg
Type :
Horizontal
Boielr structure :
fire tube steam boiler
Steam temprature :
184°c, 194°c, 204°c, 226°c
Rated steam capacity for steam boilers :
5000 kg/h
Description

Wet Back Type Fire Tube Steam Boiler 5000Kg / Hr Gas Fired Boiler

1. Product Introduction

Automatic fuel (gas) steam boiler using a horizontal wet back combustion full, efficient threaded pipe with sound insulation outsourcing design, thermal efficiency up to 94%, the product design, rational structure, good process performance, so that the products with extraordinary excellent quality.

With full waveform furnace, with good thermal stretchable; full pull side butt welding technology, reducing the furnace temperature stress; tube and tube plate connected by welding form after the first expansion, eliminate corrosion problems, extend the life of the boiler; threaded pipe heat exchanger, to improve the heat transfer coefficient of the boiler.

2. Advantages

(1) WNS series oil Gas fired steam boiler realize high efficient heat transfer, sufficient burning with brand burner, environment protection
(2) Adopted international latest technology for big volume combustion room design, and use brand burner machine
(3) Corrugated furnace design make large heat transfer area and protect furnace
(4) Using spirally corrugated tube , 1-2 faster heat transfer efficiency and remove hidden danger of welding cracks
(5) Adopted wet-back structure that can reduce faults rate and maintenance cost
(6) Equipped with protection devices for overheating, overpressure, lacking water, leak detection, flameout etc

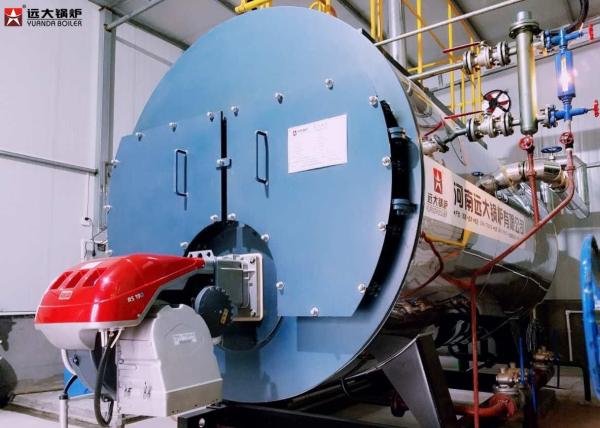

5000Kg / Hr Gas Fired Boiler Wet Back Type WNS Series , Fuel Steam Boiler

3. Technical Parameter

Boiler model Rated capacity Rated pressure Rated Feed temp. Rated Steam temp. Thermal efficiency Weight Dimensions
t/h Mpa ℃ ℃ % ton mm
WNS1-1.0-Y(Q) 1 1 20 184 91 4.3 3561×1690×1910
WNS 2-1.25- Y(Q) 2 1.25 20 194 92 7.2 4111×1950×2199
WNS3-1.25-Y(Q) 3 1.25 20 194 92.1 8 4330×2248×2564
WNS4-1.25- Y(Q) 4 1.25 20 194 93 9.6 4732×2150×2448
WNS5-1.25- Y(Q) 5 1.25 20 194 93 12.5 5970×2360×2796
WNS6-1.25- Y(Q) 6 1.25 20 194 93.2 16.5 5500×2600×2990
WNS8-1.25- Y(Q) 8 1.25 105 194 93.5 24.8 6450×2800×3200
WNS10-1.25- Y(Q) 10 1.25 105 194 93.5 26.8 6800×2900×3394
WNS15-1.25- Y(Q) 15 1.25 105 194 93.5 38 7150×3200×3540
WNS20-1.25- Y(Q) 20 1.25 105 194 93.5 55 8200×3400×3826

4. Boiler application

1. Agriculture
2. Animal food industry
3. Automotive industry
4. Bakeries
5. Ceramic industry
6. Cheese dairies
7. Chemical industry
8. Dairies
9. Distilleries
10. Dyeing factories
11. Electrical industry
12. Food packaging industry
13. Fruit processing
14. Glass fibre production
15. Greenhouses
16. Hospitals
17. Metal-working industry
18. Paper industry
19. Pharmaceutical industry
20. Plastics manufacturing
21. Primary industry
22. Print offices
23. Refineries
24. Slaughterhouses
25. Spinning mills
26. Steel works
27. Tank farms
28. Tobacco industry
29. Tyre manufacturing
30. Vulcanisation
31. Waste disposal
32. Waste incineration
33. Weaving mills
34. Wood processing
35. Wood products
