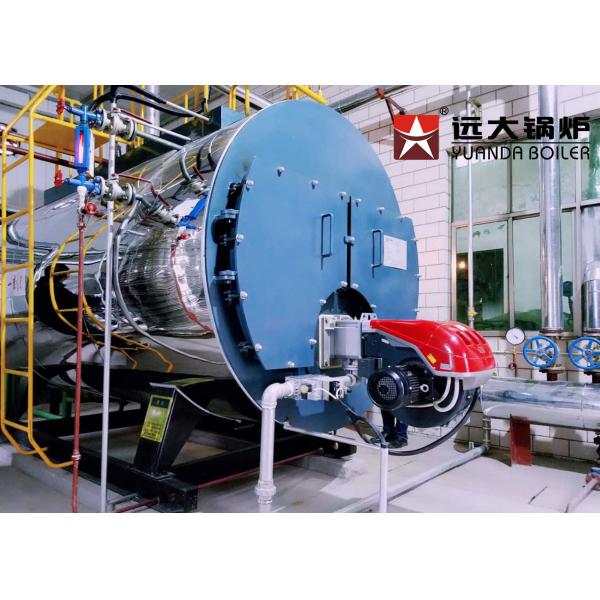

2 Ton Diesel Oil Gas Fired Industrial Steam Boiler 1 Ton - 20 Ton For Food Processing
2 Ton Diesel Oil Gas Fired Industrial Steam Boiler 1 Ton - 20 Ton For Food Processing
Specifications
Brand Name :
Yuanda
Model Number :
WNS
Certification :
ISO9001,CE,ASME
Place of Origin :
Henan,China
MOQ :
1 set
Price :
contact Aileen for latest price
Payment Terms :
L/C, D/P, D/A, T/T, Western Union
Supply Ability :
150 sets per month
Delivery Time :
20 working days after payment
Packaging Details :
professional packaging for sea transportation
Product name :
2 Ton Diesel Oil Gas Fired Industrial Steam Boiler 1 Ton - 20 Ton For Food Processing
Outlet water temperature :
95 °C
Rated pressure :
0.7MPa, 1.0MPa
Boielr capacity :
1ton - 20 ton
Industrail usage :
Rice mill, textile factory, food processing, paper mill
Boiler using life :
more than 20 years
Quality control :
3rd party boiler quality inspection
Boiler type :
Boiler manufacturer since 1956
Fuel design :
diesel, oil, gas, lpg, heavy oil, hfo, light oil
Description

2 Ton Diesel Oil Gas Fired Industrial Steam Boiler 1 Ton - 20 Ton For Food Processing

Introduction of Industrial Steam Boiler

Industrial Steam Boiler is package type full automatic horizontal three pass fire tube wet back structure boiler.

Industrial Steam Boiler can produce hot water, saturated steam or superheated steam.

Industrial Steam Boiler is adaptable for wide ranges of fuels such as natural gas, LPG, biogas, methane gas, diesel heavy oil etc.

Industrial Steam Boiler Technical parameter sheet

Boiler model Capacity Pressure Feed temp. Steam temp. Fuel consump. Thermal efficiency
Light oil Heavy oil Natural gas
t/h Mpa ℃ ℃ kg/h kg/h m3/h %
WNS1-1.0-Y(Q) 1 1 20 184 65.5 67.3 84.2 91
WNS 2-1.25- Y(Q) 2 1.25 20 194 129.6 132.2 165 92
WNS3-1.25-Y(Q) 3 1.25 20 194 192 195 250 92.1
WNS4-1.25- Y(Q) 4 1.25 20 194 256 261.9 323.6 93
WNS5-1.25- Y(Q) 5 1.25 20 194 318 322 386 93
WNS6-1.25- Y(Q) 6 1.25 20 194 380 390.6 450 93.2
WNS8-1.25- Y(Q) 8 1.25 105 194 503 517 642 93.5
WNS10-1.25- Y(Q) 10 1.25 105 194 628 643 805 93.5
WNS15-1.25- Y(Q) 15 1.25 105 194 940 965 1182 93.5
WNS20-1.25- Y(Q) 20 1.25 105 194 1250 1301 1597 93.5

The above is standard models of our boiler, customized specifications are available.

Learn more about this boiler, download the attached file WNS oil gas fired boiler.pdf

Industrial Steam Boiler Features:

1. Big corrugated furnace

Adopt the advanced corrugated furnace design, the combustion chamber with large volume. It enlarged the furnace diameter and create a bigger radiant heat exchange area, so increased the boiler thermal efficiency.

2. The boiler is equipped with world famous brand burners and valves groups such as Baltur, Riello, Weishaupt, Oilon etc. , 80% configuration, making the combustion more sufficient with lower failure rate.

3. thread smoke tube technology

Strengthen the heat transfer and reduce the number of smoke tubes and boiler shell size.Reduce the thermal stress at the tube end to prevent cracking of tube sheet.

4. Wet back structure

Wet-back smoke chamber, the whole smoke chamber is inside boiler proper, directly heating water in

boiler proper, greatly increase boiler heating efficiency. It can also lower the temperature of back tube sheet to prevent cracking. And also extend boiler life and reduce maintenance costs.

5. Three-pass exhausted gas flow design, ensure high temperature exhausted gas contacting with boiler tubes adequately, reduce exhausted gas temperature and increase boiler efficiency.

Industrial Steam Boiler Boiler application

Beverage factory, Food processing industry, Textile factory, Printing and dyeing factory, Garment factory, Paper mill, Plywood factory, Poultry feed mill, Refinery, Rice mill, Noodle factory, Sugar mill, Wood processing industry, Carton factory, Cardboard factory, Dyeing mill, Leather factory, Packaging industry, Central heating, Greenhouse, Hospital, Rubber factory, Slaughterhouse, Soap factory, Bitumen plant, etc.

2 Ton Diesel Oil Gas Fired Industrial Steam Boiler 1 Ton - 20 Ton For Food Processing

2 Ton Diesel Oil Gas Fired Industrial Steam Boiler 1 Ton - 20 Ton For Food Processing

Industrial Steam Boiler project cases:

export to Chile WNS2-1.0-Y(Q)

2ton gas/oil fired steam boiler export to Chile
export to Pakistan WNS5-1.6-Y(Q)

5ton diesel fired steam boiler export to Pakistan
export to Egypt WNS10-1.5-Y

7MW /10ton Natural gas fired thermal oil heater boiler export to Egypt
export to Ghana WNS1.5-1.0-Y

1500kg natural gas fired steam boiler will work for customer's soft factory
export to Cambodia WNS15-1.25-Y(Q) Gas oil fired steam boiler is very popular, Vietnam customer uses it for the clothes factory, Ethiopia customers uses it for food processing factory, Bangladesh customer uses it for the milk processing factory, African customer use it for the wood processing factory, etc.
export to Tanzanian WNS10-1.25-Y(Q)
export to Saudi Arabia WNS8-1.25-Y(Q) YY(Q)W-1400Y(Q)
export to New Zealand WNS0.5-1.0-Q

Natural gas fired steam boiler will work for honey making factory, our New Zealand customer bought one 500kg steam boiler for food making industry.
export to Bangladesh WNS4-1.25-Y(Q) WNS1-1.0-Y(Q)

Fire tube steam boiler, fuel can be natural gas,lpg,cng,light oil, heavy oil. This model boiler can be used for textile factory,very convenient and easy-operation. Our boiler can ensure 100% running safety and no-problem working. Some of of customer use it for food making, like rice mill, wine factory, sauce making factory,etc. There are many production technology process, need steam boiler to carry out.

2 Ton Diesel Oil Gas Fired Industrial Steam Boiler 1 Ton - 20 Ton For Food Processing
