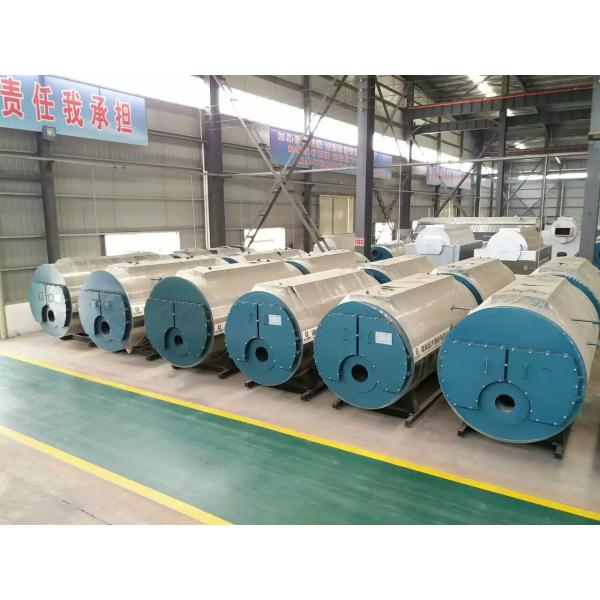

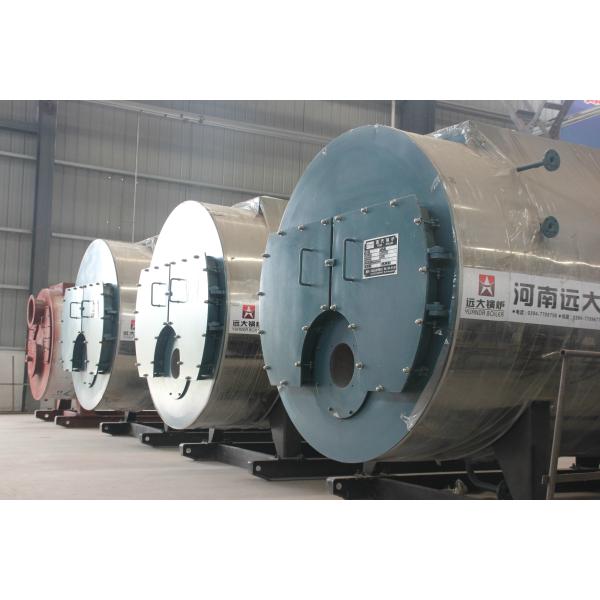

Manufacturer Price Wns Biogas Methane Natural Gas Fired Industrial Steam Boiler

Industrial Steam Boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technoligy,equipped with international first-level brand burners and valve groups,and independently developed high-matching PLC control system to realize multiple inkages.The lock protection funtion protects the equipment running safely.

Industrial Steam Boiler Quick details:

Industrial Steam Boiler Core technology:

1. Nitrogen oxide emissions <30mg/m3;

2. PLC control system;

3. The 5th stage water level protection;

4. Flame-out,power failure self-locking protection function;

5. Automatic fault identification function;

6. Data collection analysis function;

7. Internet of Things remote monitoring.

Industrial Steam Boiler technical parameter

Industrial Steam Boiler project case:

Safety System each part of the boiler is designed based on the safety.
1.Independently developed PLC control panel, better match our boiler operation. Siemens PLC with 10 inch touch screen and frequency transformer, more safety and easy operation.
Safety control system:
1)Control the feed pump, burner, water level sensor and pressure controller
2) Control the water feeding:
Automatic Alarm when the water level is high or low, safety interlock when the water level is over-high or over-low. When the water level is low, the boiler system will feed water automatically, when the water level is high, the boiler will stop feeding water. When the water level lower than 0 or over-high, the boiler burner flame out.
3)Pressure control
Safety interlock for over-high pressure.
4)Control the smoke temperature, when the smoke temperature is over-high, it will control the boiler alarm firstly and then the burner flame out, the boiler shutdown.
5)The burner can switch over from large fire to small fire, control the burner start and off automatically.
6) remote control system
2.Double safety valve, double water level gauge, double pressure gauge design, backup security, safe and reliable.
3. All steel materials, boiler pipe, boiler drum steel plate according to state standard and from national standard manufacturer, ensure the high material quality.
4.Strict quality control
1)100% NDT nondestructive testing inspection for welding.
2)The boiler needs to be do the hydraulic text before leaving the factory, and it should be under the supervision of relevant government departments.
