Fire Tube Diesel Heavy Oil Natural Gas Steam Boiler Q345R Carbon Steel Material

Gas Steam Boiler is package type full automatic horizontal three pass fire tube wet back structure boiler. Gas Steam Boiler can produce hot water, saturated steam or superheated steam. Gas Steam Boiler is adaptable for wide ranges of fuels such as natural gas, LPG, biogas, methane gas, diesel heavy oil etc. Gas Steam Boiler has a large corrugated furnace which have big radiate heating area and we adopted threaded smoke tube which greatly increased the boiler heat transfer efficiency. Gas Steam Boiler burners and valve groups are world famous brand from Italy and German, quality is stable and reliable.

Gas Steam Boiler Quick details:

Gas Steam Boiler description and superior advantages

1. Big corrugated furnace
Adopt the advanced corrugated furnace design, the combustion chamber with large volume. It enlarged the furnace diameter and create a bigger radiant heat exchange area, so increased the boiler thermal efficiency.
2.The boiler is equipped with world famous brand burners and valves groups such as Baltur, Riello, Weishaupt, Oilon etc. , 80% configuration, making the combustion more sufficient with lower failure rate.
3. thread smoke tube technology
Strengthen the heat transfer and reduce the number of smoke tubes and boiler shell size.Reduce the thermal stress at the tube end to prevent cracking of tube sheet.
4. Wet back structure
Wet-back smoke chamber, the whole smoke chamber is inside boiler proper, directly heating water in
boiler proper, greatly increase boiler heating efficiency. It can also lower the temperature of back tube sheet to prevent cracking. And also extend boiler life and reduce maintenance costs.
5.Three-pass exhausted gas flow design, ensure high temperature exhausted gas contacting with boiler tubes adequately, reduce exhausted gas temperature and increase boiler efficiency.
6.Automatic PLC control
Independently developed PLC control panel, better match our boiler operation. Siemens PLC with 10 inch touch screen and frequency transformer, more safety and easy operation.

Gas Steam Boiler​ technical parameter

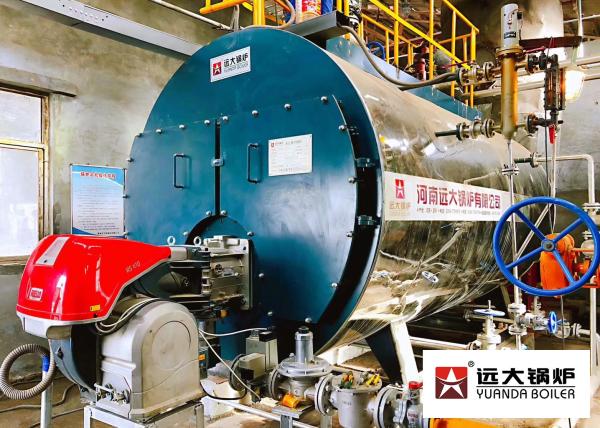

Gas Steam Boiler project case:

Gas Steam Boiler application fields

1. Food industry: steam can be used for food disinfection, cooking; Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;

After-sale service:

1. provide full range of original spare parts.

2. We will send engineers to your local project site to guide the installation and commissioning.

3. Our engineers will held a training for boiler workers to ensure the safe operation.

4. Free maintenance and repair for one year and lifelong service.
