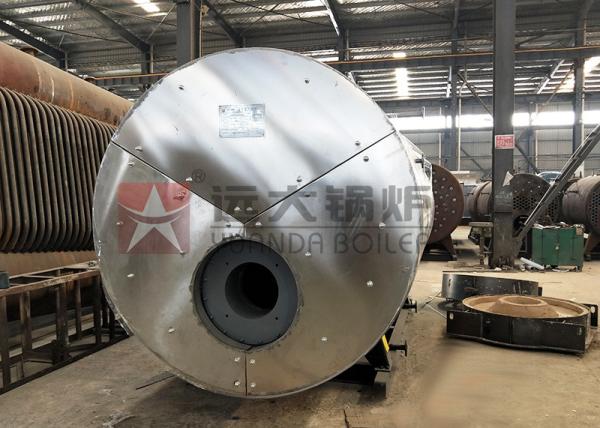

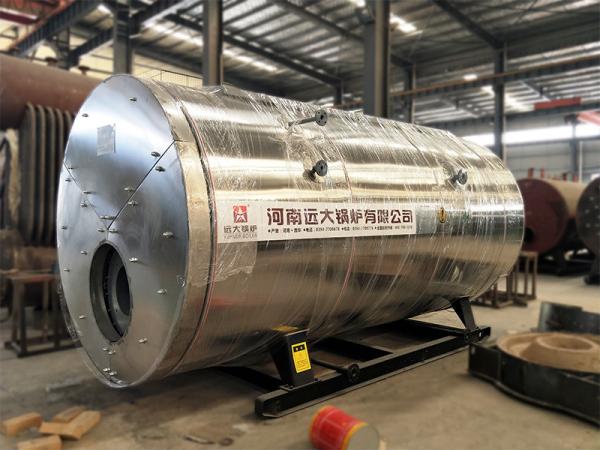

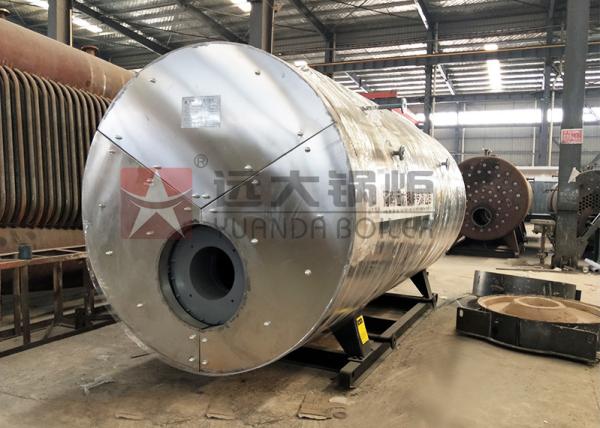

Automatic Water Feeder 2000Kghr Gas Fired Steam Boiler For Soft Drinks Plant

General introduction:

WNS series gas/oil fired industrial steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.
1.Model:WNS
2.Steam Capacity: 500kg/hr-20ton/hr
3.Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)
4.Stem temperature: below 224 degree
5.Design fuel:natural gas, lpg, lng, cng, city gas, biogas, diesel oil, heavy oil
6.Structure: three pass fire tube wet back
7.Application: boiler for textile mill, milk pasteurization,corrugated machine, sugar factory,pringting dyeing mill,medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, etc.

Core Technology:

1. Independently research and develop PLC control system, intelligent matching, rich functions, safe and convenient;

2. Automatic control of boiler water level, over-high,over-low water level and over-pressure alarm function, adding the fifth water level protection;

3. Flame-out protection, power failure self-locking protection function;

4. Boiler operation data query and automatic fault identification function;

5. Data collection, analysis, storage and remote monitoring of the Internet.

6.Industrial packaging design, beautiful and durable.

Wns diesel oil steam boiler technical parameter

Notes: The lower heating value of the fuel is calculated by the following values, light oil 10240kcal/kg, heavy oil 10000 kcal/kg, natural gas 8000kcal/Nm3, liquefied gas 24000 kcal/Nm3, and city gas 3800 kcal/Nm3. The parameters are for reference only. If the technology is improved, please refer to delivery technical parameters.

Application fields

1. Food industry: such as juice processing factory, tomato sauce factory, wine factory, rice mills,etc.
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;

Yuanda Boiler Service:

1. Pre-sale service:

We help customer choose the best boiler model according to different requirements of various industry. Before delivery we will provide foundation drawing, layout drawing, boiler room layout, etc.

2. In-sale service:

We keep 24 hours online and keep close contacts during the production process to ensure on time delivery with perfect finished product.

3. After-sale service:

• provide full range of original spare parts.
• We will send engineers to your local project site to guide the installation and commissioning.
• Our engineers will held a training for boiler workers to ensure the safe operation.
• Free maintenance and repair for one year and lifelong service.
