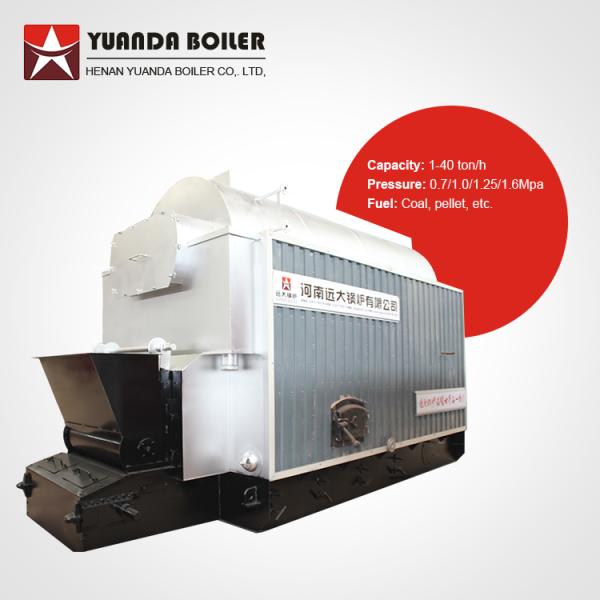

Capacity 1 Ton - 20 Ton Coal Fired Hot Water Boiler 1.25MPa / 1.5MPa Pressure
Capacity 1 Ton - 20 Ton Coal Fired Hot Water Boiler 1.25MPa / 1.5MPa Pressure
Specifications
Brand Name :
Yuanda Boiler
Model Number :
DZL
Certification :
SGS,CE,ASME,ISO9001
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Be negotiated
Payment Terms :
D/P, L/C, T/T, D/A
Supply Ability :
1500 sets per year
Delivery Time :
20 working days
Packaging Details :
Wooden box for boiler accessories.
Product name :
Automatic Food Factory 10 ton DZL Coal Hot Water Boiler for sale South Africa
Design fuel :
coal,biomass,bagasse
Color :
Silver,red
Operation :
Automatic operation
Quality :
High strict detection test
Boiler working life :
More than 20 years
Boiler pressure :
1.25MPa, 1.5MPa
Company :
boiler manufacturer since 1956
Description

Automatic Food Factory 10 ton DZL Coal Hot Water Boiler for sale South Africa

1. Fuel:coal,biomass pellet

2. Capacity: 1ton - 20ton

3. Item: Automatic chain grate, running safety,automatic operation

4. Boiler model:SZL,DZL

DZL coal hot water boiler

Boiler model Rated thermal power Rated pressure Outlet temp. Return water temp. Grate effective area Design efficiency Fuel consumption
MW MPa ℃ ℃ ㎡ % Kg/h
DZL0.7-0.7/95/70-AII 0.7 0.7 95 70 1.85 80 110
DZL1.4-0.7/95/70-AII 1.4 0.7 95 70 3.4 80 222
DZL2.8-0.7/95/70-AII 2.8 0.7 95 70 5.18 80 432
DZL4.2-0.7/95/70-AII 4.2 0.7 95 70 7.55 81 633
DZL5.6-1.0/95/70-AII 5.6 1 95 70 9.34 80 855
DZL7-1.0/115/70-AII 7 1 115 70 12 80 1068
DZL10.5-1.0/115/70-AII 10.5 1 115 70 18 81 1587
DZL14-1.0/115/70-AII 14 1.25 130 70 22.85 81 2116
DZL21-1.25/130/70-AII 21 1.25 130 70 27.5 81 3160
DZL29-1.25/130/70-AII 29 1.25 130 70 34.5 81 4327

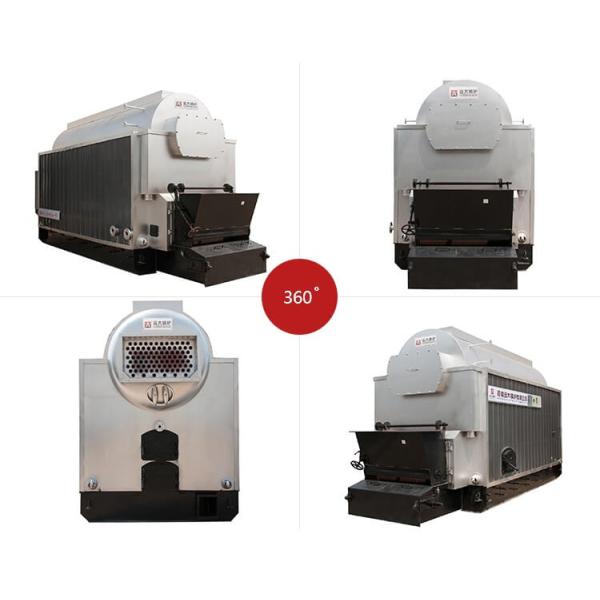

Capacity 1 Ton - 20 Ton Coal Fired Hot Water Boiler 1.25MPa / 1.5MPa Pressure

Capacity 1 Ton - 20 Ton Coal Fired Hot Water Boiler 1.25MPa / 1.5MPa Pressure

1. Return water eject to the high temperature tube plate
F: Improve the flow rate of high temperature tube plate and prevent subcooled boiling
P:prevent the tube plate cracking

2. Ejector pipe
F:Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling
P:To prevent pipe explosion,Increase the reliability of water cycle

3. Smoke and dust separator chamber
F:Separate smoke and dust according to inertia
P:reduce the original effluent concentration of soot

4. Optimized design CAD
F:Choose the best furnace from dozens of options
P:improve economical efficiency

5. Convex tube plate
Function:improve tube plate flexibility,so as to reduce the heating stress of welded sew at the pipe end
Purpose:prevent tube plate cracking, cancel bracing,simplify the structure

6. Large size of simple circulation loop drop pipe and lower set box
F:Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling
P:To prevent pipe explosion,Increase the reliability of water cycle

Capacity 1 Ton - 20 Ton Coal Fired Hot Water Boiler 1.25MPa / 1.5MPa Pressure
