Automatic Operation Industrial Steam Boiler Low Pressure For Soy Sauce Processing
Automatic Operation Industrial Steam Boiler Low Pressure For Soy Sauce Processing
Specifications
Brand Name :
Yuanda
Model Number :
WNS
Certification :
ISO9001,SGS,CE
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Be discussed
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 sets per month
Delivery Time :
20 days after payment
Packaging Details :
Professional wooden box for boiler accessories and steady transportation company to cooperate.
Product name :
Promotional 2ton 4ton Gas Oil Fired Industrial Steam Boiler Price for Soy Sauce Processing
Capacity :
5t, 5000kg/h, 5ton/h
Color :
Customized
Fuel :
natural gas,lpg,cng
Type :
Automatic operation
Pressure :
low pressure
Style :
horizontal
Efficency :
95 %
Description

Promotional 2ton 4ton Gas Oil Fired Industrial Steam Boiler Price for Soy Sauce Processing

Industrial Steam Boiler Main Features


1. Rated evaporation capacity: 5 ton/h
2. Rated working pressure: 0.7 Mpa, 1.0MPa, 1.5MPa
3. Rated steam temperature:170°C, 184°C, 204°C, 224°C
4. Fuel and Consumption: light oil 40.6kg/h heavy oil 43.2kg/h gas 48.5Nm3/h

5. Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable.

6. Wet back built-in transfer smoke room structure design:all wet back structure,reduce the temperature of the tube plate,prevent cracking.

7. “the light of boiler institute”spirally corrugated pipe technology patent:Technology source of the light of Beijing boiler research institute are, raise smoke flow rate,raise heat transfer coefficient,strengthen heat transfer effect

8. 5-10% overload capacity design:reasonable configuration,reduce equipment use fatigue,safe and reliable,long service life.

Automatic Operation Industrial Steam Boiler Low Pressure For Soy Sauce Processing

Industrial Steam Boiler Parameter

Boiler model Capacity Pressure Feed temp. Steam temp. Fuel consump. Thermal efficiency Weight
Natural gas Liquid gas City gas
t/h Mpa ℃ ℃ m3/h m3/h m3/h % ton
WNS1-1.0-Y(Q) 1 1 20 184 84.2 29 176 91 4.3
WNS 2-1.25- Y(Q) 2 1.25 20 194 165 57.3 346 92 7.2
WNS3-1.25-Y(Q) 3 1.25 20 194 250 82 510 92.1 8
WNS4-1.25- Y(Q) 4 1.25 20 194 323.6 109 682 93 9.6
WNS5-1.25- Y(Q) 5 1.25 20 194 386 140 87 93 12.5
WNS6-1.25- Y(Q) 6 1.25 20 194 450 164 1020 93.2 16.5
WNS8-1.25- Y(Q) 8 1.25 105 194 642 209 1321 93.5 24.8
WNS10-1.25- Y(Q) 10 1.25 105 194 805 264 1654 93.5 26.8
WNS15-1.25- Y(Q) 15 1.25 105 194 1182 400 2417 93.5 38
WNS20-1.25- Y(Q) 20 1.25 105 194 1597 520 3299 93.5 55

Automatic Operation Industrial Steam Boiler Low Pressure For Soy Sauce Processing

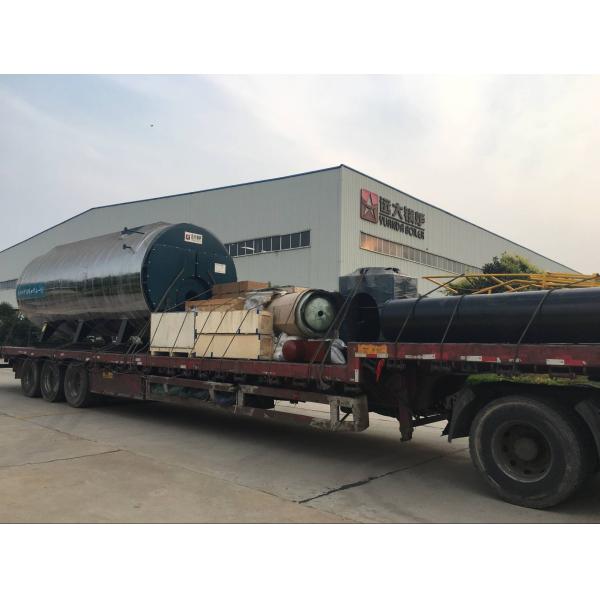

Industrial Steam Boiler Delivery Item

1. Nude packaging for boiler main part and wood box packaging for boiler accessories.
2. Generally use 20 container, 40container or 20 flat rack container and 40 flat rack container to load the boiler.
3. All goods will be fixed after packing into containers.
4. We have stable shipping company to cooperate for long term. They will confirm the safety of the goods.
5. Shipping way is different according to customer's country. Mostly by sea. Some country by train.

Automatic Operation Industrial Steam Boiler Low Pressure For Soy Sauce Processing
