Best Sale 2 Ton Gas Diesel Oil Fired Food Processing Fire Tube Steam Boiler

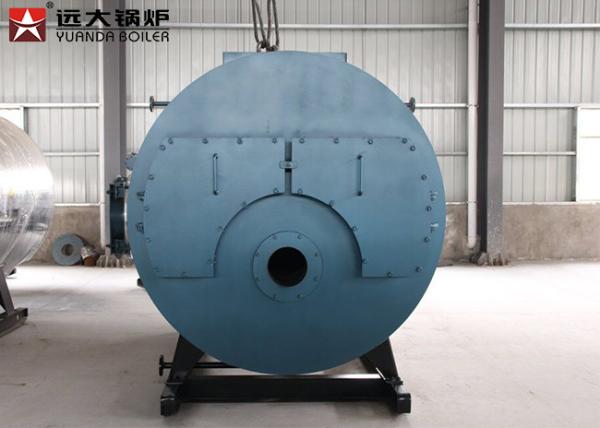

Introduction of fired tube steam boiler

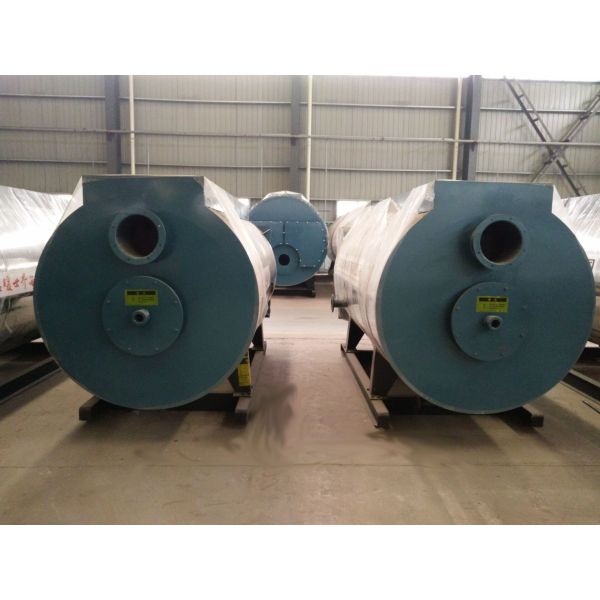

WNS series fire tube steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.

1. Model:WNS
2. Capacity:500kg/h-20ton/h
3. Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)
4. Stem temperature:below 224 degree
5. Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil
6. Structure: three pass fire tube wet back

Special design of WNS horizontal fire tube steam boiler

1. Adopt domestic and foreign advanced large furnace design
Increase the diametre of furnace on the basis of original traditional design.expand the surface of radiant heat exchange,mainly center on radiant heat exchange ,reduce the heat exchange burden during the second and third return,and make the fuel burning efficiently,reduce the harmful gas production. Besides,the spiral hearth in the high temperature area not only increase the area of radiant heat exchange, but also make a resistance to the smoke movement.have a obvious effect about radiation heat exchange.

2. The spiral furnace design
Increase the overall strength of the furnace,make compensation for the heat exchange and shrinkage automatically,avoid the in-perfection of welded sew crack due to the change of tube plate heating stress.Therefore,boiler has strong adaptability about various of fuel,for example,heavy oil,light oil,natural gas,city gas.

3. Improve heat transfer technology
Apply the technology of heat transfer from “the light of Harbin institute”.Adopt the design of efficient heat transfer screw thread pipe and optimize the smoke speed.The output and heat efficiency of boiler don’t decrease with the extend of operation time,thus achieve a compact structure with 10% overload capacity.

4. Research PCL control board independently
Strontg conpatibility,PLC intelligent touch screen equipmet,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection,filling and stopping pump automatically,high and low water warning,ultra low water-level interlock,alarm when the temperature of smoke exhaust is too high and stop furnace operating.

5. Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable.

Fire Tube Steam Boiler parameter

This is just part of the product parameters, if you want to know more detailed parameters of the boiler, please feel free to contact us.

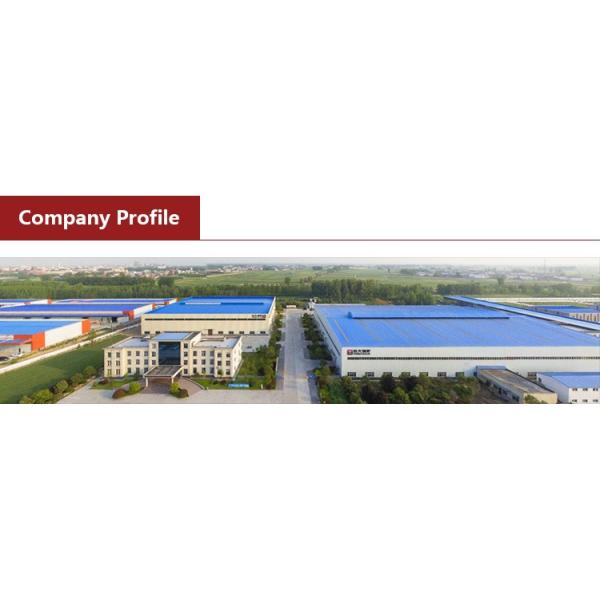

Henan Yuanda Boiler Company

Henan Yuanda Boiler Co,. Ltd, founded in 1956, is one of the leading enterprises which firstly obtained boiler manufacturing license in China.

Our factory is located in the west industrial agglomeration area of Xihua county,Henan province. R & D center and marketing center are located in the capital city,Zhengzhou, Henan Province.We are high-tech enterprise combining with research, development and sales of heating system and power system. We have B-class boiler manufacturing license(professional for industrial boilers) and D-class pressure vessel manufacturing license, and passed ISO9001,ISO14001 and OHSAS18001.

The factory has beautiful environment with cover area 66000m2 and building area 30000m2. We have employees more than 200 people, including engineers 30 people and senior engineer 10 people. We have advanced equipment, with 430 sets of main production equipment and 30 sets of testing equipment.

With 60 years' experience in boiler design, production, installation and operation, Yuanda Boiler has formed an annual production of 2000 tons of industrial boilers and 5000 tons of pressure vessels. By the end of 2017, the products of Yuanda Boiler have covered China and exported to more than 80 countries in the world.
