Fire Tube Wet Back High Efficiency Gas Boiler 1 Ton - 20 Ton Boiler Capacity
Fire Tube Wet Back High Efficiency Gas Boiler 1 Ton - 20 Ton Boiler Capacity
Specifications
Brand Name :
Yuanda
Model Number :
WNS
Certification :
ISO9001,CE,ASME
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Depends on boiler model
Payment Terms :
L/C, D/P, D/A, T/T, Western Union
Supply Ability :
150 sets per month
Delivery Time :
20 working days after payment
Packaging Details :
Plywood case professional packaging transportation
Product name :
3 ton hr Diesel Gas Driven Fire Tube Wet Back Gas Steam Boiler Factory
Rated steam temperature :
184°C,226°C
Rated pressure :
0.7MPa - 1.6MPa
Boielr capacity :
1ton - 20 ton
Industrail usage :
Textile industry,food factory
Boiler using life :
more than 20 years
Quality control :
3rd party quality inspection
Boiler type :
Boiler manufacturer since 1956
Description

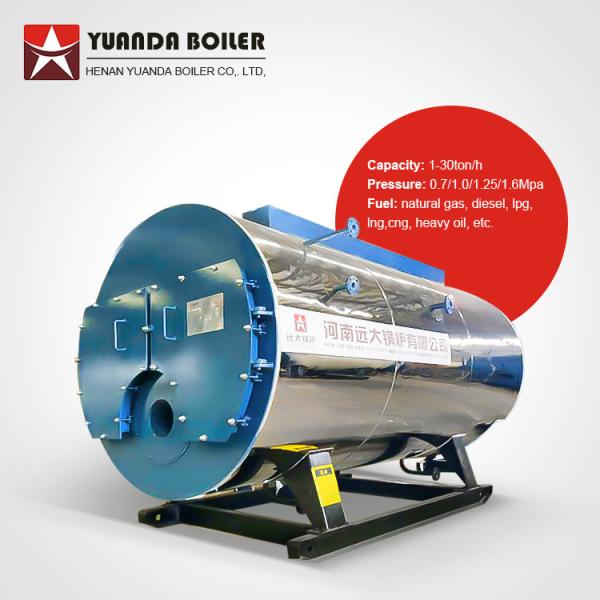

3 ton hr Diesel Gas Driven Fire Tube Wet Back Gas Steam Boiler Factory

Gas Steam Boiler Product description

1. Adopt domestic and foreign advanced large furnace design
Increase the diameter of furnace on the basis of original traditional design.expand the surface of radiant heat exchange. So, mainly center on radiant heat exchange ,reduce the heat exchange burden during the second and third return,and make the fuel burning efficiently,reduce the harmful gas production. Besides,the spiral hearth in the high temperature area not only increase the area of radiant heat exchange, but also make a resistance to the smoke movement.have a obvious effect about radiation heat exchange.


2. Spiral furnace design
Increase the overall strength of the furnace,make compensation for the heat exchange and shrinkage automatically,avoid the in-perfection of welded sew crack due to the change of tube plate heating stress.Therefore,boiler has strong adaptability about various of fuel,for example,heavy oil,light oil,natural gas,city gas.

3. Improve heat transfer technology
Apply the technology of heat transfer from “the light of Harbin institute”.Adopt the design of efficient heat transfer screw thread pipe and optimize the smoke speed.The output and heat efficiency of boiler don’t decrease with the extend of operation time,thus achieve a compact structure with 10% overload capacity.

Fire Tube Wet Back High Efficiency Gas Boiler 1 Ton - 20 Ton Boiler Capacity

Gas Steam Boiler Parameter

Boiler model Rated capacity Rated pressure Rated Feed temp. Rated Steam temp. Fuel consumption Thermal efficiency Dimensions
Natural gas Liquid gas
t/h Mpa ℃ ℃ m3/h m3/h % mm
WNS1-1.0-Y(Q) 1 1 20 184 84.2 29 91 3561×1690×1910
WNS 2-1.25- Y(Q) 2 1.25 20 194 165 57.3 92 4111×1950×2199
WNS3-1.25-Y(Q) 3 1.25 20 194 250 82 92.1 4330×2248×2564
WNS4-1.25- Y(Q) 4 1.25 20 194 323.6 109 93 4732×2150×2448
WNS5-1.25- Y(Q) 5 1.25 20 194 386 140 93 5970×2360×2796
WNS6-1.25- Y(Q) 6 1.25 20 194 450 164 93.2 5500×2600×2990
WNS8-1.25- Y(Q) 8 1.25 105 194 642 209 93.5 6450×2800×3200
WNS10-1.25- Y(Q) 10 1.25 105 194 805 264 93.5 6800×2900×3394
WNS15-1.25- Y(Q) 15 1.25 105 194 1182 400 93.5 7150×3200×3540
WNS20-1.25- Y(Q) 20 1.25 105 194 1597 520 93.5 8200×3400×3826

Gas Steam Boiler advantages

(1) High effiency(exceed 92%) and energy saving(save gas 3-5m3/h;save oil 3-5kg/h).
(2) Enough steam output and high quality steam.
(3) Safe and reliable.
(4) Long life span(More than 20 years ).
(5) Intelligent and fully automatic.
(6) Easy inspection and maintenance.

Fire Tube Wet Back High Efficiency Gas Boiler 1 Ton - 20 Ton Boiler Capacity

Gas Steam Boiler Transport & Delivery

Normally we use 20 container, 40container or 20 flat rack container and 40 flat rack container to load it. Shipping way is different according to customer's country. Mostly by sea,Some by train.In order to ensure the customer get the product smoothly and safely,our company has cooperated with professional transportation team for the handing the land loading transport.

Fire Tube Wet Back High Efficiency Gas Boiler 1 Ton - 20 Ton Boiler Capacity

Gas Steam Boiler application

Fire Tube Wet Back High Efficiency Gas Boiler 1 Ton - 20 Ton Boiler Capacity
