Industrial Steam 1 ton Rice Husk Steam Boiler for Animal Feed Industry

Rice Husk Steam Boiler Brief Introduction:

Rice Husk Steam Boiler is water tube chain grate double-drum boiler. It has has big furnace which has great apply for various type biomass fuel, like wood pellet, rice husk, bagasse, sawdust, etc. This boiler is environmental protection and energy conservation.

Rice Husk Steam Boiler Quick Details:
1. Boiler Applied fuel: biomass pellet, wood pellet, wood chip, rice husk,straw, sawdust, paddy, peanut and all other kinds of solid fuel.
2. Boiler Rated capacity: packaged 1 to 8 t/h, assembled 10-20 t/h
3. Boiler Model: SZL
4. Boiler Structure: automatic chain grate, water tube, 3-pass boiler, double drum
5. Boiler efficiency: 83-86%
6. Boiler Output: steam
7. Boiler Rated steam pressure: 1.0Mpa(10bar), 1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar).
8. Boiler Rated steam temperature: 184°C, 194°C,204°C,225°C

Rice Husk Steam Boiler​ features:

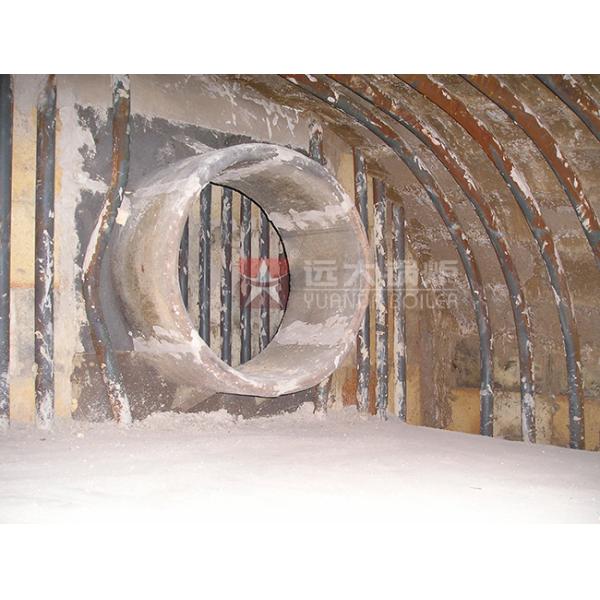

1. The cyclone combustion chamber is designed in the furnace. The high-temperature flue gas is rotated by high-speed rotation, mixed combustion and dust separation, so as to achieve the first-class dust removal, energy saving and environmental protection effects .

2, the furnace volume is large, can be applied to a variety of biomass fuels;

3. Independent air chamber structure makes the air volume adjustment between the longitudinal air chambers sensitive and reliable, and the horizontal air distribution is uniform, which overcomes the wind plug, hurricane and partial burn phenomenon;

4, the heating area is large, the pressure is fast, the output is sufficient, and the energy consumption is low;

5, package type delivery from factory, which can greatly shorten the installation time.

Rice Husk Steam Boiler Technique parameter

Rice Husk Steam Boiler Application

1. Food industry: steam can be used for food disinfection, cooking; Wine industry need to use steam;
2. Petrochemical industry: steam can be used to heat oil, to strengthen the liquidity of oil;
3. Foam, furniture production: the steam can be used for producing foam. When making furniture, wood needs to be dried with steam;
4. Filling block production:steam used for drying the aerated brick;
5. Washing ironing industry: generally used in laundry, including dry cleaning machines, dryers, washing machines, dehydration machines, ironing machines, iron and other equipment supporting the use;
6. Packaging machinery industry: labeling machines, sets of standard machine;
7. Bio-chemical industry: fermentation tank, reactor, sandwich pan, mixer, emulsifier and other equipment;
8. Food machinery industry: tofu machine, steamer, sterilization tank, packaging machines, paint equipment, sealing machines and other equipment;

Why choose Yuanda Rice Husk Steam Boiler:

1. Founded in 1956, Grade-A boiler manufacturer, international well-known brand, we have cooperated with more than 12000 customers all over the world.

2. With 62 years experience in boiler design, technique, production, installation and operation.

3. Annual production capacity: industrial boilers up to 5000t/h and various pressure vessels up to 6000t/h.

4. Trade capacity: Yuanda boilers have been exported to more than 80 countries. China Top 5 export sales in boiler industry.
