Textile Factory Oil Fired Heating Boilers With 7000KW Thermal Capacity
Textile Factory Oil Fired Heating Boilers With 7000KW Thermal Capacity
Specifications
Brand Name :
Yuanda
Model Number :
YY(Q)W-7000YQ
Certification :
ISO,CE,SGS
Place of Origin :
China
MOQ :
1 set
Price :
contact us for updated price
Payment Terms :
L/C, D/P, D/A, T/T
Supply Ability :
1000 sets per year
Delivery Time :
10 working days after payment
Packaging Details :
Wooden box for boiler accessories, naked package for boiler body. Reliable transportation cooperated company.
Thermal Oil Boiler :
Thermal Oil Heater Boiler
Thermal Capacity :
7000KW
fuel design :
natural gas, light oil, Diesel, Heavy Oil, Dual Fuel
Boiler medium :
Heat transfer oil, hot oil, Conduction oil
Runing mode :
Oil forced circulation
Boiler structure :
Coil pipe, three way, wet back structure
Efficiency :
96%
Application fileds :
plywood factory, textile factory, rubber factory, bitumen plant
company :
boiler factory since 1956
Outlet oil temperature :
280℃ 320 ℃
Description


YYQW Series 0.7MW-1.4MW Oil Gas Fired Thermal Oil Heater Boiler

Thermal oil heater boiler introduction

YY(Q)W series thermal oil heater boiler adopts horizontal chamber combustion three-coil structure,and its body is composed of outer coil,middle coil,inner coil and rear coil.


Thermal Oil Heater Boiler Core technology:
1. Oil cover fire structure with three pass.
2. Over oil temperature/over smoke temperature/low flow alarm.
3. Wet back structure.
4. Design with air preheater or heat recovery boiler.
5. Compact coil tube.
6.Front and rear big open door design.

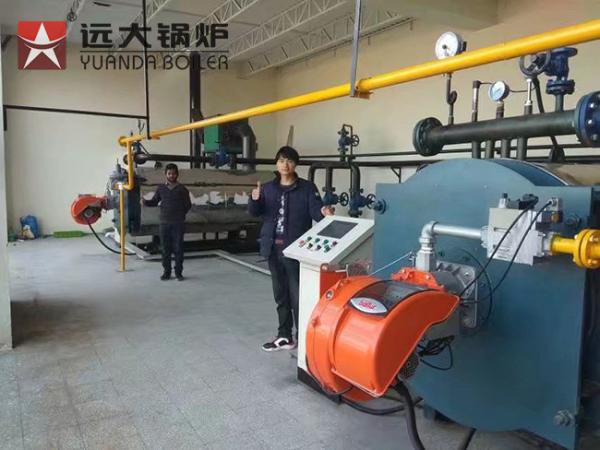

Textile Factory Oil Fired Heating Boilers With 7000KW Thermal Capacity

Textile Factory Oil Fired Heating Boilers With 7000KW Thermal Capacity

Thermal Oil Heater Boiler Technical parameters table

Model Rated Thermal Power (MW) Rated Working Pressure (Mpa) Rated Outlet Temperature (℃) Heat Efficiency (%) Fuel Consumption
Gas Oil Gas m³/h Oil Kg/h
YY(Q)W-700Y(Q) 0.7 0.8 320 92.93 93.16 84.26 69.1
YY(Q)W-1400Y(Q) 1.4 0.8 320 91.41 91.65 169.11 138.78
YY(Q)W-2100Y(Q) 2.1 0.8 320 93.91 94.17 259.6 212.52
YY(Q)W-3000Y(Q) 3 0.8 320 92.08 92.57 385.16 313.41
YY(Q)W-3500Y(Q) 3.5 0.8 320 92.99 93.3 431.92 353.31
YY(Q)W-4200Y(Q) 4.2 1.1 320 94.2 94.54 516.38 422.57
YY(Q)W-7000Y(Q) 7 1 320 96% 96.24 857.7 702.12


The listed technical parameters are for reference only and can be designed according to different requirements of users.


Thermal Oil Heater Boiler Application use industry
1. Wood processing industry: Drying and forming of beaver board, shaving board, laminated sheet, etc.
2. Building industry: Asphalt dissolution, concrete heating tank, waterproof material, felt production, etc
3. Textile printing and dyeing Industry: Heat setting, textile printing, ageing, drying, etc.
4. Plastic and rubber industry: Hot pressing, calendering, extrusion, vulcanization, artificial leather processing, etc.
5. Chemical industry: Polymerization and condensation reaction, distillation, rectification, concentration, evaporation, fusion
6. Oil production industry: Decomposing, deodorization, oil acid distillation, hydrogenation and esterification reaction, etc
