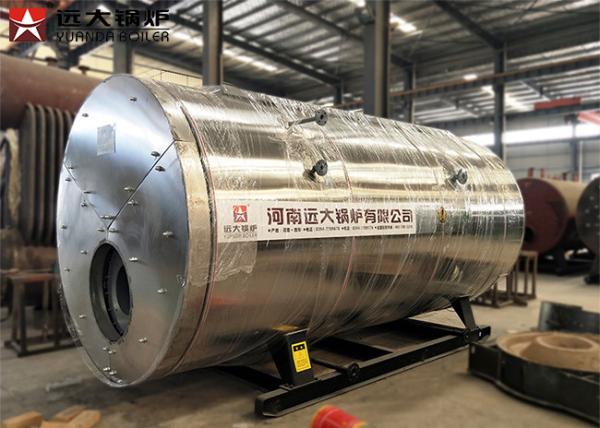

Fully Automatic High Efficiency Gas Steam Boiler Natural Circulation Compact Design
Fully Automatic High Efficiency Gas Steam Boiler Natural Circulation Compact Design
Specifications
Brand Name :
Yuanda boiler
Model Number :
WNS
Certification :
ISO9001,CE,ASME
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Depends on boiler capacity
Payment Terms :
D/P, L/C, D/A, T/T, Western Union
Supply Ability :
500 sets per year
Delivery Time :
25 days after payment
Packaging Details :
Nude packaging for boiler main part and wooden box packaging for boiler accessories.
Product name :
500kg to 20ton Steam Capacity 92%-99% High Efficiency Gas Steam Boiler
Circulation type :
Natural circulation
Fuel :
natural gas
Structure :
Fire tube three pass structure
System :
Automatic running safety
Control system :
Strict quality control
Material :
Standard raw material
Company :
Boiler factory more than 60 years
Description

500kg to 20ton Steam Capacity 92%-99% High Efficiency Gas Steam Boiler

Gas Steam Boiler offered by us are designed and manufactured to deliver optimum functionality in the given environment.Backed by cutting edge features and special designs, these fully automatic systems provide complete ease of operations and maintenance. Package Type, Fully Automatic, three pass & water tube design electric steam boilers. These industrial steam boilers are designed to efficiently meet the demands of instantaneous steam. For achieving perfect combustion, it includes precisely designed smoke passages & combustion chambers.

Fully Automatic High Efficiency Gas Steam Boiler Natural Circulation Compact Design

Advanatges of gas steam boiler

1. Higher operational efficiency
2. Instant steam generation
3. Fitted with all safety tools & instruments
4. Compact design
5. Fully automatic
6. Fitted with all safety instrument
7. Instant steam generation
8. Higher efficiency

Fully Automatic High Efficiency Gas Steam Boiler Natural Circulation Compact Design

Accessories of gas steam boiler

Descriptions Functions
Burner Ignition and make the fuel burning.
Feed water pump & water circulating pump Vertical seamless pump Put water into boiler and promote hot water circulation.Compact structure,low power consumption,low failure rate
Automatic water softener Remove Mg+,Ca+ in the water and improve water quality. Prevent hurt to boiler tube,entend the boiler using life time.
PLC + Touch screen control panel Burner auto ignition,fire off,fire switch;Gas high and low pressure protection;Gas leakage protection;Automatic feeding water and stop the pump,High and low water level alarm,low water level interlock;boiler stop alarm for high exhaust temperature boiler;Scale on-line monitoring,boiler water hardness testing,oxygen analyzer
Economizer Heat inlet water and reduce exhausted gas temperature, which increase boiler efficiency and is good for environment.Finned tube type made by ND steel with 80% deoxygenization effect,strong thermal conductivity and grately save fuel
Gas flue and Chimney Provide channels for exhausted gas flow.
Steam header Distribute steam to different directions.Used for distributing the steam to each pipe of user's workshop. The generated steam is transported to the production workshop through the steam header and steam pipes.
Safety Valves It will work automatically when the working pressure is over high to protect the whole system
Pressure Gauge Show the working pressure of the boiler
Check Valves Connect pipes to ensure water not to flow backwards
Blow-down Valves To let out the sediment, impurities or other things in the bottom
Shut-off Valves Turn on or off the pipes

Fully Automatic High Efficiency Gas Steam Boiler Natural Circulation Compact Design
