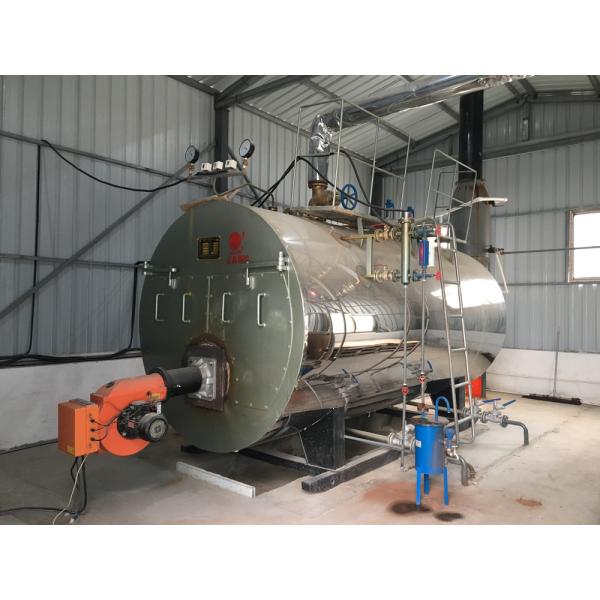

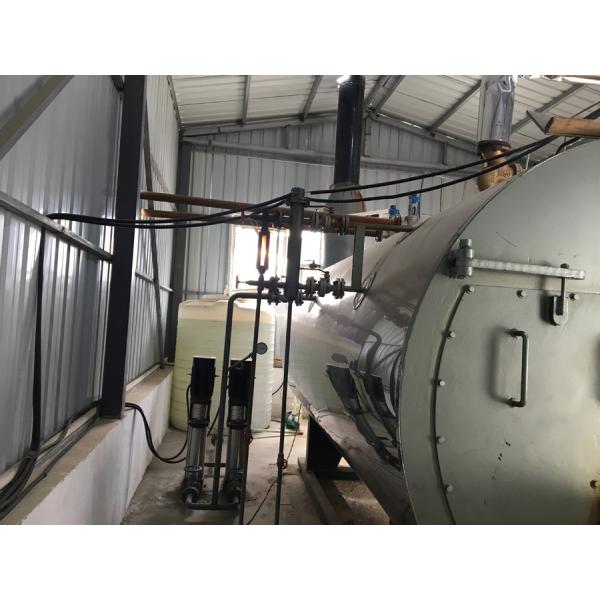

1T to 20T Industrial Steam Boilers , Horizontal Fire Tube Boiler Stainless Steel Package
1T to 20T Industrial Steam Boilers , Horizontal Fire Tube Boiler Stainless Steel Package
1T to 20T Industrial Steam Boilers , Horizontal Fire Tube Boiler Stainless Steel Package
1T to 20T Industrial Steam Boilers , Horizontal Fire Tube Boiler Stainless Steel Package
Specifications
Brand Name :
Yinchen
Model Number :
WNS
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1
Price :
usd 10000-100800 set
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
5000 set month
Delivery Time :
1-20 working days
Packaging Details :
1.Package: Regular package or nut package; 2.Transportation: By land or by sea , it depends on the exporting areas.
Product Name :
Steam Boiler for Paper Factory
Boiler steel plate :
Q245R
Pressure :
1.0Mpa 1.25Mpa 1.6Mpa
Boiler Voltage :
380V 420V industry power
Thermal efficiency :
>94%
Boiler Weight :
16.5ton
Model Range :
WNS0.5 WNS1 WNS2 WNS3 WNS4 WNS6 WNS8 WNS10
Voltage Frequency :
50Hz 60Hz
Description

Stainless Steel Package WNS horizontal Fire Tube Three Pass Industrial Steam Boiler For Paper Factory

Product Introduction:

WNS series boiler are high quality,famous brand products.The capacity is from 1ton to 20 ton,pressure is from 0.7mpa -2.5mpa.

WNS series automatic oil-fired, gas-fired boilers were adopted advanced international three-pass and wet back structure. The boilers are matched excellent imported brand burners and high automatic control system.

Feature 1: Three pass structure

flue gas flow:

The first return:boiler fuel micro-positive buring in the furnace.

The second return:the flame and high temperature smoke through reversal chamber into short smoke pipe.

The third return:smoke through front smoke box into long smoke pipe.after the convection heat transfer discharge into atmosphere.

Feature 2:Wet back structure:

Adopt all wet back structure, the high temperature smoke are surrounded by water, can effectively use heating surface, and can avoid dry back structure to make back smoke box scoured by high temperature smoke result in easily damaged.

boiler furnance,reversal chamber and smoke pipe all immersed in water

Technical information:



Boiler Model

 Rated Capacity Rated Pressure Steam Temperature


Fuel consumption

 Thermal efficiency Weight
t/h Mpa ℃

Diesel oil
(Kg/h)

Natural gas
(Nm³/h)

 % T
WNS0.5-1.0-Y(Q) 0.5 1 184 20-35 18-35 >90 3
WNS1-1.0-Y(Q) 1 1 184 45-100 70-100 >90.2 4.3
WNS2-1.25-Y(Q) 2 1.25 194 120-140 140-150 >91.5 7.2
WNS3-1.25-Y(Q) 3 1.25 194 180-210 185-230 >91.6 8
WNS4-1.25-Y(Q) 4 1.25 194 230-280 240-290 >91.7 9.6
WNS6-1.25-Y(Q) 6 1.25 194 360-380 370-400 >92 16.5
WNS8-1.25-Y(Q) 8 1.25 194 470-510 480-530 >91.3 24.8
WNS10-1.25-Y(Q) 10 1.25 194 600-630 650-700 >92.4 26.8
WNS15-1.25-Y(Q) 15 1.25 194 900-940 930-1000 >92.5 38
WNS20-1.25-Y(Q) 20 1.25 194 1200-1300 1350-1500 >93 55




Product process:
NC blanking----Edge preparation---Rolling---Drilling and reaming---Assembly---Welding--Non-destructive test---Hydrostatic test---Packaging

Why Choose Us?

  1. We will reply your inquiry in 7*24 hours.
  2. Experienced staffs will answer all your questions in fluent and professional English.
  3. Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam boilers;
A full range of original spare parts are available for all YINCHEN boilers
Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable
solutions, and we produce strictly following customers’ order. Every customer has the chance to visit
our workshops before placing the order. And we help to arrange cars, hotels, and the translators for
every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
We also provide necessary training about boiler operation and daily maintenance to local workers.

PACKING AND SHIPPING

Packaging Standard Export Package:Regular packing or nude packing.
Transportation By land or by sea, depended on the exporting area.
