Different Models Diesel Oil Industrial Steam Boiler Machine For Medical Use
Different Models Diesel Oil Industrial Steam Boiler Machine For Medical Use
Different Models Diesel Oil Industrial Steam Boiler Machine For Medical Use
Different Models Diesel Oil Industrial Steam Boiler Machine For Medical Use
Specifications
Brand Name :
Yinchen
Model Number :
WNS
Certification :
ISO SGS CE
Place of Origin :
HENAN
MOQ :
1
Price :
4000-79800 USD
Payment Terms :
L/C, T/T, MoneyGram
Supply Ability :
5000 set per year
Delivery Time :
1-20 working days
Packaging Details :
Boiler body covered with water-proof covering, accessories in plywood case or iron box.
Name :
Steam boiler machine for medical use
Capacity Range :
0.5--20 ton
Pressure Range :
0.7-2.5 Mpa
Temperature Range :
170-204 ℃
Design Fuel :
Light oil, heavy oil, diesel, lpg, waste oil, biogas, natural gas, lng, city gas
Feed water temperature :
20℃ or 105℃
Voltage :
380V-420V
Frequency :
50-60Hz
Description

Different Models Diesel Oil Industrial Steam Boiler Machine For Medical Use

Product Introduction:

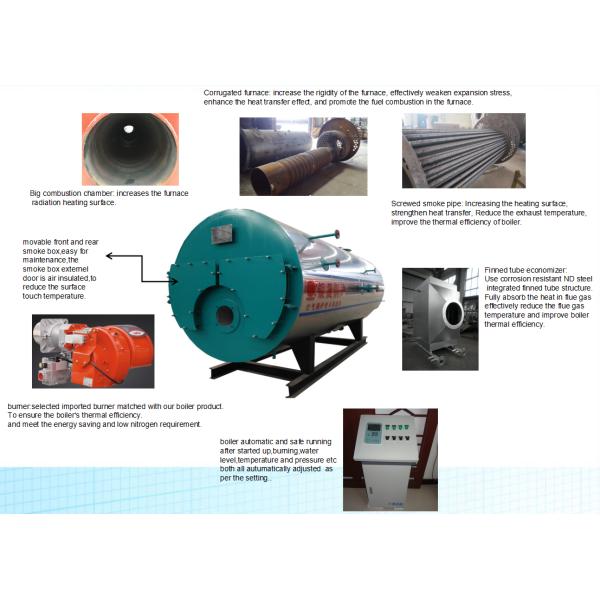

WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, LPG,LNG,CNG,city gas,town gas,biogas, diesel oil,heavy oil etc.

1.Model:WNS0.5-1.0-Y(Q) WNS1-1.0-Y(Q) WNS2-1.25-Y(Q) WNS3-1.25-Y(Q) WNS4-1.25-Y(Q) WNS6-1.25-Y(Q) WNS8-1.25-Y(Q) WNS10-1.25-Y(Q) WNS15-1.25-Y(Q) WNS20-1.25-Y(Q)

2.Capacity:500kg/h-20ton/h

3.Design pressure:1.0Mpa(10bar), 1.25Mpa(13bar), 1.6Mpa(16bar),2.5Mpa(25bar)

4.Stem temperature:184C,194C,204C, 224C.

5.Design fuel:natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil

6.Structure: three pass fire tube wet back

7.Application: boiler for textile mill, milk pasteurization,corrugated machine, sugar factory,printing dyeing mill,medicine industry, food & beverage industry, chemical industry, garment industry, food processing industry, and wood processing industry, etc.

Product technicals:

Boiler Model

 Rated Capacity Rated Pressure Steam Temperature

Fuel consumption

 Thermal efficiency Weight
t/h Mpa ℃

Diesel oil

(Kg/h)

Natural gas

(Nm³/h)

 % T
WNS0.5-1.0-Y(Q) 0.5 1 184 20-35 18-35 >90 3
WNS1-1.0-Y(Q) 1 1 184 45-100 70-100 >90.2 4.3
WNS2-1.25-Y(Q) 2 1.25 194 120-140 140-150 >91.5 7.2
WNS3-1.25-Y(Q) 3 1.25 194 180-210 185-230 >91.6 8
WNS4-1.25-Y(Q) 4 1.25 194 230-280 240-290 >91.7 9.6
WNS6-1.25-Y(Q) 6 1.25 194 360-380 370-400 >92 16.5
WNS8-1.25-Y(Q) 8 1.25 194 470-510 480-530 >91.3 24.8
WNS10-1.25-Y(Q) 10 1.25 194 600-630 650-700 >92.4 26.8
WNS15-1.25-Y(Q) 15 1.25 194 900-940 930-1000 >92.5 38
WNS20-1.25-Y(Q) 20 1.25 194 1200-1300 1350-1500 >93 55

our advantage:

(1).Strength calculation report with applied materials information;

(2).100%NDT(non-destructive inspection) report of steel plate, tube and welding rod;

(3).100% X-ray inspection(welding seam): ensure the quality of entire boiler;

(4).Hydrostatic test ensure the standard working pressure and safety;

(5).Third-party inspection report:By Henan Boiler Inspection Institute;

(6).Passed ISO:9001,SGS and CE certificate.

Our service:

  1. We will reply your inquiry in 7*24 hours.
  2. Experienced staffs will answer all your questions in fluent and professional English.
  3. Customized design is available.
Guarantee: One-year warranty and full-life service for all of our steam boilers;
A full range of original spare parts are available for all YINCHEN boilers
Pre-sales Service: Based on customers’ request and budget, our experts make efficient, reliable
solutions, and we produce strictly following customers’ order. Every customer has the chance to visit
our workshops before placing the order. And we help to arrange cars, hotels, and the translators for
every visiting customer.
After-sales Service: Experienced technicians guidance is available on the phone, and on the internet.
One or more engineers will be dispatched to the installation site to help install the customers’ boilers.
We also provide necessary training about boiler operation and daily maintenance to local workers.

Packing and transportation

Packaging

1.When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up.
2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
Transportation

3.The products could be transported by ship and train, customers could designate the ports.
4.If necessary, the small auxiliaries could be transported by airplane.

FAQ

Q-What is your payment term ?

A-Usually it would be 30% deposit payment, 70% balance before delivery. T/T, L/C and other way.

Q-Are your company is a trading company or a factory?

A-We are a 20 years old industrial boiler factory, specializing in OIL and GAS and Coal fired steam boiler.

Q-What is the warranty for boilers?

A-Our company promises all the accessories can be changed for new ones because of quality problems within 3 years, and the boiler host has Lifetime Warranty.

Q-Can we get installation and commissioning service ?

A-Yes, our engineers are available for your need, but the relative cost needs to be paid.

Q-What about the delivery ?

A-Usually it will take about 35-45 days for pressured boilers, and 25-30 days for non-pressured boilers. Double confirmation shall be necessary before ordering.
