Walkway Industrial Steel Grating , Steel Grating Platform 800mm Span
Walkway Industrial Steel Grating , Steel Grating Platform 800mm Span
Walkway Industrial Steel Grating , Steel Grating Platform 800mm Span
Walkway Industrial Steel Grating , Steel Grating Platform 800mm Span
Specifications
Brand Name :
TT
Model Number :
TT-1
Certification :
ISO9000:2015
Place of Origin :
Hebei,China
MOQ :
100M2
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000m2+5+days
Delivery Time :
3-5days
Packaging Details :
Conventional Export Packing Or As the Customer Requirement
Product Name :
Steel Grating Panels
Material :
A36/S275JR/S235JR
Span :
800mm
Load Bar :
30mm*5mm
Type Size :
800mm*1000mm
Load Weight :
3*4 People Weight
Description

Steel Grating Panels Used For Floor Forge Walkway Steel Grating

Steel Grating Panels Discription

Steel Grating Panels Raw Material:Mild Steel(Q235 Q355 A36 S275JR S235JR)

The Bearing Bar Size:30mm*5mm/32mm*5mm/25mm*5mm/30mm*4mm or as the customer inqurement.but

advance the bearing bar length is:1000mm/800mm/1200mm

The Cross Bar Size:5mm*5mm/6mm*6mm,the advance the length is 1000mm/1200mm

The Bearing Bar Space:30mm/25mm/35mm/40mm

The Cross Bar Space:100mm/50mm/76mm

Steel Grating Panels Specification

Type Specification Cross Bar Width Bearing Bar Length
TMISG001 G325/30/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG002 G255/30/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG003 G323/30/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG004 G505/30/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG005 G405/30/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG006 G355/30/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG007 G303/40/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG008 G253/40/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG009 G385/30/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG0010 G404/40/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG0011 G254/40/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm
TMISG0012 G325/40/100 1000mm/800mm/600mm 800mm/900mm/1000mm/1200mm

It is part of common specifications,The bearing bar space,and the cross bar space,both can change;our

shop can product the grating as the customer requirement.the grating size and the bearing bar and the

cross bar change,also the space change.we also can do it.any requirement let me know.

Steel Grating Panels Characteristics

Steel Grating Panels after do the hot dip galvanized ,the galvanized thickness is about 80um,it is Anti-rust

and corrosion,and can Increase service life,as usual can used more than 20years.

Steel Grating Panels support large than other raw material,so safe.

Steel Grating Panels looks beautiful

Steel Grating Panels Useful

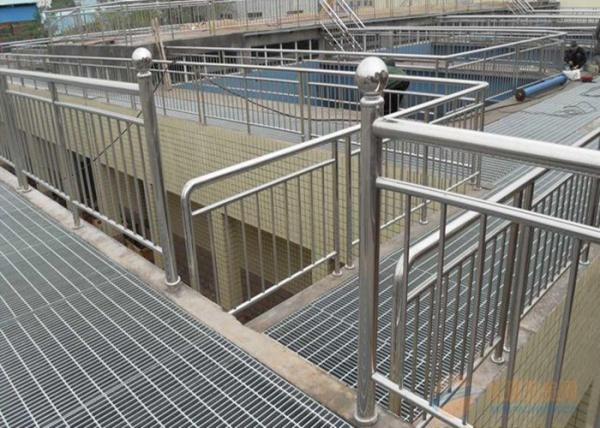

Steel Grating Panels have widespread use :Chemical plant maintenance platforms, power plant

maintenance platforms, and some of the construction platforms, and some of the ship boards and some of

the other public places

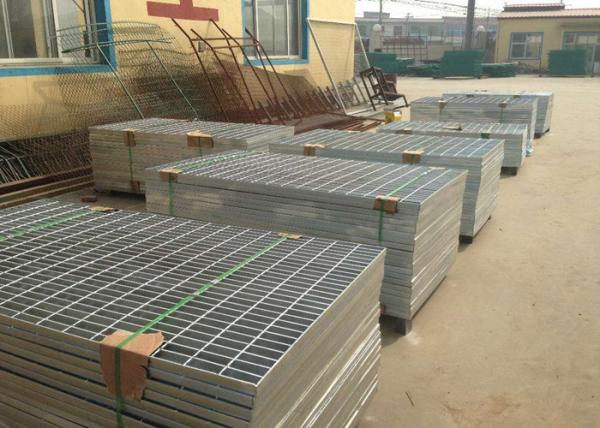

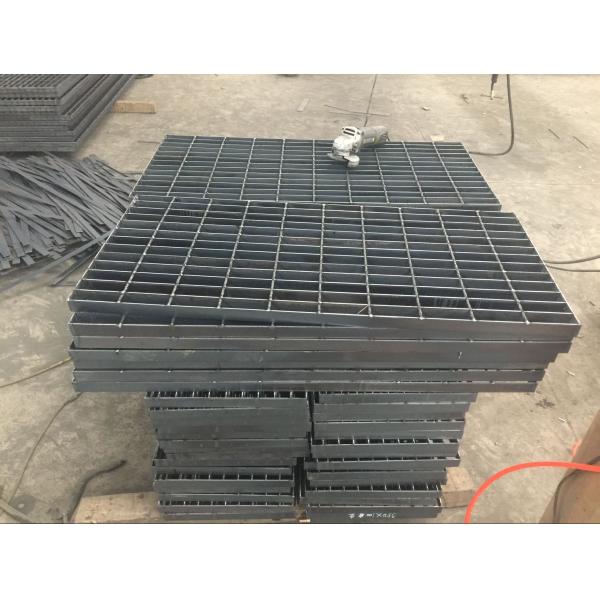

Steel Grating Panels Picture

Walkway Industrial Steel Grating , Steel Grating Platform 800mm Span
