Industrial Metal Catwalk Steel Grating With High Bearing Capacity Raw Material
Industrial Metal Catwalk Steel Grating With High Bearing Capacity Raw Material
Industrial Metal Catwalk Steel Grating With High Bearing Capacity Raw Material
Industrial Metal Catwalk Steel Grating With High Bearing Capacity Raw Material
Specifications
Brand Name :
TT
Model Number :
TT-1
Certification :
ISO 9000-2015
Place of Origin :
Anping,China
MOQ :
3 tons
Payment Terms :
L/C T/T
Supply Ability :
100 TONS/DAY
Delivery Time :
3-10 work days
Packaging Details :
Wooden Pallet/Steel Pallet Or As The Customar require
Price :
Negotiable
Product Name :
Industrial Steel Grating
Grating Standard :
YB/T4001-2007
Raw Material :
Q235/S235jr
Cross Bar :
6mm/8mm Twist Steel
Surface Treatment :
HDG/Painting
Packing :
Wooden or Steel Pallet
Description

Industrial Metal Catwalk Steel Grating With High Bearing Capacity Raw Material

Industrial Metal Catwalk Grating Specification


1)Industrial Metal Catwalk Grating Bearing Bar (Load Bar) Specifications (mm):
The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 9 or according to customers request.

2)Industrial Metal Catwalk Grating Bearing Bar Pitch (center to center):
12.5 to 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended, America standard is available.

3)Industrial Metal Catwalk Grating Cross Bar Pitch (center to center):
From18.5 to 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.

4)Industrial Metal Catwalk Grating Material: Stainless steel or mild steel.

5)Industrial Metal Catwalk Grating Surface Treatment: Untreated, Painting or Dipped Galvanizing.

6)Industrial Metal Catwalk Grating standards:
A) China: YB/T4001.1-2007
B) U. S. A.: ANSI/NAAMM (MBG531-88)
C) U. K.: BS4592-1987
D) Australia: AS1657-1985
E) Japan: JJS

7) Hot Dipped Galvanizing Standards:
A) China: YB/T 13912-2002
B) USA.: ASTM A123

Quality Standards:

No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

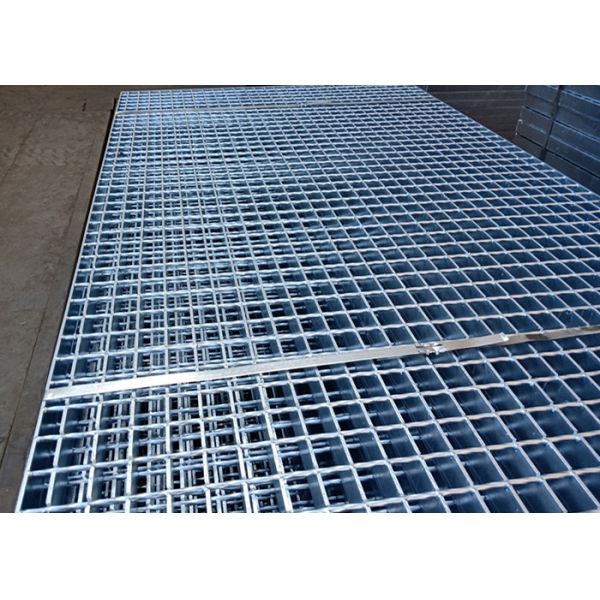

Product Picture:

Industrial Metal Catwalk Steel Grating With High Bearing Capacity Raw Material
