Galvanized Serrated Steel Grating G325 / 30 / 100 Used For Ship Plate

Galvanized Serrated Steel Grating description:

Galvanized Serrated Steel Grating G325 / 30 / 100 Used For Ship Plate

Galvanized Serrated Steel Grating Size: 1m*6m standard type (special size and American

standard are also can product as customer requirement)

Material: Low carbon steel (Q235/Q345/S235JR/S275JR)

Surface Treatment: Hot dip galvanizing, paint or no coating

Surface Shape: Platform, tooth shape and I shape

Quality Standard:

Steel Grating Standard: China YB/T4001-1998

America ANSI/NAAMM (MBG531-88)

Britain BS4592-1987

Australia AS1657-1992

Galvanized Serrated Steel Grating Specification:

All the Galvanized Serrated Steel Grating specification only part of the common specifications,the bearing

bar/bearing bar space,and the cross bar space,all can change;our workshop can product the grating as the

customer requirement,the Galvanized Serrated Steel Grating size and the cross bar change,also the space

,all can change it,if you have any requirement let me know

Galvanized Serrated Steel Grating Useful

Galvanized Serrated Steel Grating Characteristics

Also have the prevent slippery and beautiful

Galvanized Serrated Steel Grating Installation:

Regard welding installation, angle welding would used at the first bearing bar of every

corner,which the welding & using saddle clips are two ways for installation of grating. The

welding is suitable for those places where there is no need to move or dismantle,for

instance,the flooring around the machines.

However,using saddle clips are featuring in easy installation

Regarding saddle clip installation, at least four sets of saddle clips would be used in one

per grating.It would be better using more in the support beam for those gratings with a

bigger span.

Saddle clip composed of a top plate,a hold down & a M8 bolt, is suitable for all kinds

of galvanized serrated steel grating

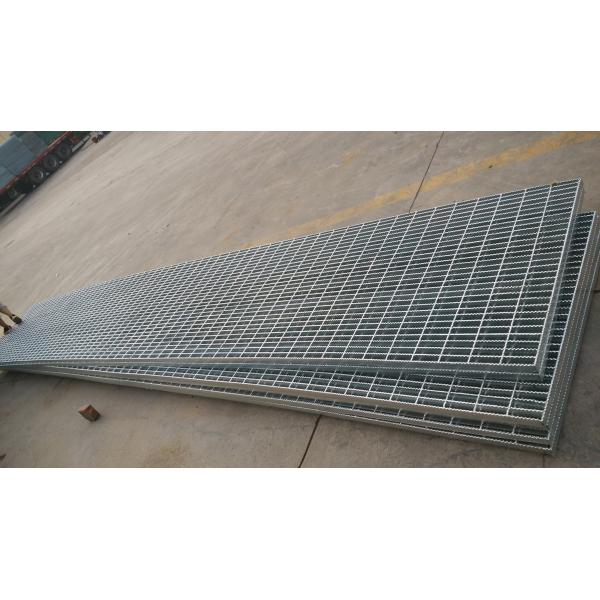

Galvanized Serrated Steel Grating Picture
