Galvanized Heavy Duty Steel Grating , Round Bar Grating For Bearing Plate
Galvanized Heavy Duty Steel Grating , Round Bar Grating For Bearing Plate
Galvanized Heavy Duty Steel Grating , Round Bar Grating For Bearing Plate
Galvanized Heavy Duty Steel Grating , Round Bar Grating For Bearing Plate
Specifications
Brand Name :
TT
Model Number :
TT-6
Certification :
ISO 9000-2015
Place of Origin :
Anping,china
MOQ :
3 tons
Payment Terms :
L/C T/T
Supply Ability :
100 TONS / DAY
Delivery Time :
3-10 work days
Packaging Details :
Wooden Pallet/Steel Pallet Or As The Customar require
Product Name :
Heavy Duty Steel Grating
Type Bar :
Plain or Serrated Steel
Grating Standard :
YB/T4001-2007
Raw Material :
Q235/S235jr
Surface Treatment :
HDG/Painting/non treatment
Packing :
Wooden or Steel Pallet
Price :
Negotiable
Description

Galvanized Round Steel Welded Grating Heavy Duty For Bearing Plate

Round Steel Welded Grating is manufactured by cross plain steel strips with the joint spot welded, 2mm thickness of steel strips as bearing and cross bars, then it is hot dip Zinc galvanized. This method provides a positive fusion of cross and bearing bars. Universally used in most general industrial plants as well as commercial buildings; it has a wide range of uses such as walkways, platforms, safety barriers, ventilation grates, and drainage covers.

Round Steel Welded Grating Application:
Round Steel Welded Grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.

Round Steel Welded Grating Materials:
Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications.

Round Steel Welded Grating Advantages:
Round Steel Welded Grating offers the following advantages compared with steel grid sheets:
Round Steel Welded Grating has light weight, good strength, large carrying capacity and can save materials and cost. It offers good ventilation of light and wind, a modern sense, aesthetic appearance and anti-skid safety. It is also easy to clean, easy to installation and durable for uses.

No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

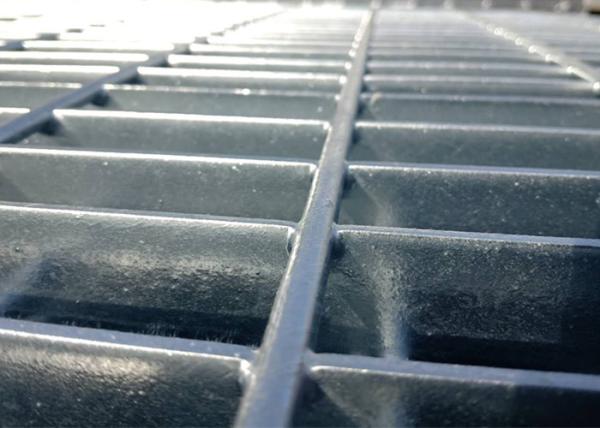

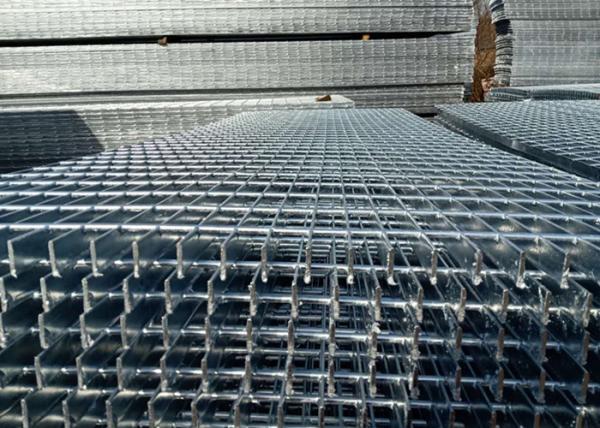

Round Steel Welded Grating Picture:

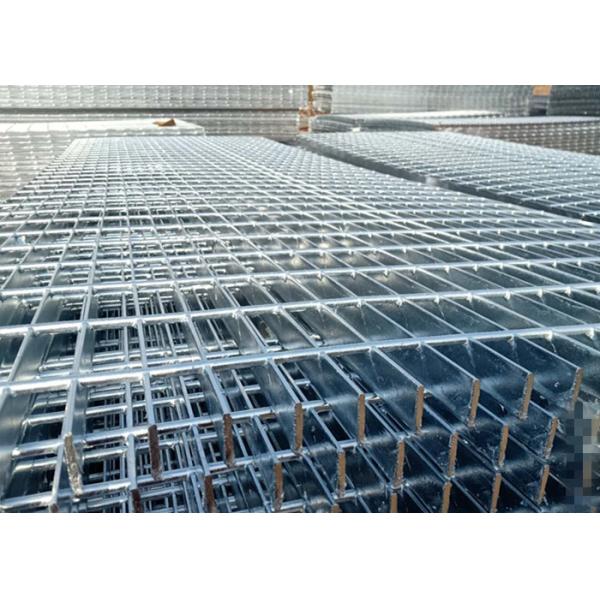

Galvanized Heavy Duty Steel Grating , Round Bar Grating For Bearing Plate
