Specifications
Brand Name :
TT
Model Number :
TT-4
Certification :
ISO 9000-2015
Place of Origin :
Anping,china
Price :
Negotiable
Payment Terms :
L/C T/T
Supply Ability :
100 TONS/DAY
Delivery Time :
3-10 work days
Packaging Details :
Wooden Pallet/Steel Pallet Or As The Customar require
Product Name :
Heavy Duty Steel Grating
Type Bar :
Flat Bar
Grating Standard :
YB/T4001-2007
Raw Material :
Q235/S235jr
Surface Treatment :
non treatment
Product Process :
Welding
Size :
As Per Drawing
Packing :
Wooden or Steel Pallet
Description

Heavy Duty Press Locked Long Span Shelving nontreatment With High Load Bearing

Introdution:

Materials: iron, steel or stainless steel 304/316

  • Surface treatment: electric galvanized, hot-dip galvanized with grooved edge,black print
  • Strip: 300*8mm
  • Aperture: 95*550mm
  • Sizes: 1x1m-1x6m
  • Used in platform, corridor, bridge, well covers and environment projects

The heavy duty steel grating locked with 300*8 mm flat bar with 90*550 diameter.It can be used for sand and stone beaing and cargo.

Applications: flooring, catwalk, mezzanines/decking, stair tread, fencing, ramp, dock, trench cover, drainage pit cover, maintenance platform, pedestrian/crowded pedestrian, factory, workshop, motor rooms, trolley channel, heavy loading area, boiler equipment and heavy equipment areaStandards:


No. Item Detailed Description
1 Bearing Bar 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc; I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc
US standard: 1' ' x3/16' ' , 1 1/4' ' x3/16' ' , 1 1/2' ' x3/16' ' , 1' ' x1/4' ' , 1 1/4' ' x1/4' ' , 1 1/2' ' x1/4' ' , 1' ' x1/8' ' , 1 1/4' ' x1/8' ' , 1 1/2' ' x1/8' ' etc
2 Bearing Pitch 12.5, 15, 20, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc
3 Cross Bar Pitch 38.1, 40 50, 60, 76, 80, 100, 101.6, 120mm, 2' ' & 4' ' etc
4 Steel Grade ASTM A36, A1011, A569, Q235, S235JR, S275JR, SS304, Mild steel & Low carbon steel, etc
5 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
6 Grating Style Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7 Grating Standard China: YB/T 4001.1-2007, USA: ANSI/NAAMM(MBG531-88),
UK: BS4592-1987, Australia: AS1657-1985, Japan: JIS

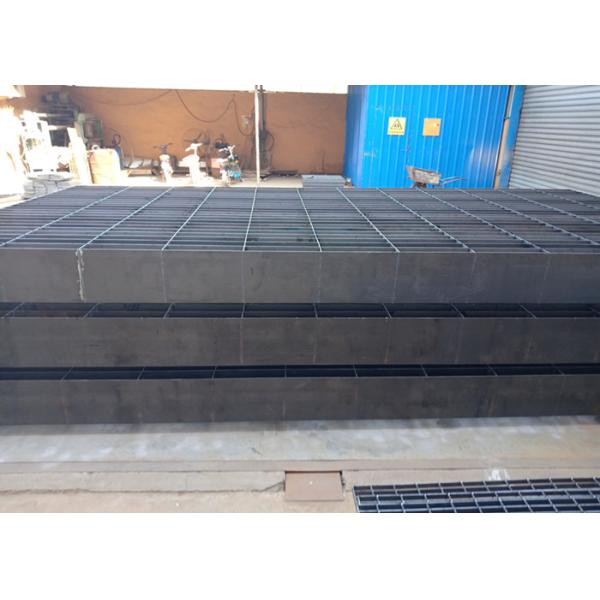

Heavy Duty Trench Grates Picture:
