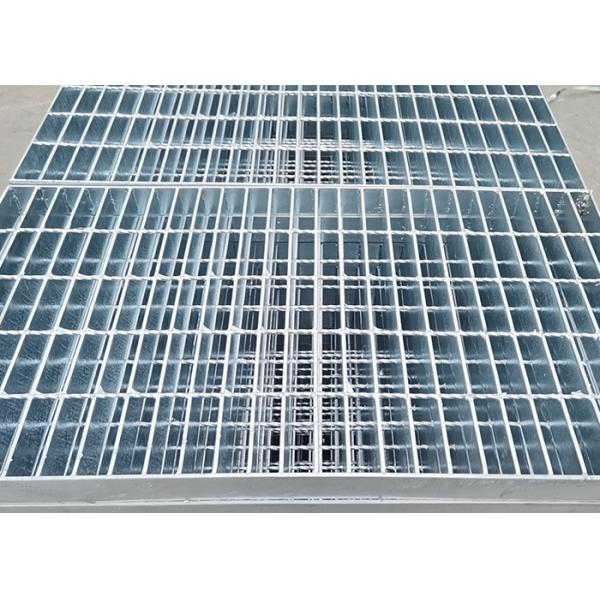

YB/T4001.1-2007 Standard Steel Bar Grating Platform Galvanized Steel Walkway Grating
YB/T4001.1-2007 Standard Steel Bar Grating Platform Galvanized Steel Walkway Grating
YB/T4001.1-2007 Standard Steel Bar Grating Platform Galvanized Steel Walkway Grating
YB/T4001.1-2007 Standard Steel Bar Grating Platform Galvanized Steel Walkway Grating
Specifications
Brand Name :
ZHUOTE
Model Number :
ZT355/30/50
Certification :
SGS&ISO 9001
Place of Origin :
Hebei, CN
MOQ :
1ton
Price :
1000$/ton
Payment Terms :
T/T
Supply Ability :
1000tons/month
Delivery Time :
25-30days
Packaging Details :
steel belt
Material :
Steel,Q235
Surface treatment :
Hot Dipped Galvanized,painting,painted
Application :
Floor,platform,steel structure,bridge
Product name :
serrated flat bar steel grating on sales
Standard :
ISO9001
Thickness :
3mm
Width :
610mm
Length :
914mm
Feature :
simple installation
Description

standard steel bar grating platform galvanized steel walkway grating

Description:

The most economical choice of steel grating product.

This grating is manufactured by an electro-forging process, welding rectangular bearing bars and cross rods. This welding method provides a positive fusion of cross rods and bearing bars.

The most popular is the 19-4 spacing; with approximately 80% open area the 19-4 spacing allows for passage of dirt, snow, liquids, air and debris.

Welded bar grating is also available in close mesh ADA conforming spacing for use in public areas.

Different bearing bar thickness can be specified, the most common 3/16" is stocked in multiple depths. 1/8", 1/4" are stocked in limited quantities.

Bearing bar thickness is offered from 1/8" to 1/2" to accommodate any load rating requirements. Universally used in most general industrial plants as well as commercial buildings;

it has a wide range of uses such as walkways, platforms, safety barriers, ventilation grates, and drainage covers.

Specifications:

Bearing bar thickness

 1 3/16''

Bearing bar depth

 1/8''

Bearing bar shaped

 serrated

Bearing bar pitch

 1 3/16''

Cross bar pitch

 2''

Steel Grating Standard

 China YB/T4001-2007

YB/T4001.1-2007 Standard Steel Bar Grating Platform Galvanized Steel Walkway Grating

Company Profile:

We as a manufacturer specializing in the production and export of a full range of steel gratings products. Our steel grating products have a wide range of different materials.The main products are highmedium and low carbon steelstainless steel,and aluminum steel grating.

And there are many styles, such as platform steel grating,special steel grating,sawtooth steel grating,high-strength steel grating, pressure-locking steel grating,etc.

With the development of the steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities.
