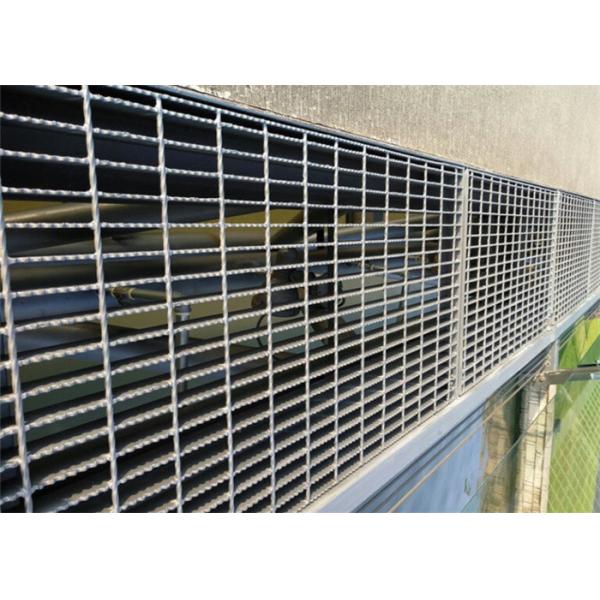

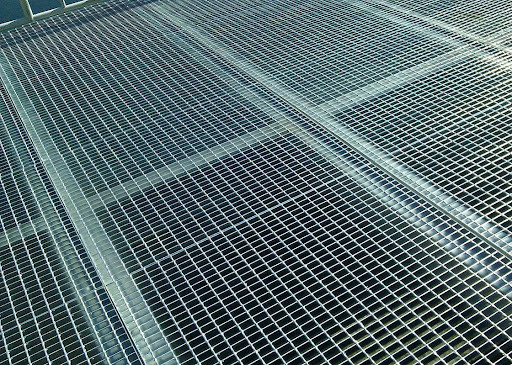

Heavy Duty Walk Platform Industrial Steel Grating Construction Welded Bar Galvanized
Heavy Duty Walk Platform Industrial Steel Grating Construction Welded Bar Galvanized
Heavy Duty Walk Platform Industrial Steel Grating Construction Welded Bar Galvanized
Heavy Duty Walk Platform Industrial Steel Grating Construction Welded Bar Galvanized
Specifications
Brand Name :
Zhuote
Model Number :
304/30/100
Certification :
ISO9001-2015
Place of Origin :
Hebei
MOQ :
10 piece
Price :
Can discuss
Payment Terms :
L/C, T/T
Supply Ability :
800 Square meters/day
Delivery Time :
5 work days
Packaging Details :
Steel belt packaging
Surface treatment :
Hot Dipped Galvanized, Painted, galvanized
Application :
Floor, Walkway, platform, stair tread, bridge
Color :
any color
Thickness :
2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm
Standard :
ISO9001, BS4592-1987, YB/T 4001.1-2007
Size :
Customized
Description

Heavy Duty Walk Platform Construction Welded Bar Galvanized Steel Grating

Bearing bar
- A flat bar withstanding the main load is in consistent with the span direction .
bearing bar pitch
- the distance center to center of the two bearing bars.
Cross bar
- the connecting bars , made from twisted bar ,round bar or flat bar, which extend across the bearing bars
Cross bar pitch
- the distance center to center of the two adjacent cross bars.
Length
(span)- the maximum dimension of a grating panel ,measured parallel to the bearing bar ,and in the same direction as the bearing bars .
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.
Width
- the maximum dimension of a grating panel ,perpandicular to the bearing bars .and in the same direction as the cross bars.

Name
 steel grating
Type flat bar, I-bar, serrated bar, serrated I bar
Bearing bar size 20*3, 20*5, 25*3, 25*5, 32*3, 32*5, 35*3, 35*5, 40*3, 40*5, 45*5, 50*3, 50*5, 55*5, 60*5, 65*5mm etc
Bearing bar spacing 15, 20, 25, 30, 33, 35, 38, 40, 50, 60, 80, 90mm
Cross bar spacing 24-200mm
surface Black, Hot dip galvanized, painted
standard YB/T4001.1-2007, ANSI/NAAMM(MBG531-88),BS4592-1987, AS1657-1985

Steel Grating Features and Function:

  1. Steel grating is widely used in the petrochemical industry, waterworks, power plants, sewage treatment plants, municipal works and so on.
  2. The top quality galvanized surface treatment, make it has high grade of unti-rust feature.
  3. The design is good looking, durable and cost-efficient.
  4. Different specifications are available to match various applications, we also produce by customized specifications.

Our Services

Luanen provide OEM service. We copy the customer's sample, also produce acccording to customer's drawing or specification details.

We provide high quality product with competitive price, and sample could be worked out for quality confirmation.

Our QC make inspections during the production, and give advices for improve if necessary.

We provide good after sales service, to keep the long-term cooperation with customers.

Heavy Duty Walk Platform Industrial Steel Grating Construction Welded Bar GalvanizedHeavy Duty Walk Platform Industrial Steel Grating Construction Welded Bar GalvanizedHeavy Duty Walk Platform Industrial Steel Grating Construction Welded Bar Galvanized

Standard Grating Packing Method:
1. Bandage and Paperboard: Generally applies to neat steel plate;
2. Screw Locking Method: Use 4 screw rods through the aperture of the steel grid, for high strength;
3. Steel Pallet: Traditional export packing. (Hot Dipped Galvanized Steel Gratings for Ditch Cover Plate)

FAQ:

Q1.What is the package?

1. Steel pallets, then plastic film in the surface.
2. Stow wood, or wooden tray with steel strip.
3. According to your packing requirements.

Q2.How to visit our factory?

You can fly to Hebei first and then take high-speed rail to Hengshui. We welcome your arrival.

Q3.The quantity of our purchase is very large, may I have a discount?

The price we quote is base on factory price, which is very competitive; But if your quantity is very large, We will apply for the very lowest price for you.

Q4.What 's your delivery time?

For one container products, normally 12-15days after your payment, we can finish the production. For large amount, we will discuss the time.
