Red Spray Paint Industrial Metal Floor Grates Welded Bar For Construction And Sidewalk
Red Spray Paint Industrial Metal Floor Grates Welded Bar For Construction And Sidewalk
Red Spray Paint Industrial Metal Floor Grates Welded Bar For Construction And Sidewalk
Red Spray Paint Industrial Metal Floor Grates Welded Bar For Construction And Sidewalk
Specifications
Brand Name :
TT
Model Number :
01
Certification :
ISO9001,CE
Place of Origin :
HeBei,China
MOQ :
100piece/pieces
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
25000piece per month
Delivery Time :
5-8days
Packaging Details :
Wooden Pallet/Steel Pallet Or As The Customar require
Application :
Floor,Walkway,platform,stair tread,bridge
Width :
according to your size
Usage :
Public Drain Area,bathroom,garge,Concrete Construction Support,balcony ect.
Length :
according to your size
Description

Red Spray Paint Metal Plain Welded Bar Steel Grating For Construction And Sidewalk

Product Description

Serrated Surface

The excellent self-cleaning characteristics of plain surface grating make it suitable for the majority of applications. In the presence of fluids or materials that could cause the top surface of the grating to become wet or slippery, specification of the optional serrated surface should be considered. When the serrated grating is specified, the bearing bar depth must be 1/4″ greater than the sizes shown on the load tables to provide the equivalent strength of non-serrated gratings.

Product Specification&Model

NO
1 Item Description
2 Bearing bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc.
3 Bearing bar pitch 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
4 cross bar pitch 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’requirement.
5 surface treatment Black, Hot dip galvanized, Cold dip galvanized, Painted, Powder coated, or as customers’ requirement.
6 flat bar type Plain, Serrated (tooth-like), I bar (I section)
7 Material Low carbon steel
8 crossbar 5x5, 6x6, 8x8mm


Product Details

The products are widely used in areas such as the oil and petrochemical industry, power and steel plant, port, shipyard, water and sewage treatment, municipal construction, ceiling, etc.

Type Platform Floor Galvanized Stainless Steel Grating
Color sliver
Material Stainless Steel
Surface treatment Hot Dipped Galvanized
Size Customized
Bearing bar thickness 3mm-10mm
Bearing bar width 30mm-100mm
Feature Easily assembled, durable

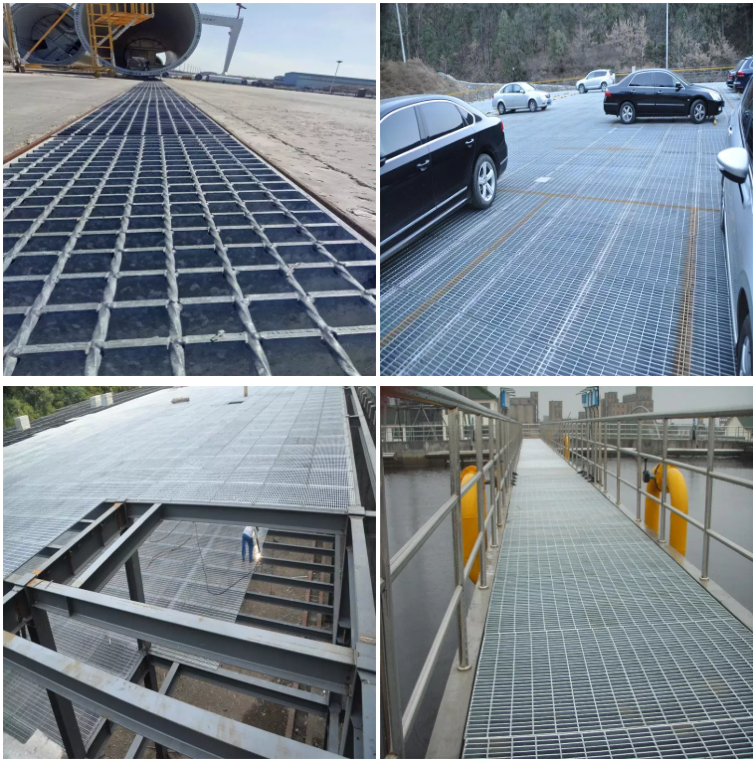

Applications

1) It can be used in urben construction as drainage trench cover to drain water and keep ground dry.

2) The serrated steel gratings will be used in the port, parking lot, farmland and other places to be walk platform for pedestrian and vehicles access and passing.

3) Forge-Welding gratings also will be used for industry platform, power plant, water treatment industry, tower platform, etc.

Red Spray Paint Industrial Metal Floor Grates Welded Bar For Construction And Sidewalk

Features:

1) The steel grating can reduce the supportive material, investment, save workman and time.

2) It can be used in almost all applications.

3) Lightweight and economical.

4) Low maintenance cost, because the surface will be galvanized, the anti-corrosion is 15~30 times than ungalvanized.

Steel grating advantage

Corrosion resistance, Rust resistance.

Anti-slip resistance, Good air circulation.

Good drainage performance, Easy to install and uninstall.

High strength-to-weight performance, Durable and long lifespan.
