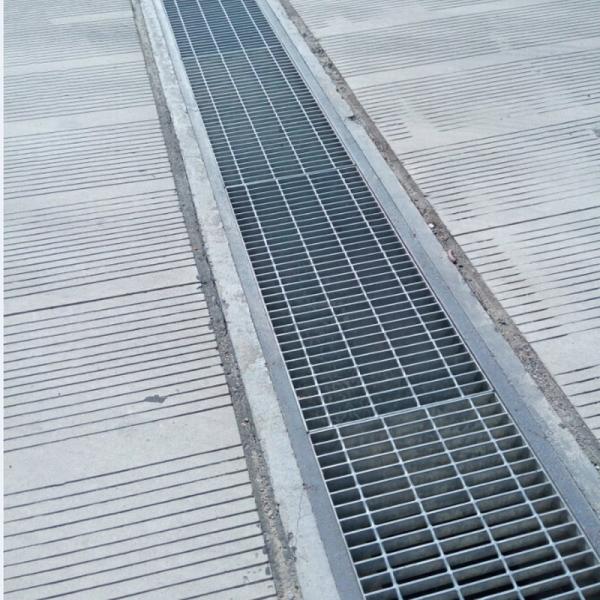

Hot Galvanized Grating Trench Cover For Car Parking
Hot Galvanized Grating Trench Cover For Car Parking
Hot Galvanized Grating Trench Cover For Car Parking
Hot Galvanized Grating Trench Cover For Car Parking
Specifications
Brand Name :
Zhuote
Model Number :
325/20/100
Certification :
ISO9001-2015
Place of Origin :
Hebei
MOQ :
50 piece
Price :
Can discuss
Payment Terms :
L/C, T/T
Supply Ability :
1000 Square meters/day
Delivery Time :
5 - 8work days
Packaging Details :
Steel belt packaging
Material :
Steel, Q235, q235 carbon steel, low carbon steel
Surface treatment :
Hot Dipped Galvanized, Painted, galvanized, Black, untreated
Thickness :
2mm-5mm, 5mm, 6mm, 2.0mm-5.0mm, 1.5mm~6mm
Cross bar pitch :
50mm, 50, As customers' requirement or 40, 38mm
Application :
Floor, Walkway, platform, stair tread, bridge
Feature :
Heavy, Easily assembled, Anti-sand, durable
Grating surface treatment :
Electro galvanizing, hot-dip galvanizing, spray paint, painting
Type :
Plain, Plain Bar Grating, I-shape, Serrated Bar Grating, serrated
Description

Hot galvanized trench drain car wash steel grating drainage cover for car parking

Product Description

1)Raw material :Low carbon steel, stainless steel, aluminum alloy

2)Types of Steel Grating:Plain/smooth type, I type ,Serrated/teeth type.

3)Cross bars shape: square bars, twisted square bars,round bars

4) Surface treatment: untreated(black), hot-dipped galvanized ,powder coated, electroplate,painting or as per customers' requirement.

5) Grating standard:TB/T4002,ANSI/NAAMM-MBG531,BS4592,AS1657,JS3101.

A. Material:

Low Carbon Steel or Stainless Steel

B.Surface Treatment:
Untreated, Painting or Hot Dipped Galvanizing

C.Specifications:

--Bearing Bar (Load Bar) Specifications (mm):

The specification of plain type and serrated type bearing bar is 20 x 3 to 100 x 10.

The specification of I-section type is 25 x 5 x 3, 32 x 5 x 3, 38 x 5 x 3, 40 x 5 x 3, 50 x 5 x 3, 50 x 7 x 4, 55 x 7 x 4, 60 x 7 x 4, 65 x 7 x 4, 70 x 7 x 4, 75 x 7 x 4, etc.

--Bearing Bar Pitch (center to center):
12.5, 15,25, 30, 30.16, 32.5, 34, 40, 41.25, 45, 50, 60, 60.32, 80, 100 mm etc, also be according to client's requirement and 30, 40, 60mm are recommended,
America standard is available <1' x 3/16', 1 1/4' x 3/16', 1-1/2' x 3/16', 1' x 1/4', 1-1/4' x 1/4', 1 1/2' x 1/4'(19-w-4),(19-w-2) and so on.>

--Cross Bar Pitch (center to center):
38, 50, 76, 100, 101.6mm etc, also be according to client's requirement and 50, 100mm are recommended, America standard is available.

Steel grating standards:

A. China: YB/T4001-1998

B. USA: ANSI/NAAMM (MBG 531-88)

C. UK: BS4592-1987

D. Australia: AS1657-1988

E: Japan: JIS

No. Item Description
1 Bearing bar

25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc

I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc

US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2 Bearing bar pitch

12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3 Cross bar 5*5,6*6,8*8mm(twisted bar or round bar)
4 Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
5 Material Grade

ASTM A36,A1011,A569,Q235,S275JR,SS304,SS400,

Mild steel & Low carbon steel,etc.
6 Surface Treatment Black, self colour, hot dip galvanized, painted, spray coating
7 Flat bar type Plain,Serrated(tooth-like),I bar (I section)
8 Standard

China:YB/T 4001.1-2007,USA:ANSI/NAAMM(MBG531-88),

UK:BS4592-1987,Australia:AS1657-1985,

Germany:DIN24537-1-2006,

Japan:JJS.

Professional Work shop of drainage trench cover steel grating

Steel bar grating is made by welding with Flat steel and Cross bars with certain distance. As we have more than 20 years experience, so we can guarantee the catwalk steel grating with good welding technique and heavy galvanized coating.We can supply our client high quality catwalk steel grating with best steel grating prices in the market.

Packaging for Steel Grating:

Our Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I.D. and quality information.

Hot Galvanized Grating Trench Cover For Car Parking

Hot Galvanized Grating Trench Cover For Car Parking

FAQ
1. who are we?
We are based in Hebei, China, start from 2013,sell to North America(35.00%),Domestic Market(23.00%),Africa(15.00%),Oceania(8.00%),Mid East(6.00%),Eastern Europe(5.00%),Eastern Asia(4.00%),Northern Europe(4.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Welded gabion mesh,chain link fence,stainless steel wire mesh,wedge wire screen,stainless steel conveyor belt

4. why should you buy from us not from other suppliers?
We have fully automatic welding equipment taking the place of the original manual welding machines and leading domestic CAD wire mesh designing system,which can provide users with accurate product drawings and installation drawings.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Russian

We will provide high quality products and services to customers around the world.
Looking forward to cooperation with you. Welcome to have a visit to us at any time.
Our Services

1.We supply the pictures to customers

2.Any inquiries will be repled within 12 hours

3.Peofessional manufacturer

4.High quality,resonable,competitive price,fast lead time.

5.Risk taking and responsibility is clear

6.we have our own factory

7.18years experience

8.good quality and competitive price

9.perfect team can supply best service

10.quickly reply and accurate quotation

11.Conveniently in transportation
