19w4 Heavy Duty Steel Grating Hot Dip Galvanized Walkway
19w4 Heavy Duty Steel Grating Hot Dip Galvanized Walkway
19w4 Heavy Duty Steel Grating Hot Dip Galvanized Walkway
19w4 Heavy Duty Steel Grating Hot Dip Galvanized Walkway
Specifications
Brand Name :
Zhuote
Model Number :
1008/30/100
Certification :
ISO9001-2015
Place of Origin :
Hebei
MOQ :
30
Price :
Can discuss
Payment Terms :
L/C, T/T
Supply Ability :
1000 Square meters/day
Delivery Time :
10 work days
Packaging Details :
Steel belt packaging
Application :
Protecting Mesh, Filters, Screen, Decoration, etc
Type :
Perforated Mesh, Welded Mesh, Expanded Mesh
Material :
Stainless Steel Wire, Aluminum, Galvanized Steel Wire, Nickel, etc
Weave style :
perforated, Plain Weave, punch, 60 degree
Color :
Silver, black, white, golden, gold
Thickness :
10MM
Description

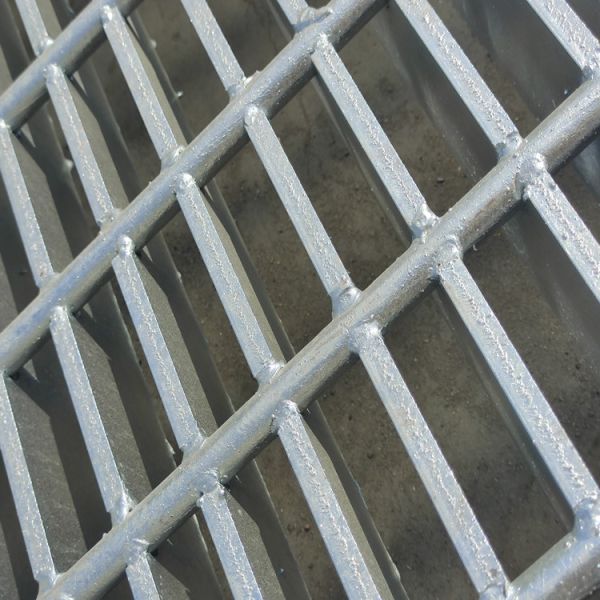

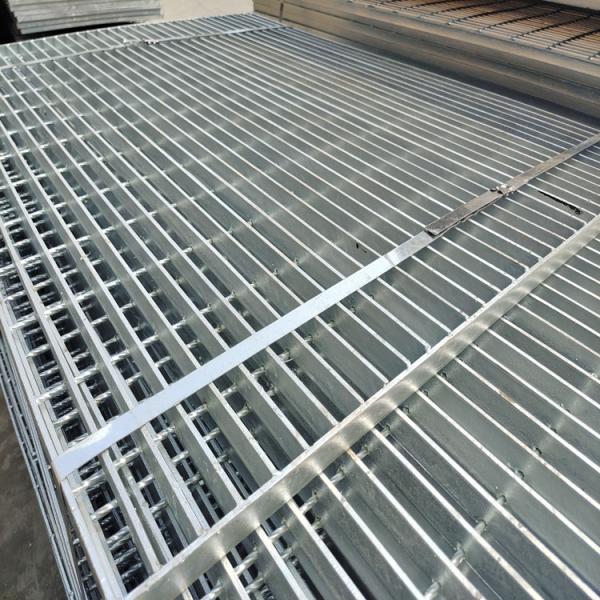

19w4 Hot dip galvanized heavy steel grating steel grating walkway

Product Parameters

1 Bearing bar: 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5, ...75x10mm
2 Bear bar pitch: 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 34.3, 35, 40, 41, 60mm. US standard: 1"x3/16", 1 1/4"x3/16", 1 1/2"x3/16", 1"x 1/4", 1 1/4"x 1/4", 1 1/2"x 1/4" etc.
3 Cross bar pitch :38, 50, 76, 100, 101.6mm
4 Material :Q235, A36, SS304
5 Surface treatment :Black, hot dipped galvanizing, paint

Welded Grating
Economical design ideal for most industrial applications. Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment. Available in carbon steel and stainless steel.
Dovetail Pressure Locked Grating
Assembled by inserting pre-punched bearing and cross bars into an "eggcrate" configuration and deforming the cross bars under intense hydraulic pressure. Available in all materials and ideal for many architectural and ornamental applications.

Application of Steel Floor Grating

1) It can be used in urben construction as drainage trench cover to drain water and keep ground dry.

2) The serrated steel gratings will be used in the port, parking lot, farmland and other places to be walk platform for pedestrian and vehicles access and passing.

3) Forge-Welding gratings also will be used for industry platform, power plant, water treatment industry, tower platform, etc.

4) Serrated steel gratings also be guardrail for garden, villa, balcony, highway, etc.

Product name *Steel grating
Material

*Mild steel (Carbon steel)

*stainless steel 304, SS316
Material standard

*USA:ASTM A36

*UK:BS4360

*Australia:AS3679

*China:Q235
Bearing bar type

*Smooth/flat bar

*serrated/toothed bar

*Smooth I bar

*Serrated I bar
Bearing bar thickness *2mm to 10mm, 3mm and 5mm recommended
Bearing bar pitch *12.5-30mm/40mm/50mm/60mm/80mm/90up,30and40mm recommended
Bearing bar specification

*flat bar and serrated bar 20*3,20*5,25*3,25*5,30*3,30*4,30*5,32*3,32*5,35*3,35*5,40*3,40*5,

45*5,50*3,50*5,55*5,60*5,65*5,70*6,75*6,75*8,80*8,90*8,100*8,

120*8,130*8,150*8

*I-section bar 25*5*3,32*5*3,38*5*3,44*5*3,50*5*3,50*7*4,55*7*4,60*7*4,

65*7*4,75*7*4
Cross bar *5*5mm,6*6mm,8*8mm
Cross bar pitch *30mm,38mm,50mm,76mm,100mm,50mm and 100mm recommended
Surface treatment

*Hot dipped galvanized

*Untreated(self-color)

*Painted
HDG standard

*ASTM A123

*BS729

*AS1650
Grating Standard

*AS1657-2013

*BS4592-2006

*ANSI/NAAMM(MBG531-88)

19w4 Heavy Duty Steel Grating Hot Dip Galvanized Walkway19w4 Heavy Duty Steel Grating Hot Dip Galvanized Walkway19w4 Heavy Duty Steel Grating Hot Dip Galvanized Walkway

Hebei Zhuote Wire Mesh Products Co., Ltd. as a manufacturer which is specializing in producing and exporting a complete series of steel grating and other wire mesh products. Our steel grating goods have various of kinds with different material, the mainly products are high, middle and low - carbon steel, stainless steel, aluminum steel grating. And have varous of style, for example platform steel grating, special steel grating, serrated steel grating, high duty steel grating, press locked steel grating and so on. With the development of our steel grating business, we have gradually improved our manufacturing expertise and engineering construction capabilities. As well as we also produce other wire mesh products, such as Fence, Expanded Metal Mesh, Reinforced Steel Mesh, Gabion Mesh, Chain link mesh and so on. The series of wire mesh are export to the Europe market, America, Middle East, Russia, Australia, Africa countries. We do custom manufacture and can supply a high quality OEM service for clients.

FAQ
1.How much about your annual production capacity?
More than 3000tons.
2.Can you provide free sample?
Yes,we can provide the sample of 20cm*20cm.
3. What is your terms of payment?
30% TT in advance and the balance paid before shipment, L/C at sight, you also can pay by West Union
4. What isthe delivery time?
Usually within 10days, customized order may need longer time.
5. Is there quality control on all production lines?
Yes,all production line have adequate quality control.
