Mild Steel Material No Finish Perforated Mesh Plate 12.7mm Staggered Centers
Mild Steel Material No Finish Perforated Mesh Plate 12.7mm Staggered Centers
Mild Steel Material No Finish Perforated Mesh Plate 12.7mm Staggered Centers
Mild Steel Material No Finish Perforated Mesh Plate 12.7mm Staggered Centers
Specifications
Brand Name :
TT
Model Number :
01
Certification :
ISO9001,CE
Place of Origin :
HeBei,China
MOQ :
100piece/pieces
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
25000piece per month
Delivery Time :
5-8days
Packaging Details :
Wooden Pallet/Steel Pallet Or As The Customar require
Material :
Stainless Steel Wire,Aluminum,Galvanized Steel Wire,etc
Application :
Protecting Mesh,Filters,Screen,Decoration
Packing :
Pallet,wooden box and pallet,free-fumigaton wooden box
Size :
requirement,Customized
Width :
0.5-2m / customer request
Feature :
Corrosion Resistance,High Temperature Resistance,anti-skidded,Heat-resistance
Description

Mild Steel Material No Finish 12.7mm Staggered Centers Perforated Metal Plate

Product Description

Mild steel perforated mesh is a perforated plate mesh product made of low carbon steel plate as raw material through CNC punching processing. The so-called low carbon steel, also known as soft steel, with a carbon content between 0.1% - 0.3%, its strength, and hardness are low, plasticity and toughness are good, not easy to break, easy to accept a variety of processing. Such as forging, welding, and cutting.



Product Specification&Model

Size Gauge Opening Area Hole Diameter Staggered Centre
48*96 20 37 .045 .066
48*96 22 41 1/16 3/32
48*96 20 23 1/16 1/8
48*96 22 35 5/64 1/8
48*96 18 35 5/64 1/8
48*96 16 38 .081 1/8


Unfinished End Pattern is standard:

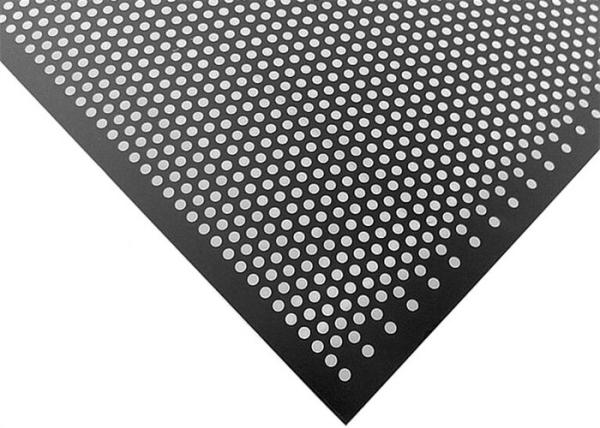

Staggered Perforations, both round and square – direction of the stagger will normally be the short dimension of the perforated sheet metal, as illustrated below. A straight row of holes is normally parallel to a long dimension of the sheet.

Slotted Perforations – the long dimension of the slots can be furnished parallel with either the width or length of the sheet in most cases.

Mild Steel Material No Finish Perforated Mesh Plate 12.7mm Staggered Centers

Margins

Perforated Stock Size Sheets -the long sides of the sheet will be supplied with minimum margins. The short sides of the sheet will have either minimum margins or no margins (See illustration above).

Sheets Re-sheared After Perforating -special margins are available to specifications but they must carry a tolerance within the limits of the perforating tool


Definitions:

QUANTITY State the number of perforated pieces, blanks, full sheets, or lineal feet of coil required.
PATTERN OF PERFORATION Specify “staggered” or “straight line”. Normally the straight row of a staggered pattern will run the long dimension of the sheet.
THICKNESS

Specify in gauge numbers or in decimal inches.
MATERIAL State kind of metal or plastic required.
WIDTH & LENGTH Unless otherwise specified, the length will be the long dimension of the sheet.
SIZE OF HOLE Specify the size in inches.

Details specific introduction:

Mild Steel Material No Finish Perforated Mesh Plate 12.7mm Staggered Centers


Typical applications :

It is often used in Natural Resources, Agricultural, and Manufacturing sectors for filtration and ventilation purposes, yet more and more it is being specced’d by interior designers and architects as a material for many residential and commercial construction projects.

1 Storage tanks
2 Food processing equipment
3 Chemical containers
4 Heat exchangers
