Description

Elbow is a common connection pipe in the installation of water heating. It is used for the connection at the bend of the pipe and to change the direction of the pipe. Connect two pipes with the same or different nominal diameter to make the pipes turn at 90 °, 45 °, 180 ° and various degrees.

Bending radius less than or equal to 1.5 times of pipe diameter is elbow, and greater than 1.5 times of pipe diameter is elbow. The 90 degree elbow size is generally calculated according to the known pipe diameter, and the bending radius is usually 1.5 times of the diameter. According to different models, 90 degree elbow size is different, and its length radius is also different.

Specification

Material: 10#,20#,A3,Q235A

Technology:Hot push, stamping, extrusion

Application: Petroleum, chemical industry

Characteristic

The larger the nominal diameter of the 90 degree elbow, the larger its size. To understand the specific data of 90 degree elbow size, you can find relevant data on the Internet or consult professionals.

Such as Φ 57 × 3.5, Φ 89 × 4.5, Φ 108 × 4.5, Φ 159 × 6, Φ 273 × 6, Φ 325 × 8. 90 degree elbows on the market are commonly used with r = 1.5D, and then r = 5D. They are also customized as required.There is not much difference between 90 degree elbow and 45 degree elbow. The biggest difference is the angle of elbow.

For example, if a right angle bend is required for pipeline routing, 90 degree elbow products are required. If only 45 degree bend is required, 45 degree elbow is selected. For the same project, if two 45 degree elbows are selected, the price list is more expensive than using one 90 degree elbow, which is not very cost-effective.90 degree bend forms a right angle, while a 45 degree bend is an obtuse angle.

Advantage

The joint has high strength and good ductility, which can give full play to the strength and ductility of the steel base material. The joint performance can meet the class I joint standard in jgj107-2003 and can be broken in the base metal.

The connection is convenient, fast and easy to operate.The detection is convenient and intuitive.The steel bar processing straight thread can be prefabricated, the sleeve can be factory produced, does not occupy the construction period, and the processing efficiency is high.

No electricity, no gas, no open fire operation, no oil leakage and no pollution during construction connection, all-weather construction is available.It has strong applicability and can be operated flexibly in the place where the reinforcement is arranged intensively in the narrow and small site.

Technical data sheet

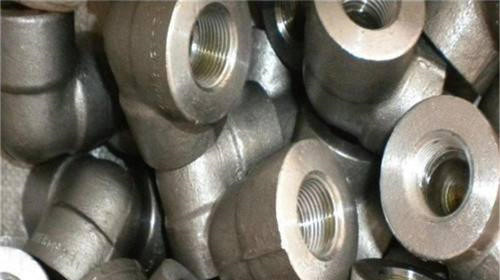

Astm Pipe Carbon Steel Threaded 90 Degree Elbow technical data sheet as below:

Package

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 25 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
