Specifications
Brand Name :
HDPE injection socket saddle type pipe fittings
Model Number :
LJ-PF089
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
1USD-100USD
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Product Name: :
HDPE injection socket saddle type pipe fittings
Material: :
PE100
Nominal outside diameter: :
50-630 mm
Color: :
black
Surface treatment :
mirror polished
Oem :
Acceptable
Description

Description


HDPE socket saddle type pipe fitting is one of PE pipe fittings, and its connection principle and process are basically the same as PE socket pipe fittings.For different PE saddle type pipe fittings, the following methods shall be used for fastening:

If the PE socket saddle type pipe fittings have semi-circular groove shaped lower fastener, the section with reinforcement edge shall be fastened with wooden or rubber hammer.Slide it along the pipe from one end of the saddle to the other.For PE saddle type socket fittings with fasteners, loosen the screws first to make it easy to hang the buckle when hanging the fastener belt.Then put in two screws until the two plastic parts of the fastening belt are in close contact.For saddle type pipe fittings with semi-circular lower fasteners and fastened with bolts, the metal gasket and bolts shall be installed according to the instructions.

Then tighten the four screws until the lower edge of the fastener and the upper edge of the saddle are close to the four bolts, leaving only the last thread.If there is no fastener, special saddle type positioning and clamping tool shall be used, and proper fixing method shall be carried out according to the tool instructions.

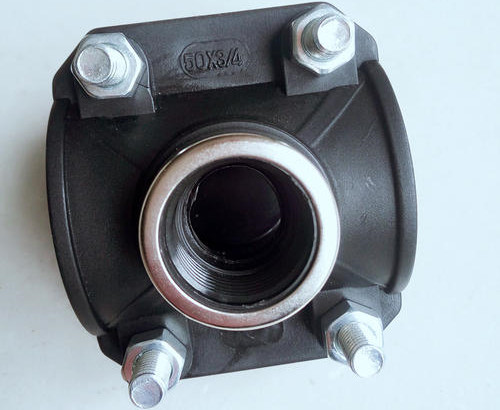

PE100 Piping Engineering Socket HDPE Saddle Fittings

Specification


Material: PE100

Nominal outside diameter:50-630 mm

Surface treatment: mirror polished

Application


It is used for tap water piping engineering (including indoor water supply and outdoor municipal water pipe) and water-saving irrigation piping engineering.It is used in piping engineering for construction. Well drilling engineering, piping engineering, mineral salt water transportation piping engineering, electrical piping engineering, etc.

It is also used in long-distance oil and gas pipeline transmission projects such as gas pipe, gas pipe, petrochemical industry and natural gas.It is used in oil fields, oil refineries, oil depots, power plants, chemical and petrochemical enterprises, water companies, municipal gas, seawater utilization pipelines and other fields.

Building water supply and drainage, urban and rural water supply and drainage, urban gas, electricity, industrial fluid transmission, agricultural irrigation and other construction, municipal, industrial and agricultural fields.Heating, marine engineering, railway, mining and other industries on various pipelines and equipment.

PE100 Piping Engineering Socket HDPE Saddle Fittings

Technical data sheet


PE100 Piping Engineering Socket HDPE Saddle Fittings technical data sheet as below:

Specifications Single weight with iron ring / g Packing list (PCs.)
20*1/2 68.1 400
25*1/2 78.3 320
25*3/4 76.4 320
32*1/2 88.7 300
32*3/4 88.7 300
32*1 95.2 240
40*1/2 168.6 180
40*3/4 166.7 180
40*1 173.6 180
50*1/2 185.9 140
50*3/4 183.9 140
50*1 200.7 140
50*11/4 203.3 120
63*1/2 198.0 120
63*3/4 196.3 120
63*1 207.0 120
63*11/4 322.3 90
63*11/2 326.9 90
75*1/2 266.1 80
75*3/4 263.9 80
75*1 269.7 80
75*11/4 398.7 54
75*11/2 406.7 54
75*2 431.9 54
90*1/2 299.3 70
90*3/4 293.7 70
90*1 306.6 70
90*11/4 484.2 45
90*11/2 484.6 45
90*2 513.5 45
110*1/2 380.9 54
110*3/4 375.5 54
110*1 388.3 54
110*11/4 555.7 36
110*11/2 573.2 36
110*2 606.2 36

Package


a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time


Our Steel flat factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
