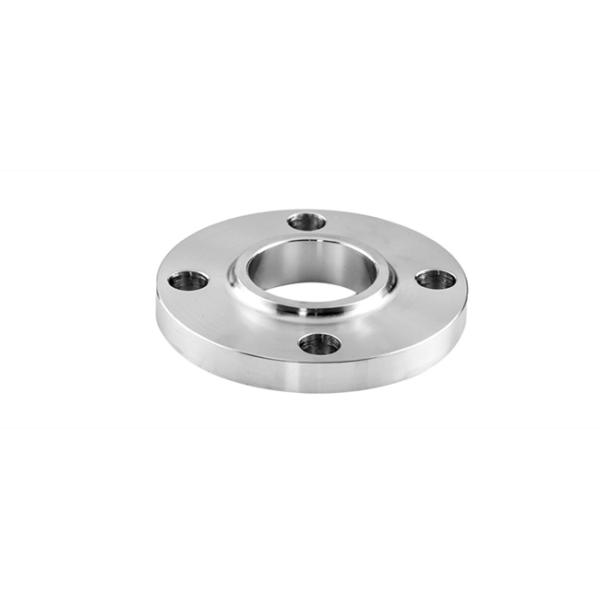

astm a182 3/8 Stainless Steel Flanges 316 SS Pipe Fittings
astm a182 3/8 Stainless Steel Flanges 316 SS Pipe Fittings
Specifications
Brand Name :
Stainless steel flange
Model Number :
LJ-PF423
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Product Name :
Stainless steel flange
Material :
Stainless Steel
Connection :
Welding
Technics :
Forged
Shape :
Equal
Size :
3/4'',40mm,1/8' ~ 6'
Color :
Silver
Application :
Connect Pipes,oil,gas and so on
Standard :
DIN,BSP,ANSI,GB/T10002.2-2003
Usage :
Pipe clamp,Convey Water Gas Oil
Description

316 ss pipe fittings Stainless steel flange

Description of Stainless steel flange

Stainless steel flange has good metal properties and strong corrosion resistance, it is usually used in steel structure, the metal surface of stainless steel flange is smooth, not easy to be oxidized by air; therefore, it is often used in high-pressure water pipe and corrosive pressure pipe, and has excellent performance. The stainless steel flange can be passivated with oxidant, thus forming a tough and dense chromium rich oxide protective film Cr2O3 on the surface, which can effectively prevent further oxidation reaction of the stainless steel flange.

Technical data sheet of Stainless steel flange

316 ss pipe fittings Stainless steel flange technical data sheet as below:

inch Nominal diameter 10kg=l. 0MPa
outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness
3/8 DN10 50 60 14 4 14
1/2 DN15 59 65 14 4 14
3/4 DN20 105 75 14 4 16
1 DN25 115 85 14 4 16
1¼ DN32 140 100 18 4 18
1½ DN40 150 110 18 4 18
2 DN50 165 125 18 4 20
2½ DN65 185 145 18 4 20
3 DN80 200 160 18 8 20
3½ DN100 220 180 18 8 22
4 DN125 250 210 18 8 22

Specification:

Nominal diameter 16kg=l. 6MPa
outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness
DN10 90 60 14 4 14
DN15 95 65 14 4 14
DN20 105 75 14 4 16
DN25 115 85 14 4 16
DN32 140 100 18 4 18
DN40 150 110 18 4 18
DN50 165 125 18 4 20
DN65 185 145 18 4 20
DN80 200 160 18 8 20
DN100 220 180 18 8 22

Specification of Stainless steel flange

Size:3/4'',40mm,1/8' ~ 6'

Application:Connect Pipes,oil,gas and so on

Standard:DIN,BSP,ANSI,GB/T10002.2-2003

Characteristic of Stainless steel flange

Stainless steel flange is used for water pipe, which has no restriction on the chemical composition of water; because stainless steel has good corrosion resistance in water with different oxygen content, temperature, pH and hardness. Stainless steel water pipes can withstand high flow rate; even if the flow rate exceeds 40 m / s, they still maintain a very low corrosion rate of no more than 0.003 mm / year, which is especially suitable for high-rise water supply.

Package of Stainless steel flange

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time of Stainless steel flange

Our Steel flat factory have high ability for production, the delivery time is 30 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.

astm a182 3/8
