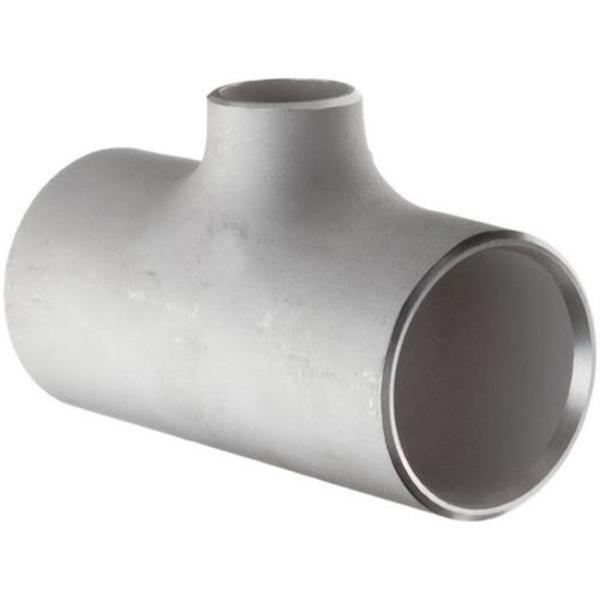

GB Hydraulic Steel Pipe Tee SS Socket Weld Fittings
GB Hydraulic Steel Pipe Tee SS Socket Weld Fittings
Specifications
Brand Name :
Stainless steel tee
Model Number :
LJ-PF340
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Product Name :
Stainless steel tee
Standard :
GB / ANSI /JIS / DIN
Size :
1/8' ~ 6'
Material :
Stainless Steel
Application :
gas and so on
Packing :
Standard Packing
Description

SS Socket Weld Fittings Stainless steel tee

Description

Stainless steel tee is a kind of pipe fittings used for branch pipe. At present, the manufacturing process of seamless pipe tee joint includes hydraulic expansion and hot pressing. The hydraulic expansion of stainless steel tee is a forming process, in which the branch pipe expands by axial compensation of metal material.

Technical data sheet

SS Socket Weld Fittings Stainless steel tee technical data sheet as below:

Nominal Diameter Outside Diameter Center to End
D1 D2
DN NPS Series A Series B Series A Series B C M
15x15x15 1/2x1/2x1/2 21.3 18 21.3 18 25 25
15x15x10 1/2x1/2x3/8 21.3 18 17.3 14 25 25
15x15x8 1/2x1/2x1/4 21.3 18 13.7 10 25 25
20x20x20 3/4x3/4x3/4 26.9 25 26.9 25 29 29
20x20x15 3/4x3/4x1/2 26.9 25 21.3 18 29 29
20x20x10 3/4x3/4x3/8 26.9 25 17.3 14 29 29
25x25x25 1x1x1 33.7 32 33.7 32 38 38
25x25x20 1x1x3/4 33.7 32 26.9 25 38 38
25x25x15 1x1x1/2 33.7 32 21.3 18 38 38
32x32x32 1.1/4x1.1/4x1.1/4 42.4 38 42.4 38 48 48
32x32x25 1.1/4x1.1/4x1 42.4 38 33.7 32 48 48
32x32x20 1.1/4x1.1/4x3/4 42.4 38 26.9 25 48 48
32x32x15 1.1/4x1.1/4x1/2 42.4 38 21.3 18 48 48
40x40x40 1.1/2x1.1/2x1.1/2 48.3 45 48.3 45 57 57

Specification

Standard:GB / ANSI /JIS / DIN

Size:1/8' ~ 6'

Application:gas and so on

Characteristic

Stainless steel tee is a kind of hydraulic expansion process which needs a lot of equipment, so it is mainly used to produce stainless steel tee with standard wall thickness less than dn400. Suitable forming materials are stainless steel with relatively low cold work hardening trend, including some non-ferrous materials such as copper, aluminum and titanium.

Stainless steel tee can form tube extrusion deformation, which belongs to tensile deformation. If the coefficient is large, the neck at the end of the hole will contract and be damaged. Therefore, the main problem of extrusion is to avoid the crack at the end of the hole. This order is mainly limited by the data expansion rate of stainless steel.

Package

a. Plastic bubble bag package b.Wove bag package c.Pallet d. Customized.

Delivery time

Our Steel flat factory have high ability for production, the delivery time is 40 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
