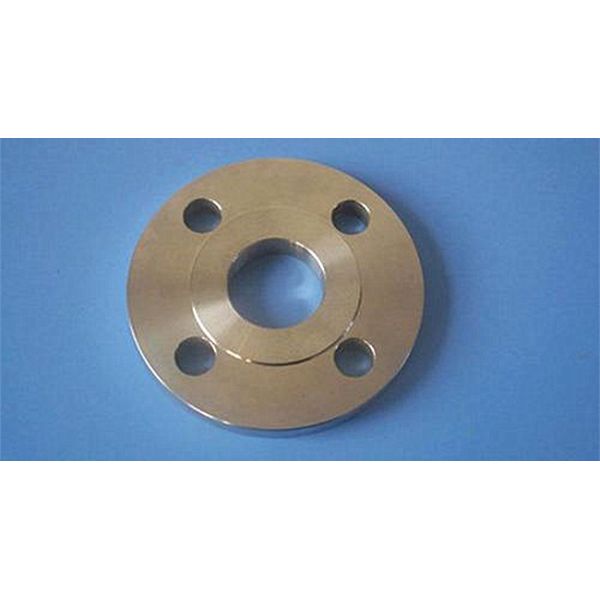

Joining Pipe Lines Carbon Steel Flanged Fittings
Joining Pipe Lines Carbon Steel Flanged Fittings
Specifications
Brand Name :
Carbon Steel Flange
Model Number :
LJ-PF335
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Product Name :
Carbon Steel Flange
Standard :
GB / ANSI /JIS / DIN
Material :
Carbon Steel
Technics :
butt weld
Size :
1/2"-48"
Usage :
Joining Pipe Lines
Description

Stainless steel flanged fittings Carbon Steel Flange

Description

The carbon steel flange has a strong usability, and its performance of connecting the pipeline and keeping the pipeline sealed is good. Using flange can not only realize the perfect connection between pipes, but also make it easier to replace and dismantle the pipes in the process of pipeline maintenance.

Carbon steel flange has a great impact on the mechanical industry, and also has a great contribution to the economic development. Therefore, attention has been paid to the development of flange, which gradually conforms to the development trend of modern industry and is in line with the international flange forging industry.

Technical data sheet

Stainless steel flanged fittings Carbon Steel Flange technical data sheet as below:

Nominal diameter 16kg=l. 6MPa
outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness
DN10 90 60 14 4 14
DN15 95 65 14 4 14
DN20 105 75 14 4 16
DN25 115 85 14 4 16
DN32 140 100 18 4 18
DN40 150 110 18 4 18
DN50 165 125 18 4 20
DN65 185 145 18 4 20
DN80 200 160 18 8 20
DN100 220 180 18 8 22
DN125 250 210 18 8 22
DN150 285 240 22 8 24
DN200 340 295 22 8 26

Specification

Standard:GB / ANSI /JIS / DIN

Size:1/2"-48"

Usage:Joining Pipe Lines

Characteristic

Carbon steel flange is a forging process. According to the form of forging die movement, forging can be divided into rotary forging, rotary forging, roll forging, cross wedge rolling, ring rolling and cross rolling. Among them, rotary forging, rotary forging and ring rolling can be processed by precision forging.

Flange production blank in cold forging, will produce deformation and work hardening phenomenon, will make the forging die bear a very high load, so in forging, we need to use high-strength forging die, and to prevent wear and adhesion of hard lubricating film to deal with.

Joining Pipe Lines Carbon Steel Flanged Fittings
