Galvanized Grade 5 8.8 M2-M20 SS Hex Head Bolts Zinc plated
Galvanized Grade 5 8.8 M2-M20 SS Hex Head Bolts Zinc plated
Galvanized Grade 5 8.8 M2-M20 SS Hex Head Bolts Zinc plated
Galvanized Grade 5 8.8 M2-M20 SS Hex Head Bolts Zinc plated
Specifications
Brand Name :
Stainless steel hexagon bolt
Model Number :
LJ-PF535
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Stainless Steel
Connection :
Welding
Technics :
Forged
Color :
Silver
Application :
Gas and general chemical service
Surface treatment :
Zinc plated
Description

Galvanized grade 5 8.8 m2-m20 Stainless steel hexagon bolt

Description

Stainless steel hexagon bolt is used for fastening and connecting two connected parts with through holes with nuts. It is a commonly used bolt.

The threads on the bolts are generally fine tooth ordinary threads, and the ordinary threads of the other ring gear have good self pinning performance. They are mainly used on thin-walled parts or under impact, vibration or alternating loads.

Specification

Finish: Plain,Zinc Plated
Color: black,color zinc,etc
Size: M2-M48 or as request
Grade: 4.8,8.8,12.8,A2,A4,T4,T6 etc
Material: Stainless steel (304, 316, 201)
Length: According to customer requirements

Technical data sheet

Galvanized grade 5 8.8 m2-m20 Stainless steel hexagon bolt​​​ technical data sheet as below:

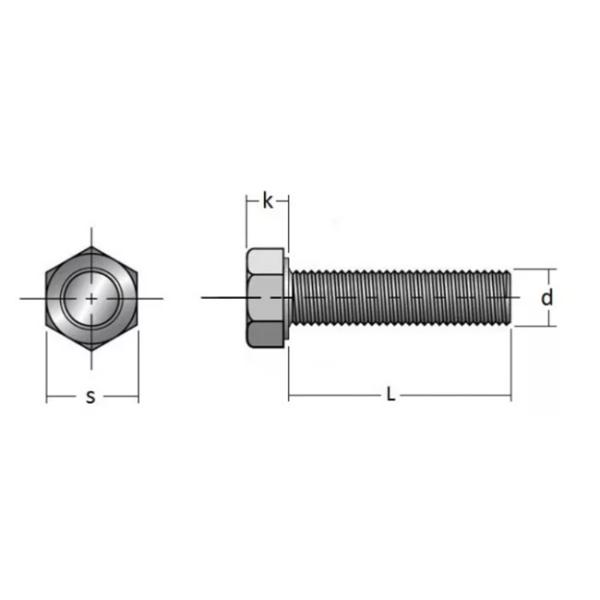

Galvanized Grade 5 8.8 M2-M20 SS Hex Head Bolts Zinc plated

Nominal Size d s k
Major Diameter Width Across Flats Head Height
Min. Max. Max. Min. Grade A Grade B
Grade A Grade B Min. Max. Min. Max.
M3 2.874 2.980 5.5 5.32 - 1.88 2.12 - -
M4 3.838 3.978 7 6.78 - 2.68 2.92 - -
M5 4.826 4.976 8 7.78 - 3.35 3.65 - -
M6 5.794 5.974 10 9.78 - 3.85 4.15 - -
M7 6.794 6.974 11 10.73 - 4.65 4.95 - -
M8 7.760 7.972 13 12.73 - 5.15 5.45 - -
M10 9.732 9.968 17 16.73 - 6.22 6.58 - -
M12 11.701 11.966 19 18.67 - 7.32 7.68 - -
M14 13.682 13.962 22 21.67 - 8.62 8.98 - -
M16 15.682 15.962 24 23.67 23.16 9.82 10.18 9.71 10.29
M18 17.623 17.958 27 26.67 26.16 11.28 11.72 11.15 11.85
M20 19.623 19.958 30 29.67 29.16 12.28 12.72 12.15 12.85

Characteristic

Stainless steel hexagon bolt are generally made into partial threads, and full thread bolts are mainly used for occasions requiring long threads.

It is often used in occasions requiring hexagon bolt locking. The bolt with reamed hole can accurately fix the position of the connected parts, and can withstand the shear and extrusion caused by the die force.

Application

Stainless steel hexagon bolt are used in industrial production, industrial buildings and railway tunnels;

Road and highway bridges, pipeline and highway bridges, tower and bow structures;

It can also be used for heating furnace structure, heating furnace steel frame structure and large span workshop;

High rise residential industrial buildings, various tower bodies, light steel structures, hoisting equipment, etc.

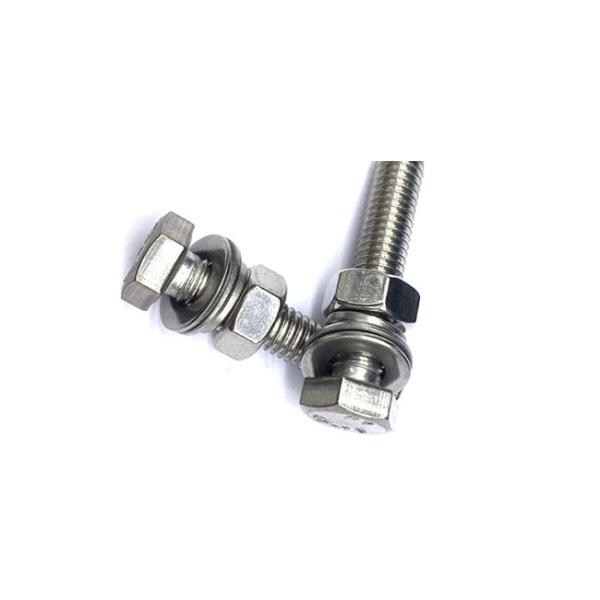

Product picture

Galvanized Grade 5 8.8 M2-M20 SS Hex Head Bolts Zinc plated
