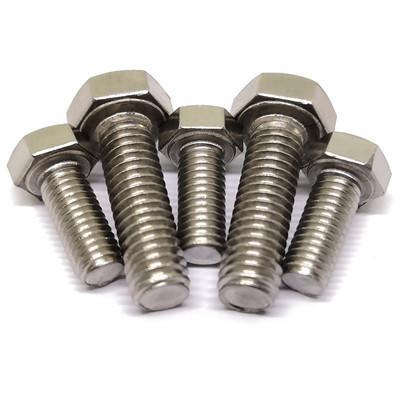

DIN933 DIN931 Industrial Steel Pipe Fittings M8 M10 Grade 8.8 10.9 Bolt High Strength
DIN933 DIN931 Industrial Steel Pipe Fittings M8 M10 Grade 8.8 10.9 Bolt High Strength
DIN933 DIN931 Industrial Steel Pipe Fittings M8 M10 Grade 8.8 10.9 Bolt High Strength
DIN933 DIN931 Industrial Steel Pipe Fittings M8 M10 Grade 8.8 10.9 Bolt High Strength
Specifications
Brand Name :
Bolt
Model Number :
LJ-PF532
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Stainless Steel
Surface treatment :
Zinc plated
Standard :
DIN,ANSI
Size :
M2-M48
Grade :
4.8, 8.8, 12.8
Color :
Silver
Description

DIN933 DIN931 high strength M8 M10 Grade 8.8 10.9 Bolt

Description

Bolt is a kind of mechanical part, which is a cylindrical fastener with thread used with nut.

It is composed of head and screw (cylinder with external thread), which shall be matched with nut to fasten and connect two parts with through holes.

This connection form is called bolt connection and belongs to removable connection.

Specification

Material: Stainless steel (304, 316, 201)
Standard: GB,DIN,BS,ISO,JIS,ANSI
Size: M2-M48 or as request
Length: According to customer requirements
Finish: Plain,Zinc Plated
Grade: 4.8,8.8,12.8,A2,A4,T4,T6 etc
Heat Treatment: Tempering,Hardening
Specification: Various head style

Technical data sheet

DIN933 DIN931 high strength M8 M10 Grade 8.8 10.9 Bolt​​​ technical data sheet as below:

DIN933 DIN931 Industrial Steel Pipe Fittings M8 M10 Grade 8.8 10.9 Bolt High Strength

d k e s
M 3 2 6.01 5.5
M 4 2.8 7.66 7
M 5 3.5 8.79 8
M 6 4 11.05 10
M 8 5.3 14.38 13
M 10 6.4 18.9 17
M 12 7.5 21.1 19
M 14 8.8 24.49 22
M 16 10 26.75 24
M 18 11.5 30.14 27
M 20 12.5 33.53 30

Characteristic

According to the stress mode of connection, it can be divided into ordinary and reamed holes.

According to the shape of the head: hexagonal, round, square, countersunk, etc.

The hexagonal head is the most commonly used. Generally, countersunk head is used for special connection.

Application

Bolts are used in electronic products, mechanical products, digital products, power equipment, electromechanical mechanical products. Ships, vehicles, water conservancy projects, etc.

DIN933 DIN931 Industrial Steel Pipe Fittings M8 M10 Grade 8.8 10.9 Bolt High Strength
