ANSI B16.5 150LBS Carbon Steel Threaded Flange ASTM A105
ANSI B16.5 150LBS Carbon Steel Threaded Flange ASTM A105
Specifications
Brand Name :
Carbon steel threaded flange
Model Number :
LJ-PF464
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Standard :
DIN,ANSI,GB/T
Size :
1/2''-72',1/2"-4 8"
Usage :
Joining Pipe Lines
Thickness :
STD,SCH80
Packing :
Wooden case or Pallet
Description

ANSI B16.5 150LBS ASTM A105 Carbon steel threaded flange

Description

Carbon steel threaded flange is the connecting pipe fitting of two large-diameter pipes. Usually, two flange plates are added with several fastening bolts. It has good plasticity and low strength. After adding an appropriate amount of carbon element, it will become hard, reduce plasticity and enhance strength.

Specification

Pressure:150-1500Lbs
Size:DN15 (1/2") to DN5000 (200")
Standard:ANSI, DIN, GB, ISO, ASME

Technical data sheet

ANSI B16.5 150LBS ASTM A105 Carbon steel threaded flange technical data sheet as below:

inch Nominal diameter 10kg=l. 0MPa
outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness
3/8 DN10 50 60 14 4 14
1/2 DN15 59 65 14 4 14
3/4 DN20 105 75 14 4 16
1 DN25 115 85 14 4 16
1¼ DN32 140 100 18 4 18
1½ DN40 150 110 18 4 18
2 DN50 165 125 18 4 20
2½ DN65 185 145 18 4 20
3 DN80 200 160 18 8 20
3½ DN100 220 180 18 8 22
4 DN125 250 210 18 8 22
5 DN150 285 240 22 8 24
6 DN200 340 295 22 8 24

Characteristic

Carbon steel threaded flange connection needs to bear high tensile, compressive, torsional and shear strength. It is convenient to obtain materials, simple to manufacture, low cost, widely used, but poor rigidity. Therefore, it shall not be used in chemical systems and hazardous occasions with flammable, explosive and high vacuum requirements.

Application

Carbon steel threaded flange is widely used in water conservancy, electric power, power station, pipeline fittings, industry, pressure vessel and other industries.

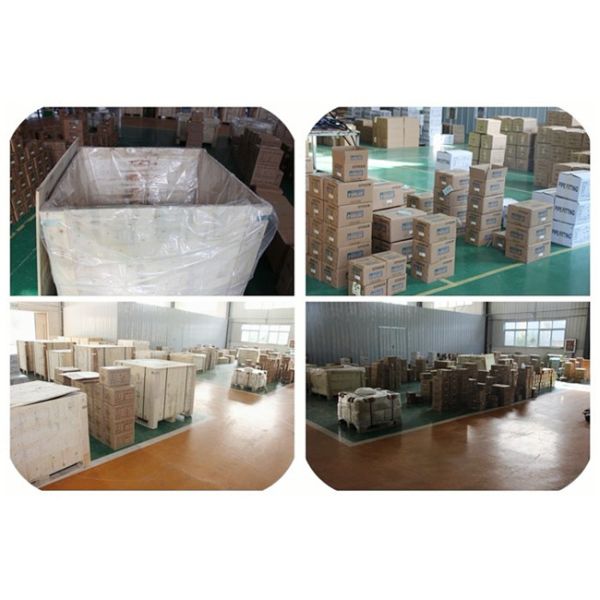

Package

ANSI B16.5 150LBS Carbon Steel Threaded Flange ASTM A105

Delivery

ANSI B16.5 150LBS Carbon Steel Threaded Flange ASTM A105
