ASME B16.47 SER.B API605 Carbon Steel Blind Flange CLASS150
ASME B16.47 SER.B API605 Carbon Steel Blind Flange CLASS150
Specifications
Brand Name :
Carbon steel blind flange
Model Number :
LJ-PF467
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Size :
1/2"-4 8",1/2' ~ 6'
Standard :
DIN,JIS,ANSI,ASME,GB
Usage :
Joining Pipe Lines
Thickness :
STD,SCH80
Packing :
Wooden Case
Description

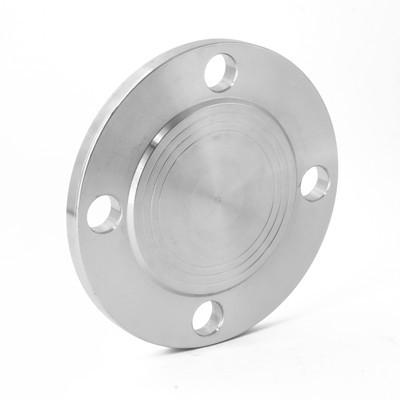

ASME B16.47 SER.B API605 CLASS150 Carbon steel blind flange

Description

Carbon steel blind flange is a flange without hole in the middle, which is used to seal the pipe plug. The function is the same as that of welded head and threaded pipe cap, except that blind flange and threaded pipe cap can be removed at any time, while welded head cannot.

Carbon steel blind flange is easy to use and can withstand large pressure. Carbon steel blind flange is widely used in industrial pipeline. In the family, if the pipe diameter is small and low pressure, the blind flange is not commonly used, but the threaded pipe cap is used.

Specification

Diameter: DN15-DN600

Nominal pressure: PN10-PN16

Product material: 20#, 16Mn, 304,316

Technical data sheet

ASME B16.47 SER.B API605 CLASS150 Carbon steel blind flange technical data sheet as below:

inch Nominal diameter 16kg=l. 6MPa
outer diameter Bolt hole distance Bolt diameter Bolt hole number Flange thickness
3/8 DN10 90 60 14 4 14
1/2 DN15 95 65 14 4 14
3/4 DN20 105 75 14 4 16
1 DN25 115 85 14 4 16
1¼ DN32 140 100 18 4 18
1½ DN40 150 110 18 4 18
2 DN50 165 125 18 4 20
2½ DN65 185 145 18 4 20
3 DN80 200 160 18 8 20
3½ DN100 220 180 18 8 22
4 DN125 250 210 18 8 22
5 DN150 285 240 22 8 24
6 DN200 340 295 22 8 26
8 DN250 405 355 26 12 29

Application

Carbon steel blind flange is mainly used in boiler and pressure vessel, petroleum, chemical industry, shipbuilding, pharmacy, metallurgy, machinery, food and other industries.

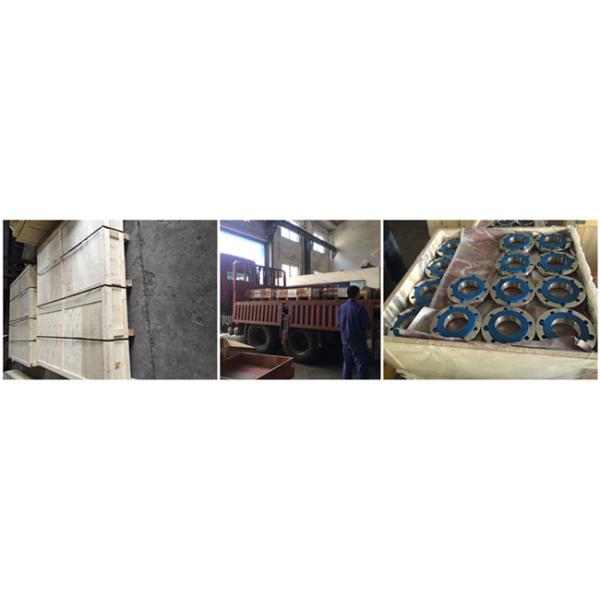

Package

ASME B16.47 SER.B API605 Carbon Steel Blind Flange CLASS150

Delivery

ASME B16.47 SER.B API605 Carbon Steel Blind Flange CLASS150

Product tags

dn50 pn10 steel flange

,

astm a105 carbon steel flange

,

astm a350 lf2 steel flange
