ANSI B16.5 A105 Stainless Steel Pipe Fittings Socket Welding Flange
ANSI B16.5 A105 Stainless Steel Pipe Fittings Socket Welding Flange
Specifications
Brand Name :
Socket welding flange
Model Number :
LJ-PF452
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
SS304 SS316L
Technics :
Butt weld
Standard :
DIN,ANSI,ASTM,JIS,GB
Size :
1/2' ~ 6'
Application :
Connect Pipes
Packing :
Carton /Wooden Box
Description

ANSI B16.5 A105 Stainless Steel Flanges Socket welding flange

Description

Socket welding flange has the same basic shape as the flat welding flange with neck. A socket is opened in the inner hole of the flange, the pipe is inserted into the socket and welded, and the weld ring is welded on the back of the flange. The gap between the flange and the pipe is easy to be corroded. If it is welded inside, the corrosion can be avoided.

Socket weld flange, The fatigue strength is 5% higher than that of flat welded flange, and the static strength is the same. When socket welding flanges are used, their inner diameter must match the inner diameter of the pipe. Socket flanges are only applicable to pipes with a nominal diameter of 50 or less.

Specification

Diameter: DN15 - DN80
Material: 304, 304L, 316, 316L
Pressure: 1.0MPa - 10MPa
Standards: ASTM / ANSI, ISO, DIN

Technical data sheet

ANSI B16.5 A105 Stainless Steel Flanges Socket welding flange technical data sheet as below:

Specification ØD d1 d2 T H L S-Ød3
DN15 95 24.5 38 3 11.5 65 4-Ø14
DN20 105 30.5 48 3 14 75 4-Ø14
DN25 115 37.5 S3 3 16 85 4-Ø14
DN32 140 47 68 3 16.5 100 4-Ø18
DN40 150 55 77 4 17.5 110 4-Ø18
DN50 165 66 91 4 19.5 125 4-Ø18
DN65 185 82 108 4 21 145 4-Ø18
DN80 200 95 123 5 22 160 8-Ø18

Characteristic

Socket welding flange has good rigidity, small welding deformation and good sealing performance. It can be used for occasions with pressure of 1.0 ~ 10.0MPa and occasions with high sealing requirements. During design, socket welding flange can be checked as integral flange.

Application

Socket welding flange is mainly used in boiler and pressure vessel, petroleum, chemical industry, shipbuilding, pharmacy, metallurgy, machinery, stamping elbow, food and other industries.

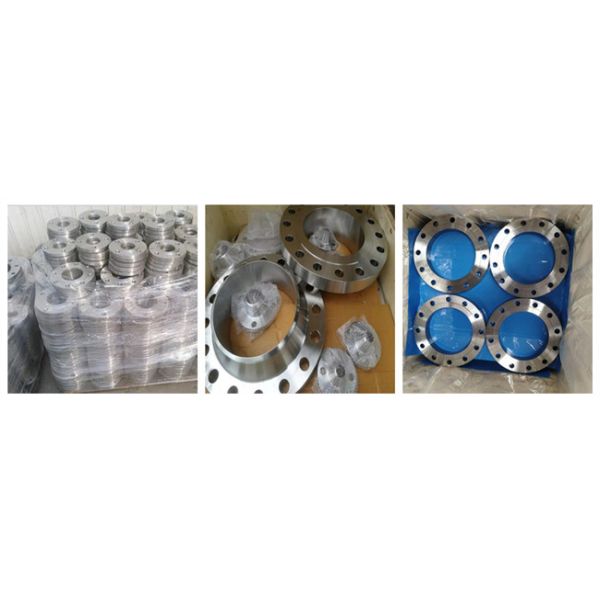

Package

ANSI B16.5 A105 Stainless Steel Pipe Fittings Socket Welding Flange

Delivery

ANSI B16.5 A105 Stainless Steel Pipe Fittings Socket Welding Flange

Product tags

dn15-dn2000 stainless steel pipe flange

,

socket weld pipe fittings

,

astm a105 socket welding flange
