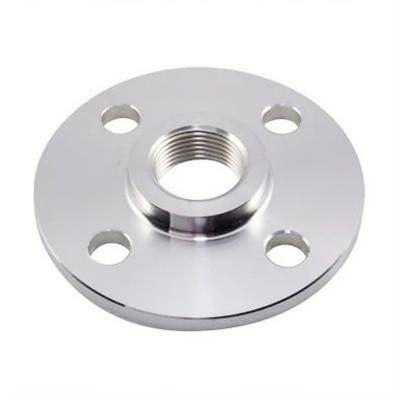

ANSI B16.5 Class 300 Stainless Steel Threaded Flange DN10-DN2000
ANSI B16.5 Class 300 Stainless Steel Threaded Flange DN10-DN2000
Specifications
Brand Name :
Threaded flange
Model Number :
LJ-PF451
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
stainless steel
Connection :
threaded connection
Size :
DN10-DN2000
Standard :
ANSI,ASME,JIS,DIN,BS
Usage :
Joining Pipe Lines
Packing :
In wooden cases or pallets
Description

ANSI b16.5 Class 300 Stainless Steel Flanges Threaded flange

Description

Threaded flange is a connecting part between pipe ends. It is also used in the threaded flange at the inlet and outlet of equipment for the connection between two equipment.
Threaded flanges are used in pairs. Threaded flanges can be used for low-pressure pipelines, and welded threaded flanges can be used for pressures above 4kg. A sealing gasket shall be added between the two threaded flanges, and then fastened with bolts.

Specification

Diameter: DN15-DN3500
Material: 304, 304L, 316, 316L
Pressure: 1.6MPa-6.3MPa
Standards: ASTM / ANSI, ISO, DIN

Technical data sheet

ASTM A105 Stainless Steel Flanges Flat welding flange technical data sheet as below:

FORI / BOLTING
DNRpDKLN°SIZEC2H1N2R1
103/87550114M101220254
151/28055114M101220304
203/49065114M101424404
251"10075114M101424504
321"1/412090144M121426606
401"1/2130100144M121426706
502"140110144M121428806
652"1/2160130144M1214321006
803"190150184M1616341108
1004"210170184M1616401308

Characteristic

Threaded flange has the characteristics of ruggedness, simple maintenance, high strength and wide application range. It is a very popular stainless steel flange product. It is one of the stainless steel flanges commonly used in equipment manufacturing, petrochemical industry, shipbuilding and nuclear power.

Package

ANSI B16.5 Class 300 Stainless Steel Threaded Flange DN10-DN2000

Application

Threaded flange is commonly used in equipment manufacturing, petrochemical industry, shipbuilding and nuclear power equipment. It has the functions of ventilation pipe connection, flange elbow, shipbuilding, pipe connection and so on.

Delivery

Our factory have high ability for production, the delivery time is 35 days for small quantity, or if you are hurry for that, we can arrange and meet your shipping date.
