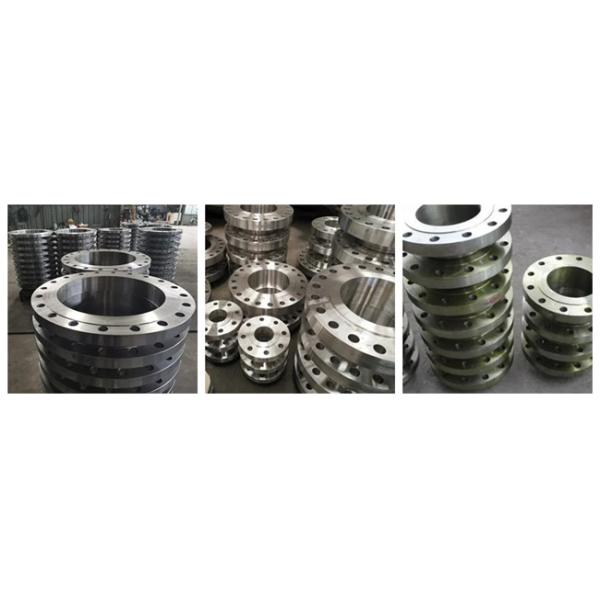

Astm B16.5 6 Inch Class 150 Butt Welding Flange High Pressure
Astm B16.5 6 Inch Class 150 Butt Welding Flange High Pressure
Specifications
Brand Name :
High pressure butt welding flange
Model Number :
LJ-PF457
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Stainless Steel
Connection :
Welding
Size :
1/8' ~ 6'
Application :
Connect Pipes
Standard :
DIN,ANSI,GB/T
Packing :
Standard Packing
Description

Astm B16.5 6 Inch Class 150 High pressure butt welding flange

Description

High pressure butt welding flange has good market and application value. If it is used according to the corresponding ways and methods, it can avoid certain quality and function problems in use.

High pressure butt welding flange will have corresponding size reduction in use. The size reduction is due to the reduction of the diameter of the seal, which will reduce the section of the sealing surface. Secondly, the flange gasket has been replaced by the sealing ring to ensure that the sealing surface matches the sealing surface.

Specification

Diameter: DN15 - DN400
Material: SS304, SS316
Pressure:0.6 - 64Mpa
Standards: ASTM / ANSI, ISO, DIN

Technical data sheet

Astm B16.5 6 Inch Class 150 High pressure butt welding flange technical data sheet as below:

Nominal Pipe Size Out side Diameter O.D of Raised Face Hub Diameter at Bevel Diameter of Bore Thickness of Flange Min. Length Through Hub
D G E B t L
1/2 89 35.1 30.2 12.7 11.2 228.6
3/4 99 42.9 38.1 19.1 12.7 228.6
1 108 50.8 50.8 25 11.2 228.6
11/4 117 63.5 60.5 31.8 15.7 228.6
11/2 127 73.2 66.5 38.1 17.5 228.6
2 152 91.9 82.6 50.8 19.1 228.6
21/2 178 104.6 95.3 63.5 22.4 228.6
3 191 127.0 108.0 76 23.9 228.6
31/2 216 139.7 124.0 88.9 23.9 228.6
4 229 157 139.7 101.6 23.9 304.8
5 254 185.7 165.1 127.0 23.9 304.8

Characteristic

High pressure butt welding flange is suitable for pipe diameter φ 32-315mm pipe connection is a flange product with good process characteristics and performance, which can show good use value and function in use and overcome the shortcomings of traditional flange.

High pressure butt welding flange is the connecting device of two large-diameter pipes, usually two flange plates and several fastening bolts.

Application

High pressure butt welding flange has good corrosion resistance and oxidation resistance. It is widely used in chemical industry, chemical fertilizer, petroleum, medical machinery manufacturing and other fields.

Package

Astm B16.5 6 Inch Class 150 Butt Welding Flange High Pressure

Delivery

Astm B16.5 6 Inch Class 150 Butt Welding Flange High Pressure
