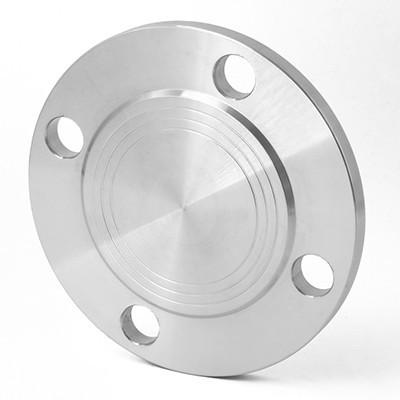

ASME B16.47 Series B A105n Lined Carbon Steel Flanges CLASS 900
ASME B16.47 Series B A105n Lined Carbon Steel Flanges CLASS 900
Specifications
Brand Name :
Carbon steel lined flange
Model Number :
LJ-PF483
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Connection :
Welding
Size :
1/2"-48"(DN15-DN1200)
Application :
gas,Connect Pipes,oil
Standard :
DIN,ANSI,ASME,GB
Packing :
Wooden case or Pallet
Description

ASME B16.47 Series B CLASS 900 A105n Carbon steel lined flange

Description

Carbon steel lined flange are used for pipe isolation, and are mostly produced by welding or rolling processes. The flanges produced by these two processes have certain restrictions on bearing pressure. When the working pressure reaches a certain limit, deformation or other faults will occur. Therefore, rolling and welding flanges can only work in an environment with relatively small pressure.

Specification

Specification: 1 / 2 "--- 72"

Standard:ASME/ANSI B16.5

Material: 10#, 20#, A3, Q235A

Pressure rating: PN 0.25 -- 42.0 MPa

Technical data sheet

ASME B16.47 Series B CLASS 900 A105n Carbon steel lined flange​ technical data sheet as below:

Nominal size Connection size Flange thickness Dimension of sealing surface lining thickness
Flange outer diameter Center circle diameter Bolt hole diameter Number of bolt holes d dl Convex surface
40 130 100 14 4 14 80 30 3 2
50 140 110 14 4 14 90 45 3 2
65 160 130 14 4 14 110 60 3 2
80 190 150 18 4 16 128 75 3 2
100 210 170 18 4 16 148 95 3 2
125 240 200 18 8 18 178 110 3 2
150 265 225 18 8 18 202 130 3 2
200 320 280 18 8 20 258 190 4 2
250 375 335 18 12 22 312 235 4 2
300 440 395 22 12 22 365 285 5 3
350 490 445 22 12 22 415 330 5 3

Characteristic

Carbon steel lined flange can be made into smooth, concave convex and tenon groove sealing surfaces. Smooth butt welding flange is widely used. It is mainly used in welding technology. It has good application characteristics and performance, reasonable structure, large strength and stiffness and good sealing.

Application

Carbon steel lined flange is mainly used in oil and gas pipeline engineering, natural gas pipeline engineering, chemical plant, power plant, shipyard, pharmacy, dairy, beer, beverage, water conservancy, etc.
