ASME B16.5 150 Lb Spectacle Blind Flange Stainless Steel
ASME B16.5 150 Lb Spectacle Blind Flange Stainless Steel
Specifications
Brand Name :
Stainless steel spectacle blind
Model Number :
LJ-PF486
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Connection :
Welding
Size :
1/8' ~ 6'
Application :
oil,gas and so on
Standard :
DIN,ANSI
Packing :
Standard Packing
Description

Stainless steel ASME B16.5 150 Lb Stainless steel spectacle blind

Description

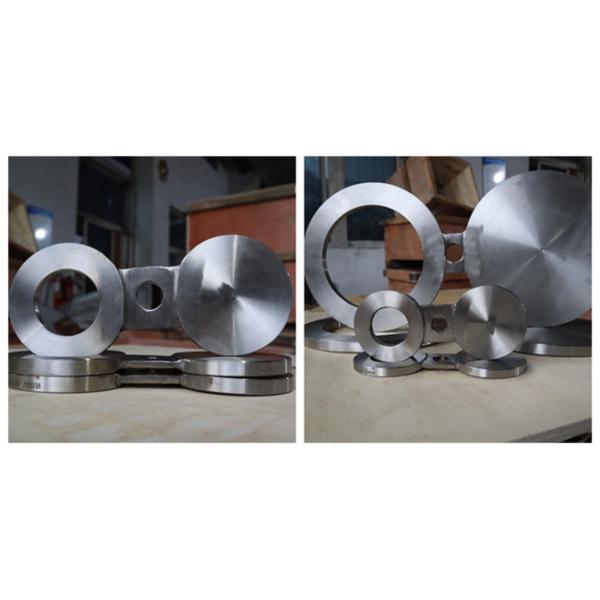

Stainless steel spectacle blind is used to isolate or connect the piping system. It is a steel plate divided into two discs. The two discs are connected by flat steel, one of which is a solid disc and the other is a hollow ring, and its inner hole diameter is consistent with the flange.

Specification

Material:304/304L/316/316L
Size:DN25/40/50/80/100/200
Standard:ANSI, DIN, GB, ISO, ASME
Usage:For Water,Oil and Gas Industry

Technical data sheet

Stainless steel ASME B16.5 150 Lb Stainless steel spectacle blind​ technical data sheet as below:

Chemical properties

Flange grade C Mn P S Si
F304L <0.03 <2.00 <0.045 <0.03 <1.00
Flange grade Cr Cu Mo Ni V
F304L 18.0-22.0 / / 8.0-13.0 <0.10

Mechanical Property

Flange grade psi Minimum ksi Minimum Percent% Shrinkage％
F304L >485 >170 >30 >50

Characteristic

Stainless steel spectacle blinds are usually located in the open position to allow fluid to pass through the pipe. When the spectacle blind is in the closed position, the pipeline is closed and the fluid is blocked. There is a drill hole in the connecting web of the spectacle blind plate. Loosen and disassemble some bolts, and the spectacle blind plate can rotate between flanges.

Application

Stainless steel spectacle blinds are widely used in petroleum, chemical industry, nuclear power plant, food manufacturing, construction, shipbuilding, papermaking, medicine and other industries.

Packing & Delivery

ASME B16.5 150 Lb Spectacle Blind Flange Stainless Steel
