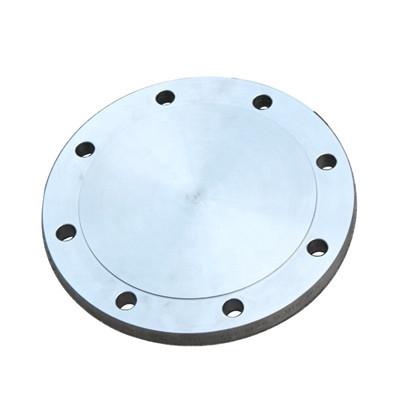

ANSI B16.5 Forged RF Carbon Steel Blind Flange DN100 Class 150
ANSI B16.5 Forged RF Carbon Steel Blind Flange DN100 Class 150
Specifications
Brand Name :
Carbon steel blind flange
Model Number :
LJ-PF481
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Connection :
Welding
Size :
1/8' ~ 6'
Application :
Connect Pipes
Standard :
DIN,ANSI,GB/T
Packing :
Standard Packing
Description

ANSI B16.5 Forged DN100 Class 150 RF Carbon steel blind flange

Description

Carbon steel blind flange is also called flange cover, and some are also called pipe plug. It is a flange without a hole in the middle, which is used to block the pipe opening. The function is the same as that of the head and pipe cap, except that the blind seal is a removable sealing device, and the seal of the head is not ready to be opened again.

Specification

Size:15mm-6000mm
Standard:ANSI, DIN, ASTM
Pressure:150#-2500# 5K-20K
Wall thickness:SCH 5s-SCH XXS

Technical data sheet

ANSI B16.5 Forged DN100 Class 150 RF Carbon steel blind flange​ technical data sheet as below:

Nominal diameter size(mm)
diameter D D1 Bolt hole diameter D2 f
10 90 60 14 41 2
15 95 65 14 46 2
20 105 75 16 56 2
25 115 85 16 65 3
32 140 100 18 76 3
40 150 110 18 84 3
50 165 125 20 99 3
65 185 145 20 118 3
80 200 160 22 132 3
100 220 180 24 156 3
125 250 210 26 184 3

Application

Carbon steel blind flange is not easy to deform, has good sealing and is widely used. It is suitable for pipelines with large fluctuation of pressure or temperature or pipelines with high temperature, high pressure and low temperature. The advantage is that the price is relatively cheap and the nominal pressure does not exceed 2.5MPa; It is also used in pipelines conveying expensive media.

Application

Carbon steel SW flange is widely used in chemical industry, construction, water supply, drainage, petroleum, fire protection, electric power, aerospace, shipbuilding and other basic projects.

Packing & Delivery

ANSI B16.5 Forged RF Carbon Steel Blind Flange DN100 Class 150
