ASTM A105 CLASS150 Carbon Steel Flanges Q235 DN80 PN16 PL Flange
ASTM A105 CLASS150 Carbon Steel Flanges Q235 DN80 PN16 PL Flange
Specifications
Brand Name :
Carbon Steel PL flange
Model Number :
LJ-PF473
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Connection :
Welding
Size :
3/4'',1/8' ~ 6'
Application :
Connect Pipes
Standard :
DIN,BSP,ANSI
Pressure :
PN2.5,PN10
Description

ASTM A105 CLASS150 Q235 DN80 PN16 Carbon Steel PL flange

Description

Carbon Steel PL flange refers to the connector whose body material is carbon steel flange or end flange. Flange materials include forging A105, or Q235B, 10#, 20#, A3 steel, Q345B, 45 steel, etc.

Specification

Size:1/2"-60"
Pressure:150#-2500#

Diameter range: dn15-dn1000

Product material: A105 16Mn 20#

Product features: corrosion resistance

Technical data sheet

ASTM A105 CLASS150 Q235 DN80 PN16 Carbon Steel PL flange technical data sheet as below:

DN Outer diameter
A1		 Connection size Flange thickness Flange inner diameter Groove width
Flange outer diameter K L n Th
A B A B
10 17.2 14 90 60 14 4 M12 14 18 15 4
15 21.3 18 95 65 14 4 M12 14 22.5 19 4
20 26.9 25 105 75 14 4 M12 16 27. 5 26 4
25 33.7 32 115 85 14 4 M12 16 34. 5 33 5
32 42.4 38 140 100 18 4 M16 18 43.5 39 5
40 48.3 45 150 110 18 4 M16 18 49.5 46 5
50 60.3 57 165 125 18 4 M16 19 61.5 59 5
65 76.1 76 185 145 18 8 M16 20 77.5 78 6
80 88.9 89 200 160 18 8 M16 20 90.5 91 6
100 114.3 108 220 180 18 8 M16 22 116 110 6
125 139.7 133 250 210 18 8 M16 22 143.5 135 6
150 168.3 159 285 240 22 8 M20 24 170.5 161 6
200 219.1 219 340 295 22 12 M20 26 221.5 222 8

Characteristic

Carbon Steel PL flange is produced according to the size and tolerance range required by national standards. Usually, in order to prevent rust, the flange surface will have electroplated layer (yellow zinc, white zinc, etc.), or be painted with antirust oil and sprayed with antirust paint.

Application

Carbon Steel PL flange is widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light and light industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and so on.

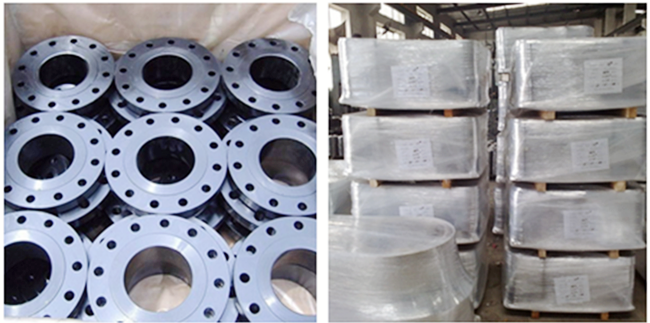

Package

ASTM A105 CLASS150 Carbon Steel Flanges Q235 DN80 PN16 PL Flange

Delivery

ASTM A105 CLASS150 Carbon Steel Flanges Q235 DN80 PN16 PL Flange
