ASME/BS B16.5 Carbon Steel WN Flange SCH40 SCH80 ASTM A105
ASME/BS B16.5 Carbon Steel WN Flange SCH40 SCH80 ASTM A105
Specifications
Brand Name :
Carbon steel WN flange
Model Number :
LJ-PF477
Certification :
ISO9001
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
Annual output 50000 tons
Delivery Time :
Depends on the quantity of goods
Packaging Details :
Export standard packaging
Material :
Carbon Steel
Size :
3/4'',1/8' ~ 6'
Connection :
Welding
Standard :
DIN,ANSI,ASTM,GB
Application :
Oil,Petroleum,Connect Pipes
Packing :
wooden case,Bags
Description

ASME/BS B16.5 SCH40 SCH80 ASTM A105 Carbon steel WN flange

Description

Carbon steel WN flange shall be welded on both inner and outer layers. It is generally used in medium and high pressure pipelines. The nominal pressure of the pipeline is between 0.25 ~ 2.5MPa.

Carbon steel WN flange adopts concave convex sealing surface connection, and the installation is complex, so the labor cost, installation method and auxiliary material cost are relatively high.

Specification

Strength: 0.6-2.5MPA

Diameter: DN15-DN400

Material: A105,16Mn, 20#
Standard:DIN, ASME, ASME B16.5

Technical data sheet

ASME/BS B16.5 SCH40 SCH80 ASTM A105 Carbon steel WN flange technical data sheet as below:

DN diameter Connection size Flange thickness
A B D K L M TH C
15 21.3 18 95 65 14 4 M12 14
20 26.9 25 105 75 14 4 M12 16
25 33.7 32 115 85 14 4 M12 16
32 42.4 38 140 100 18

4

 M16 18
40 48.3 45 150 110 18 4 M16 18
50 603 57 165 125 18 4 M16 20
65 76.1 76 185 145 18 4 M16 20
80 88.9 89 200 160 18 8 M16 20
100 114.3 108 220 180 18 8 M16 22
125 139.7 133 250 210 18 8 M16 22
150 168.3 159 285 240 22 8 M20 24
200 219.1 219 340 295 22 8 M20 24
250 273 273 395 350 22 12 M20 26

Characteristic

Carbon steel WN flange is not easy to deform, has good sealing and is widely used. It is suitable for pipelines with large fluctuation of pressure or temperature, high temperature, high pressure and low temperature pipelines, or for the connection of pipelines and valves greater than 2.5MPa.

Application

Carbon steel WN flange is mainly used in petroleum, chemical industry, shipbuilding, pharmacy, metallurgy, machinery, food and other industries.

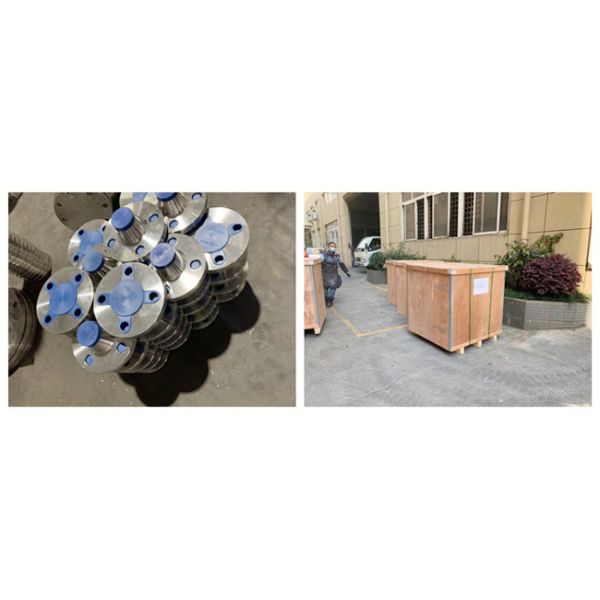

Exported Products Picture
